Analysis on the Sticking Failure of Micro-Comb Driving Structure

Abstract:

As an important part of MEMS, the micro-comb electrostatic driving structure is the main source of mechanical movement in many MEMS devices. Its reliability will directly affect the using performance of the MEMS devices. The electrostatic driving system of micro-comb capacitive micro-machined gyroscope can be equivalent to a second order system. If the applied voltage is less than the pull-in voltage, the movable micro-comb will maintain a steady state. Otherwise, the micro-combs will stick together because the applied voltage is greater than the calculated pull-in voltage. If the distance between micro-combs is too narrow, the role of these micro forces will be very significant. The pull-in phenomenon occurring in the process that the micro-machined gyroscope is applied on a phase step input voltage will lead to the very narrow comb spacing. As a result that the role of micro-forces such as the capillary force, Van der Waals force and Casimir force will become very significant, and the micro-combs will stick together permanently.

You might also be interested in these eBooks

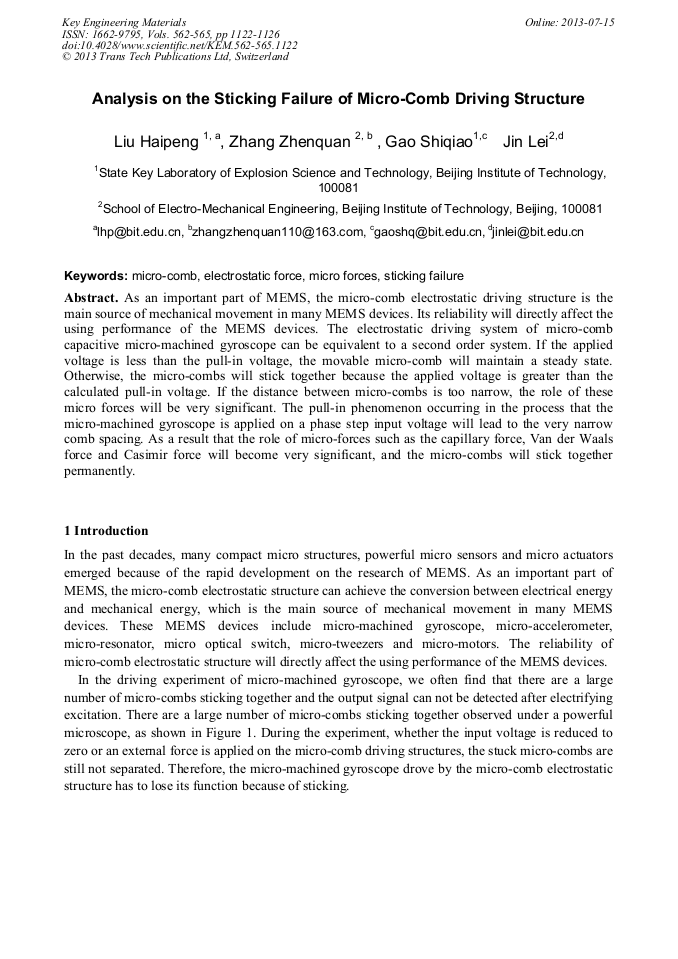

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 562-565)

Pages:

1122-1126

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.562-565.1122

Citation:

Cite this paper

Online since:

July 2013

Authors:

Hai Peng Liu, Zhen Quan Zhang, Shi Qiao Gao, Lei Jin

Keywords:

Electrostatic Force, Micro Forces, Micro-Comb, Sticking Failure

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Shiqiao Gao, Haipeng Liu. MEMS Mechanics[M].Beijing: Defense Industry Press, (2008)

Google Scholar

[2] Liu Fengli ,Hao Yongping. Study on the reliability of typical structures of electrostatic driving comb micro-machined gyroscope[J]. Journal of Detection & Control,2007,29(1): 72-75.

Google Scholar

[3] Wu Hui , Liu Litian , Yang Jingming. Research on electrostatic comb2drive structures. J of Tsinghua Univ (Sci &Tech)[J], 1999, 39:69-73. (in Chinese)

Google Scholar

[4] Liu Haipeng, Gao Shiqiao, Niu Shaohua, Jin Lei. The micro mechanical environment on the comb capacitive micro-machined gyroscope. Proceedings of International Symposium on:Smart Material and Nanotechnology[C]. v7493,2009, 142-147

DOI: 10.1117/12.839539

Google Scholar

[5] Liu, HP; Gao, SQ; Niu, SH; Jin, L. Analysis on the adhesion of micro-comb structure in MEMS. INTERNATIONAL JOURNAL OF APPLIED ELECTROMAGNETICS AND MECHANICS[J]. 2010,33: 979-984

DOI: 10.3233/jae-2010-1210

Google Scholar

[6] Stifter T, Marti O, Bhushan B. Theoretical investigation of the distance dependence of capillary and van der Waals forces in scanning force microscopy[J].2000, 62(20): 67-73.

DOI: 10.1103/physrevb.62.13667

Google Scholar
