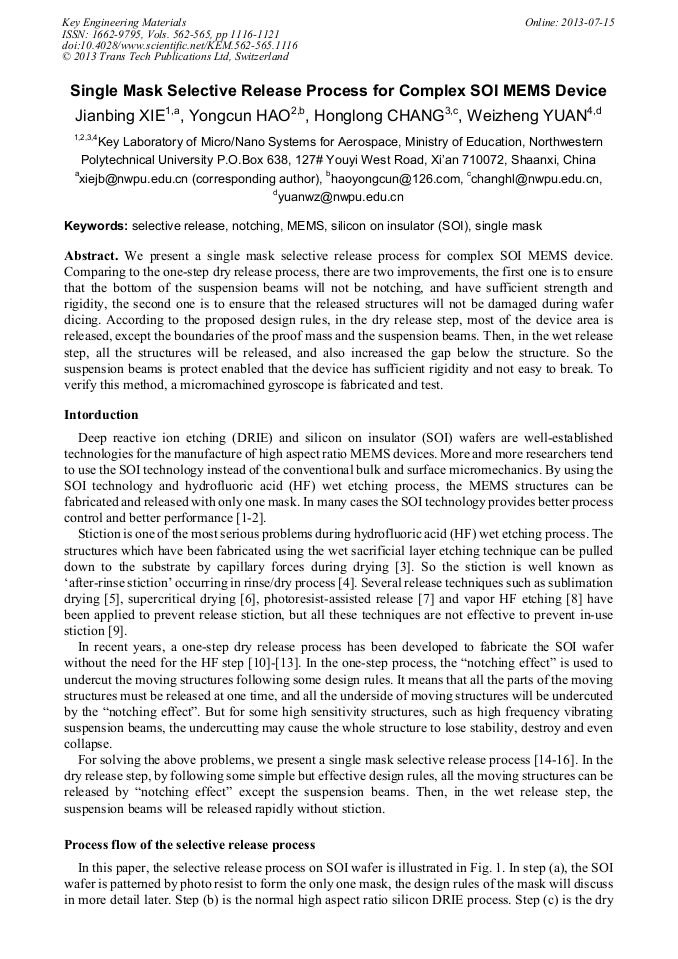

Single Mask Selective Release Process for Complex SOI MEMS Device

Abstract:

We present a single mask selective release process for complex SOI MEMS device. Comparing to the one-step dry release process, there are two improvements, the first one is to ensure that the bottom of the suspension beams will not be notching, and have sufficient strength and rigidity, the second one is to ensure that the released structures will not be damaged during wafer dicing. According to the proposed design rules, in the dry release step, most of the device area is released, except the boundaries of the proof mass and the suspension beams. Then, in the wet release step, all the structures will be released, and also increased the gap below the structure. So the suspension beams is protect enabled that the device has sufficient rigidity and not easy to break. To verify this method, a micromachined gyroscope is fabricated and test.

• Periodical: Key Engineering Materials (Volumes 562-565)
• Pages: 1116-1121
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.562-565.1116
• Online since: July 2013
• Authors: Jian Bing Xie, Yong Cun Hao, Hong Long Chang, Wei Zheng Yuan
• Keywords: MEMS, Notching, Selective Release, Silicon-on-Insulator (SOI), Single Mask

References

[1] Said Emre Alper, Kivanc Azgin and Tayfun Akin, "A high-performance silicon-on-insulator MEMS gyroscope operating at atmospheric pressure", Sensors and Actuators, A 135, 2007, p.34–42.

DOI: 10.1016/j.sna.2006.06.043

[2] Jingyan Dong, Deepkishore Mukhopadhyay and Placid M Ferreira, "Design, fabrication and testing of a silicon-on-insulator (SOI) MEMS parallel kinematics XY stage", J. Micromech. Microeng., vol. 17, 2007, p.1154–1161

DOI: 10.1088/0960-1317/17/6/008

[3] Niels Tas, Tonny Sonnenberg, Henri Jansen, Rob Legtenberg and Miko Elwenspoek, "Stiction in surface micromachining" J. Micromech. Microeng, vol. 6, 1996, p.385–397.

DOI: 10.1088/0960-1317/6/4/005

[4] Y. Matsumoto, T. Shimada and M. Ishida, "Novel prevention method of stiction using silicon anodization for SOI structure", Sensors and Actuators A72, 1999, p.153–159.

DOI: 10.1016/s0924-4247(98)00229-5

[5] C. -J. Kim, J. Y. Kim, B. Sridharan, "Comparative valuation of drying techniques for surface micromachining", Sensors and Actuators A 64, 1998, p.17–26.

DOI: 10.1016/s0924-4247(98)80053-8

[6] G. T. Mulhern, D. S. Soane, R. T. Howe, "Supercritical carbon dioxide drying of microstructures", in Proceedings of the Seventh International Conference on Solid-State Sensors and Actuators, 1990, p.296–299.

[7] D. Kobayashi, C. -J. Kim, H. Fujita, "Photoresist-assisted release of movable microstructures", Jpn. J. Appl. Phys. 32, 1993, p.1642–1644.

DOI: 10.1143/jjap.32.l1642

[8] J. H. Lee, W. I. Jang, C. S. Lee, Y. I. Lee, C. A. Choi, J. T. Baek, H. J. Yoo, "Characterization of anhydrous HF gas-phase etching with CH3OH for sacrificial oxide removal", Sensors and Actuators. A 64, 1998, p.27–32.

DOI: 10.1016/s0924-4247(98)80054-x

[9] Norio Fujitsuka and Jiro Sakata, "A new processing technique to prevent stiction using silicon selective etching for SOI-MEMS", Sens. Actuat. A 97-98, 2002, p.716–719.

DOI: 10.1016/s0924-4247(02)00009-2

[10] Volland B E, Heerlein H, Kostic I and Rangelow I W, "The application of secondary effects in high aspect ration dry etching for the fabrication of MEMS", Microelectron. Eng. 57–58, 2001, p.641–50.

DOI: 10.1016/s0167-9317(01)00496-8

[11] P. T. Docker, P. Kinnell, and M. C. L. Ward, "A dry single-step process for the manufacture of released MEMS structures", J. Micromech. Microeng., vol. 13, 2003, p.790–794.

DOI: 10.1088/0960-1317/13/5/335

[12] P. T. Docker, P. K. Kinnell, and M. C. L. Ward, "Development of the one-step DRIE dry process for unconstrained fabrication of released MEMS devices", J. Micromech. Microeng., vol. 14, 2004, p.941–944.

DOI: 10.1088/0960-1317/14/7/014

[13] Liu Haobing and Franck Chollet, "Layout Controlled One-Step Dry Etch and Release of MEMS Using Deep RIE on SOI Wafer", Journal of Microelectromechanical Systems, vol.15, 2006, p.541–547.

DOI: 10.1109/jmems.2006.876660

[14] Jianbing XIE, Weizheng YUAN, Honglong CHANG. The application of notching effect in one-step dry etch and release process for the fabrication of MEMS，Nanotechnology and Precision Engineering. Vol 8. 2010(2). pp.167-170.

[15] Jianbing XIE, Weizheng YUAN, Honglong CHANG. A novel method for the manufacture of MEMS devices with large exposed area based on SOI wafers, IEEE NEMS 2009. January 5-8, 2009, Shenzhen, China

DOI: 10.1109/nems.2009.5068571

[16] Honglong Chang, Jianbing Xie, Qianyan Fu, et al. Micromachined inertial measurement unit fabricated by a SOI process with selective roughening under structures. Micro & Nano Letters. Vol. 6. 2011(7), p.486–489

DOI: 10.1049/mnl.2011.0120
