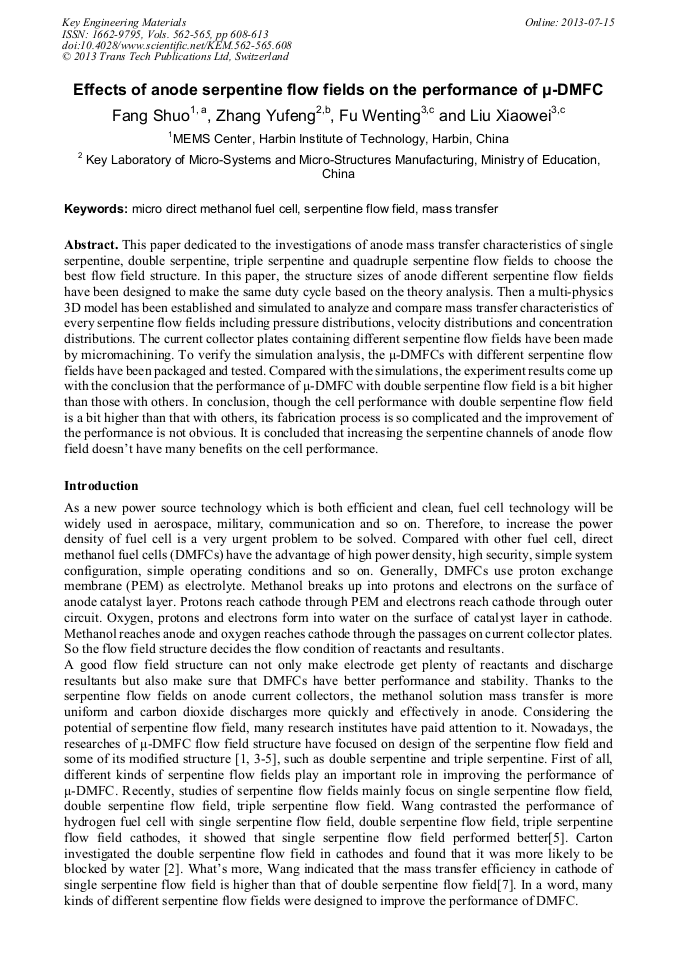

Effects of Anode Serpentine Flow Fields on the Performance of μ-DMFC

Abstract:

This paper dedicated to the investigations of anode mass transfer characteristics of single serpentine, double serpentine, triple serpentine and quadruple serpentine flow fields to choose the best flow field structure. In this paper, the structure sizes of anode different serpentine flow fields have been designed to make the same duty cycle based on the theory analysis. Then a multi-physics 3D model has been established and simulated to analyze and compare mass transfer characteristics of every serpentine flow fields including pressure distributions, velocity distributions and concentration distributions. The current collector plates containing different serpentine flow fields have been made by micromachining. To verify the simulation analysis, the μ-DMFCs with different serpentine flow fields have been packaged and tested. Compared with the simulations, the experiment results come up with the conclusion that the performance of μ-DMFC with double serpentine flow field is a bit higher than those with others. In conclusion, though the cell performance with double serpentine flow field is a bit higher than that with others, its fabrication process is so complicated and the improvement of the performance is not obvious. It is concluded that increasing the serpentine channels of anode flow field doesn’t have many benefits on the cell performance.

• Periodical: Key Engineering Materials (Volumes 562-565)
• Pages: 608-613
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.562-565.608
• Online since: July 2013
• Authors: Shuo Fang, Yu Feng Zhang, Wen Ting Fu, Xiao Wei Liu
• Keywords: Mass Transfer, Micro Direct Methanol Fuel Cell, Serpentine Flow Field

References

[1] Xiao-Dong Wang , Yuan-Yuan Duan, Wei-Mon Yan , Xiao-Feng Peng, Local transport phenomena and cell performance of PEM fuel cells with various serpentine flow field designs, J Power Sources. 175 (2008) 397–407

DOI: 10.1016/j.jpowsour.2007.09.009

[2] J.G. Carton, V. Lawlor , A.G. Olabi , C. Hochenauer , G. Zauner, Water droplet accumulation and motion in PEM (Proton Exchange Membrane) fuel cell mini-channels, Energy. 2011.

DOI: 10.1016/j.energy.2011.10.023

[3] D.H. Jeon, S. Greenway, S. Shimpalee, J.W. Van Zee, The effect of serpentine flow-field designs on PEM fuel cell performance, International Journal of Hydrogen Energy. 33 (2008) 1052-1066

DOI: 10.1016/j.ijhydene.2007.11.015

[4] Kenji Takada, Yuta Ishigami, Junji Inukai, Yuzo Nagumo, Hiroshi Takano, Hiroyuki Nishide, Masahiro Watanabe, Simultaneous visualization of oxygen distribution and water blockages in an operating triple-serpentine polymer electrolyte fuel cell, J Power Sources. 196 (2011) 2635-2639

DOI: 10.1016/j.jpowsour.2010.10.097

[5] Xiao-Dong Wang, Xin-Xin Zhang, Wei-Mon Yan, Duu-Jong Lee, Ay Su, Non-isothermal effects of single or double serpentine proton exchange membrane fuel cells, Electrochimica Acta. 55 (2011) 4926-4934

DOI: 10.1016/j.electacta.2010.03.092

[6] Rajesh Boddu, Uday Kumar Marupakula, Benjamin Summers, Pradip Majumdar, Development of bipolar plates with different flow channel configurations for fuel cells, J Power Sources. 189 (2009) 1083-1092

DOI: 10.1016/j.jpowsour.2008.12.156

[7] Sheng-Jun Wang , Wei-Wei Huo, Zhi-Qing Zou, Yong-Jin Qiao, Hui Yang, Computational simulation and experimental evaluation on anodic flow field structures of micro direct methanol fuel cells, Applied Thermal Engineering. 31 (2011) 2877-2884

DOI: 10.1016/j.applthermaleng.2011.05.013

[8] Xiao-Dong Wang, Yuan-Yuan Duan, Wei-Mon Yan, Duu-Jong Lee, Ay Su, Pei-Hung Chi, Channel aspect ratio effect for serpentine proton exchange membrane fuel cell: Role of sub-rib convection, J Power Sources. 193 (2009) 684-690

DOI: 10.1016/j.jpowsour.2009.04.019
