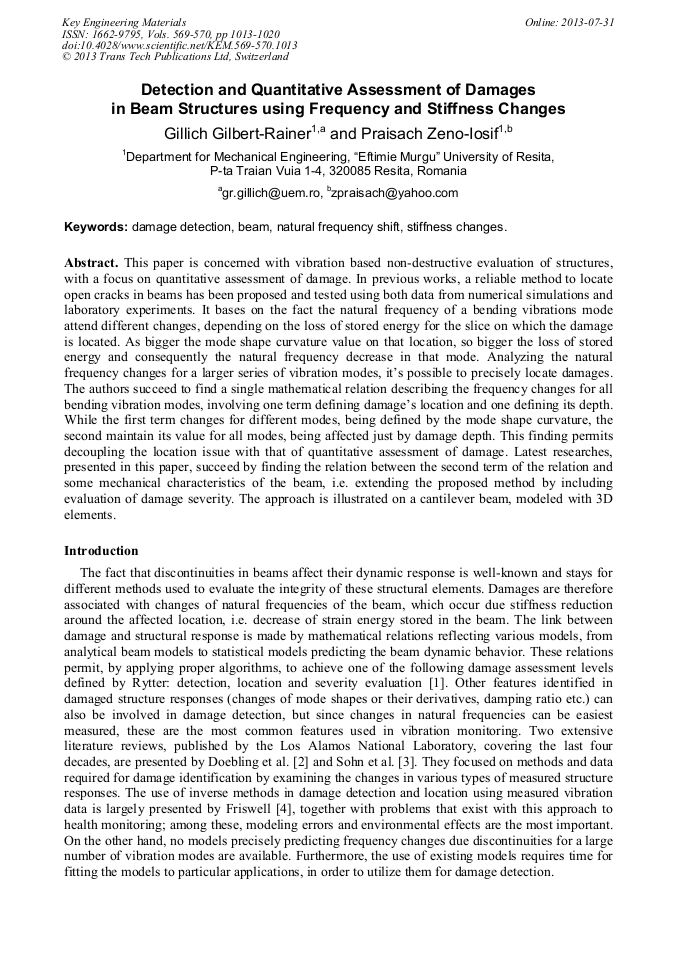

Detection and Quantitative Assessment of Damages in Beam Structures Using Frequency and Stiffness Changes

Abstract:

This paper is concerned with vibration based non-destructive evaluation of structures, with a focus on quantitative assessment of damage. In previous works, a reliable method to locate open cracks in beams has been proposed and tested using both data from numerical simulations and laboratory experiments. It bases on the fact the natural frequency of a bending vibrations mode attend different changes, depending on the loss of stored energy for the slice on which the damage is located. As bigger the mode shape curvature value on that location, so bigger the loss of stored energy and consequently the natural frequency decrease in that mode. Analyzing the natural frequency changes for a larger series of vibration modes, it’s possible to precisely locate damages. The authors succeed to find a single mathematical relation describing the frequency changes for all bending vibration modes, involving one term defining damage’s location and one defining its depth. While the first term changes for different modes, being defined by the mode shape curvature, the second maintain its value for all modes, being affected just by damage depth. This finding permits decoupling the location issue with that of quantitative assessment of damage. Latest researches, presented in this paper, succeed by finding the relation between the second term of the relation and some mechanical characteristics of the beam, i.e. extending the proposed method by including evaluation of damage severity. The approach is illustrated on a cantilever beam, modeled with 3D elements.

• Periodical: Key Engineering Materials (Volumes 569-570)
• Pages: 1013-1020
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.569-570.1013
• Online since: July 2013
• Authors: Gilbert Rainer Gillich, Zeno Iosif Praisach
• Keywords: Beam, Damage Detection, Natural Frequency Shift, Stiffness Changes

References

[1] A. Rytter, Vibration based inspection of civil engineering structures. Ph.D. Thesis, Aalborg University, Denmark, (1993).

[2] S.W. Doebling, C.R. Farrar, M.B. Prime, D.W. Shevitz, Damage identification and health monitoring of structural and mechanical systems from changes in their vibration characteristics: A literature review. Los Alamos national laboratory report, LA-13070-MS. (1996).

DOI: 10.2172/249299

[3] H. Sohn, C.R. Farrar, F.M. Hemez, D.D. Shunk, D.W. Stinemates, B.R. Nadler, A review of structural health monitoring literature: 1996–2001. Los Alamos national laboratory report, LA-13976-MS. (2003).

[4] M.I. Friswell, Damage identification using inverse methods, Phil. Trans. R. Soc. A, 365 (2007) 393–410.

[5] C.P. Fritzen, Vibration-Based Techniques for Structural Health Monitoring, in: D. Balageas, C.P. Fritzen, A. Güemes (Eds. ), Structural Health Monitoring, ISTE, London, 2006, pp.45-224.

DOI: 10.1002/9780470612071.ch2

[6] M.I. Friswell, J.E.T. Penny, Crack Modeling for Structural Health Monitoring, Struct. Health Monit. 1 (2002) 138-146.

[7] A.D. Dimarogonas, Vibration of cracked structures: a state of the art review, Eng. Fract. Mech. 55 (1996) 831–857.

DOI: 10.1016/0013-7944(94)00175-8

[8] W. Ostachowicz, M. Krawczuk, On modeling of structural stiffness loss due to damage. DAMAS 2001: 4th International Conference on Damage Assessment of Structures, Cardiff, (2001) p.185–199.

DOI: 10.4028/www.scientific.net/kem.204-205.185

[9] G. Yan, A. De Stefano, E. Matta, R. Feng, A novel approach to detecting breathing-fatigue cracks based on dynamic characteristics, J. Sound Vib. 332 (2013) 407–422.

DOI: 10.1016/j.jsv.2012.09.008

[10] P.G. Kirmsher, The effect of discontinuities on the natural frequency of beams, Proc. American Society of Testing and Materials, 44 (1944) 897-904.

[11] W.J. Thomson, Vibration of slender bars with discontinuities in stiffness, J. Appl. Mech. 17 (1943) 203-207.

[12] G. R. Irwin, Analysis of stresses and strains near the end of a crack traversing a plate, J. Appl. Mech., 24 (1957) 361-364.

DOI: 10.1115/1.4011547

[13] H.F. Bueckner, The propagation of cracks and the energy of elastic deformation, Trans. ASME, 80 (1958) 1225-1229.

DOI: 10.1115/1.4012658

[14] R.A. Westmann, W.H. Yang, Stress analysis of cracked rectangular beams, J. Appl. Mech. 32 (1967) 693-701.

DOI: 10.1115/1.3607763

[15] G. Gounaris, A. Dimarogonas, A finite element of a cracked prismatic beam for structural analysis, Computers and Structures 28 (3) (1988) 309–313.

DOI: 10.1016/0045-7949(88)90070-3

[16] G.R. Gillich, Z.I. Praisach, Robust method to identify damages in beams based on frequency shift analysis, Conference on Health Monitoring of Structural and Biological Systems, San Diego (2012) Article Number: 83481D.

DOI: 10.1117/12.915158

[17] Z.I. Praisach, G.R. Gillich, D.E. Birdeanu, Considerations on Natural Frequency Changes in Damaged Cantilever Beams Using FEM, Proceedings of the 3rd WSEAS International Conference on Engineering Mechanics, Structures, Engineering Geology/International Conference on Geography and Geology (2010).

[18] G.R. Gillich, Z.I. Praisach, C.M. Iavornic, Reliable method to detect and assess damages in beams based on frequency changes, Proceedings of the ASME 2012 International Design Engineering Technical Conferences & Computers and Information in Engineering Conference, Chicago (2012).

DOI: 10.1115/detc2012-70094

[19] S. Caddemi, I. Calio, Exact closed-form solution for the vibration modes of the Euler–Bernoulli beam withmultiple open cracks, J. Sound Vib. 327 (2009) 473–489.

DOI: 10.1016/j.jsv.2009.07.008
