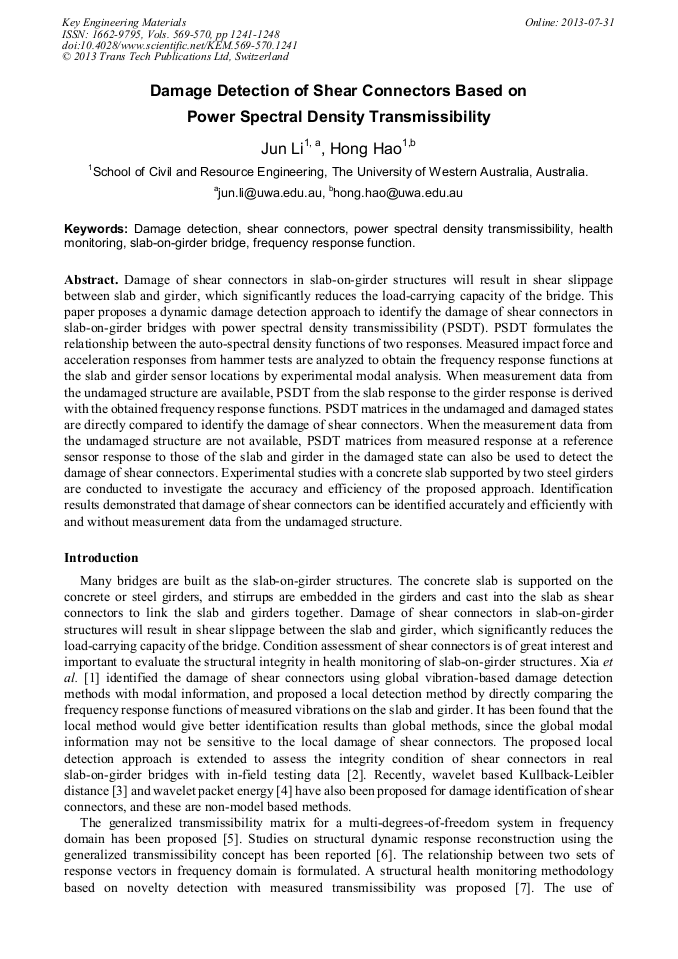

Damage Detection of Shear Connectors Based on Power Spectral Density Transmissibility

Abstract:

Damage of shear connectors in slab-on-girder structures will result in shear slippage between slab and girder, which significantly reduces the load-carrying capacity of the bridge. This paper proposes a dynamic damage detection approach to identify the damage of shear connectors in slab-on-girder bridges with power spectral density transmissibility (PSDT). PSDT formulates the relationship between the auto-spectral density functions of two responses. Measured impact force and acceleration responses from hammer tests are analyzed to obtain the frequency response functions at the slab and girder sensor locations by experimental modal analysis. When measurement data from the undamaged structure are available, PSDT from the slab response to the girder response is derived with the obtained frequency response functions. PSDT matrices in the undamaged and damaged states are directly compared to identify the damage of shear connectors. When the measurement data from the undamaged structure are not available, PSDT matrices from measured response at a reference sensor response to those of the slab and girder in the damaged state can also be used to detect the damage of shear connectors. Experimental studies with a concrete slab supported by two steel girders are conducted to investigate the accuracy and efficiency of the proposed approach. Identification results demonstrated that damage of shear connectors can be identified accurately and efficiently with and without measurement data from the undamaged structure.

• Periodical: Key Engineering Materials (Volumes 569-570)
• Pages: 1241-1248
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.569-570.1241
• Online since: July 2013
• Authors: Jun Li, Hong Hao
• Keywords: Damage Detection, Frequency Response Function, Health Monitoring, Power Spectral Density Transmissibility, Shear Connectors, Slab-on-Girder Bridge

References

[1] Y. Xia, H. Hao and A.J. Deeks, Dynamic assessment of shear connectors in slab-girder bridges, Eng. Struct. 29 (2007) 1457-1486.

DOI: 10.1016/j.engstruct.2006.09.014

[2] Y. Xia, H. Hao, A.J. Deeks and X.Q. Zhu, Condition assessment of shear connectors in slab-girder bridges via vibration measurements, J. Bridge. Eng. 13 (2008) 43-54.

DOI: 10.1061/(asce)1084-0702(2008)13:1(43)

[3] X.Q. Zhu, H. Hao, Assessment of shear connection condition in slab-girder bridges by wavelet based Kullback-Leibler distance, Proceedings of Australasian Structural Engineering Conference 2008, Melbourne, Australia, 2008, Paper No. 069.

DOI: 10.1260/1369-4332.15.5.771

[4] W.X. Ren, Z.S. Sun, Y. Xia, H. Hao and A.J. Deeks, Damage identification of shear connectors with wavelet packet energy: laboratory test study, J. Struct. Eng. 134 (2008) 832-841.

DOI: 10.1061/(asce)0733-9445(2008)134:5(832)

[5] A.M.R. Ribeiro, J.M.M. Silva and N.M.M. Maia, On the generalisation of the transmissibility concept, Mech. Syst. Signal. Pr. 14 (2000) 29-35.

[6] S.S. Law, J. Li and Y. Ding, Structural response reconstruction with transmissibility concept in frequency domain, Mech. Syst. Signal. Pr. 25 (2011) 952-968.

DOI: 10.1016/j.ymssp.2010.10.001

[7] K. Worden, G. Manson, Experimental validation of a structural health monitoring methodology: part I. novelty detection on a laboratory structure, J. Sound. Vib. 259 (2003) 323-343.

DOI: 10.1006/jsvi.2002.5168

[8] T.J. Johnson, D.E. Adams, Transmissibility as a differential indicator of structural damage, J. Vib. Acoust. 124 (2002) 634-641.

[9] J. Li, S.S. Law, Substructural response reconstruction in wavelet domain, J. Appl. Mech. 78 (2011) 041010.

[10] J. Li, and S.S. Law, Substructural damage detection with incomplete information of the structure, J. Appl. Mech. 79 (2012) 041003.

[11] W.J. Yan, W.X. Ren, Operational modal parameter identification from power spectrum density transmissibility, Comput-Aided. Civ. Infra. 27 (2011) 1-16.

DOI: 10.1111/j.1467-8667.2011.00735.x

[12] S.W. Doebling, C.R. Farrar and P.J. Cornwell, DIAMOND: a graphical interface toolbox for comparative modal analysis and damage identification, Proceedings of the Sixth International Conference on Recent Advances in Structural Dynamics, Southampton, U.K., (1997).

[13] D.J. Ewins, Modal testing: theory, practice and application, Research Studies Press Ltd, Hertfordshire, U.K., (2000).

[14] J.S. Bendat, A.G. Piersol, Engineering applications of correlation and spectral analysis, John Wiley and Sons, USA, (1980).

[15] S.M. Ross, Introduction to probability and statistics for engineers and scientists, Third edition, Elsevier Academic Press, USA, (2004).
