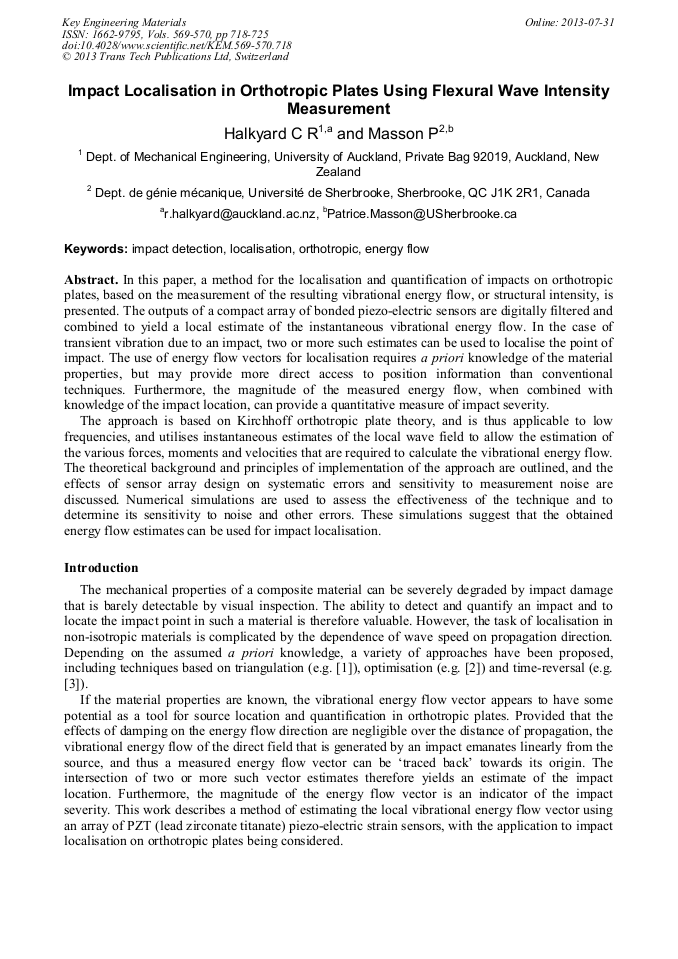

Impact Localisation in Orthotropic Plates Using Flexural Wave Intensity Measurement

Abstract:

In this paper, a method for the localisation and quantification of impacts on orthotropic plates, based on the measurement of the resulting vibrational energy flow, or structural intensity, is presented. The outputs of a compact array of bonded piezo-electric sensors are digitally filtered and combined to yield a local estimate of the instantaneous vibrational energy flow. In the case of transient vibration due to an impact, two or more such estimates can be used to localise the point of impact. The use of energy flow vectors for localisation requires a priori knowledge of the material properties, but may provide more direct access to position information than conventional techniques. Furthermore, the magnitude of the measured energy flow, when combined with knowledge of the impact location, can provide a quantitative measure of impact severity. The approach is based on Kirchhoff orthotropic plate theory, and is thus applicable to low frequencies, and utilises instantaneous estimates of the local wave field to allow the estimation of the various forces, moments and velocities that are required to calculate the vibrational energy flow. The theoretical background and principles of implementation of the approach are outlined, and the effects of sensor array design on systematic errors and sensitivity to measurement noise are discussed. Numerical simulations are used to assess the effectiveness of the technique and to determine its sensitivity to noise and other errors. These simulations suggest that the obtained energy flow estimates can be used for impact localisation.

• Periodical: Key Engineering Materials (Volumes 569-570)
• Pages: 718-725
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.569-570.718
• Online since: July 2013
• Authors: C.R. Halkyard, Patrice Masson
• Keywords: Energy Flow, Impact Detection, Localisation, Orthotropic

References

[1] J.A. Greene, T.A. Tran, V. Bhatia, M.F. Gunter, A. Wang, K.A. Murphy and R.O. Claus, Optical fiber sensing technique for impact detection and location in composites and metal specimens, Smart Materials and Structures 4 (1995) 93-99.

DOI: 10.1088/0964-1726/4/2/004

[2] M. Koabaz, T. Hajzargarbashi, T. Kundu and M Deschamps, Locating the acoustic source in an anisotropic plate, Smart Materials and Structures 0(0) (2011) 1-9. doi: 10. 1177/1475921711419991.

DOI: 10.1177/1475921711419991

[3] B. Park, H. Sohn, S.E. Olson, M.P. DeSimio, K.S. Brown and M.M. Derriso, Impact localization in complex structures using laser-based time reversal, Smart Materials and Structures 0(0) (2012) 1-12. doi: 10. 1177/1475921712449508.

DOI: 10.1177/1475921712449508

[4] J.M. Whitney, Structural Analysis of Laminated Anisotropic Plates, Technomic Publishing, Lancaster, (1987).

[5] N. Hu, M. Tajima, N. Kawabata, S. Matsumoto and H. Fukunaga, An improved identification method of impact force acting on CFRP laminated plates, in: F. -K. Chang (Ed. ), Structural Health Monitoring 2003: From Diagnostics & Prognostics to Structural Health Management: Proceedings of the 4th International Workshop on Structural Health Monitoring, Stanford University, Stanford, CA, September 15-17, (2003).

DOI: 10.21236/ada423869

[6] E.A. Magliula and J.G. McDaniel, Directionality of flexural intensity in orthotropic plates, Journal of the Acoustical Society of America 129(2) (2011) 701–706. doi: 10. 1121/1. 3531837.

DOI: 10.1121/1.3531837
