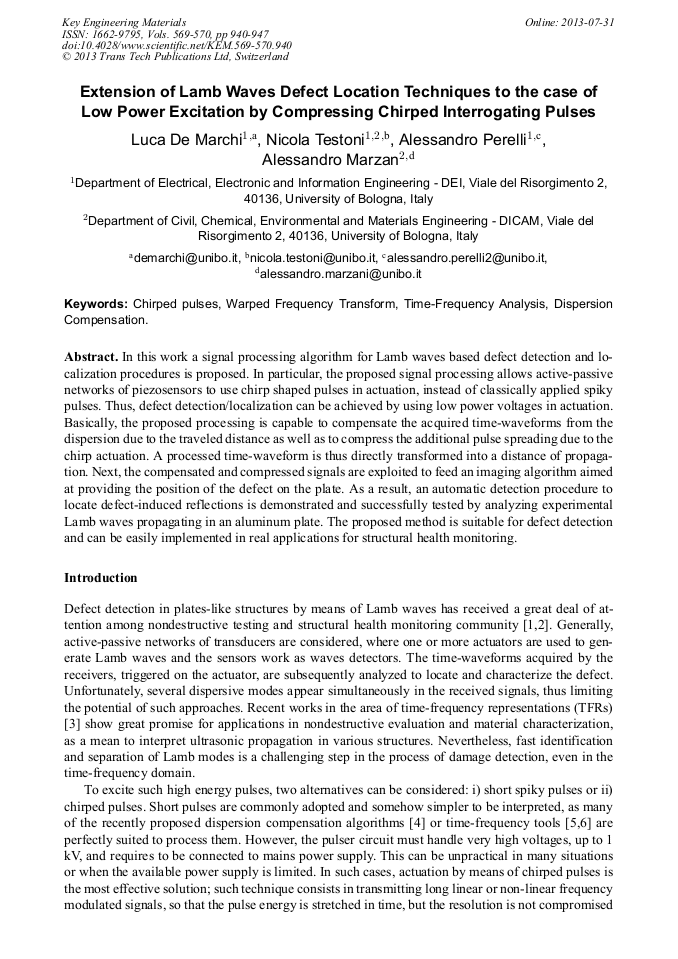

Extension of Lamb Waves Defect Location Techniques to the Case of Low Power Excitation by Compressing Chirped Interrogating Pulses

Abstract:

In this work a signal processing algorithm for Lamb waves based defect detection/localization procedures is proposed. In particular, the proposed signal processing allows active-passive networks of piezosensors to use chirp shaped pulses in actuation, instead of classically applied spiky pulses. Thus, defect detection/localization can be achieved by using low power voltages in actuation. Basically, the proposed processing is capable to compensate the acquired time-waveforms from the dispersion due to the traveled distance as well as to compress the additional pulse spreading due to the chirp actuation. A processed time-waveform is thus directly transformed into a distance of propagation. Next, the compensated and compressed signals are exploited to feed an imaging algorithm aimed at providing the position of the defect on the plate. As a result, an automatic detection procedure to locate defect-induced reflections is demonstrated and successfully tested by analyzing experimental Lamb waves propagating in an aluminum plate. The proposed method is suitable for defect detection and can be easily implemented in real applications for structural health monitoring.

• Periodical: Key Engineering Materials (Volumes 569-570)
• Pages: 940-947
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.569-570.940
• Online since: July 2013
• Authors: Luca de Marchi, Nicola Testoni, Alessandro Perelli, Alessandro Marzani
• Keywords: Chirped Pulses, Dispersion Compensation, Time-Frequency Analysis, Warped Frequency Transform
