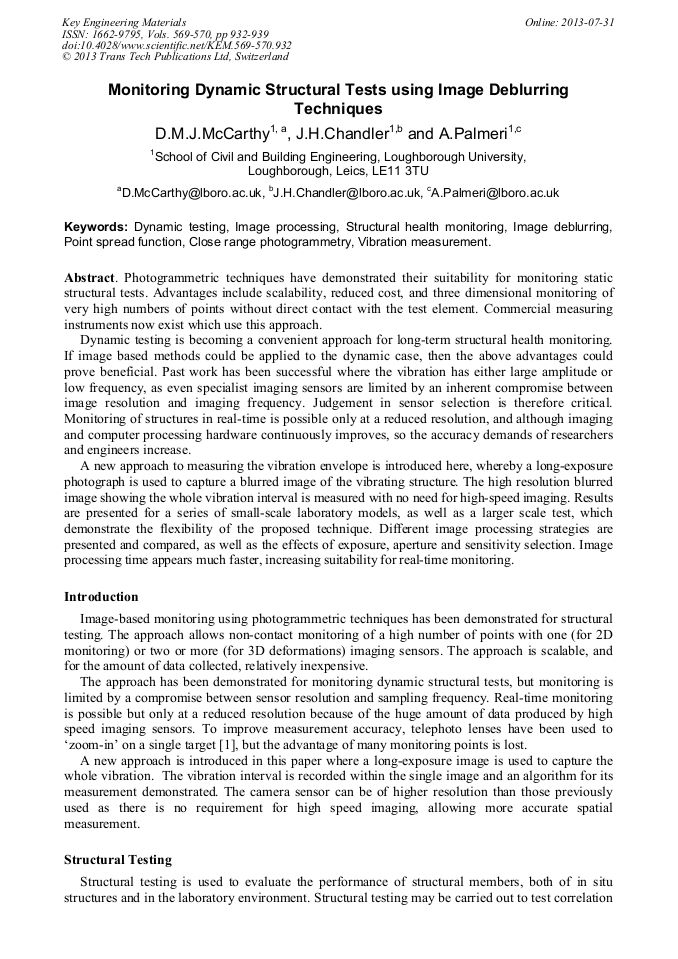

Monitoring Dynamic Structural Tests Using Image Deblurring Techniques

Abstract:

Photogrammetric techniques have demonstrated their suitability for monitoring static structural tests. Advantages include scalability, reduced cost, and three dimensional monitoring of very high numbers of points without direct contact with the test element. Commercial measuring instruments now exist which use this approach. Dynamic testing is becoming a convenient approach for long-term structural health monitoring. If image based methods could be applied to the dynamic case, then the above advantages could prove beneficial. Past work has been successful where the vibration has either large amplitude or low frequency, as even specialist imaging sensors are limited by an inherent compromise between image resolution and imaging frequency. Judgement in sensor selection is therefore critical. Monitoring of structures in real-time is possible only at a reduced resolution, and although imaging and computer processing hardware continuously improves, so the accuracy demands of researchers and engineers increase. A new approach to measuring vibration is introduced here, whereby a long-exposure photograph is used to capture a blurred image of the vibrating structure. The high resolution blurred image showing the whole vibration interval is measured with no need for high-speed imaging. Results are presented for a series of small-scale laboratory models, as well as a larger scale test, which demonstrate the flexibility of the proposed technique. Different image processing strategies are presented and compared, as well as the effects of exposure, aperture and sensitivity selection. Image processing time appears much faster, increasing suitability for real-time monitoring.

• Periodical: Key Engineering Materials (Volumes 569-570)
• Pages: 932-939
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.569-570.932
• Online since: July 2013
• Authors: David M.J. McCarthy, Jim H. Chandler, Alessandro Palmeri
• Keywords: Close Range Photogrammetry, Dynamic Testing, Image Deblurring, Image Processing, Point Spread Function, Structural Health Monitoring (SHM), Vibration Measurement

References

[1] Wahbeh, A.M., Caffrey, J.P. & Masri, S.F., A vision-based approach for the direct measurement of displacements in vibrating systems. Smart materials and structures. 12 (2003) 785–794.

DOI: 10.1088/0964-1726/12/5/016

[2] Pandey, A., Biswas, M. & Samman, M., Damage detection from changes in curvature mode shapes. Journal of Sound and Vibration. 145(2) (1991) 321–332.

DOI: 10.1016/0022-460x(91)90595-b

[3] Carden, E.P., Vibration Based Condition Monitoring: A Review. Structural Health Monitoring. 3(4) (2004) 355–377.

DOI: 10.1177/1475921704047500

[4] Dilena, M. & Morassi, A., Dynamic testing of a damaged bridge. Mechanical Systems and Signal Processing. 25(5) (2011) 1485–1507.

DOI: 10.1016/j.ymssp.2010.12.017

[5] Warren, C., Niezrecki, C., Avitabile, P. & Pingle, P., Comparison of FRF measurements and mode shapes determined using optically image based, laser, and accelerometer measurements. Mechanical Systems and Signal Processing. 25(6) (2011) 2191–2202.

DOI: 10.1016/j.ymssp.2011.01.018

[6] Robins, P., Austin, S., Chandler, J.H. & Jones, P., Flexural strain and crack width measurement of steel-fibre-reinforced concrete by optical grid and electrical gauge methods. Cement and Concrete Research. 31(5) (2001) 719–729.

DOI: 10.1016/s0008-8846(01)00465-3

[7] Lange, J. & Benning, W., Crack detection at concrete construction units from photogrammetric data using image processing procedures, in: N. Kerle & A. Skidmore, (Eds. ), Proceedings of the ISPRS Commission VII Symposium Remote Sensing: From Pixels to Processes, Enschede, The Netherlands, (2006).

DOI: 10.1111/j.1477-9730.2006.00405.x

[8] Maas, H. & Hampel, U., Photogrammetric Techniques in Civil Engineering Material Testing and Structure Monitoring. Photogrammetric Engineering & Remote Sensing. 72(1) (2006) 39–45.

DOI: 10.14358/pers.72.1.39

[9] Roberts, G.W., Meng, X., Brown, C. J. & Dallard, P. GPS measurements on the London Millennium Bridge. Proceedings of the ICE - Bridge Engineering. 159(4) (2006) 153–161.

DOI: 10.1680/bren.2006.159.4.153

[10] Lee, J. -J. & Shinozuka, M., Real-Time Displacement Measurement of a Flexible Bridge Using Digital Image Processing Techniques. Experimental Mechanics. 46(1) (2006) 105–114.

DOI: 10.1007/s11340-006-6124-2

[11] Park, J. -W., Lee, J. -J., Jung, H. -J. & Myung, H., Vision-based displacement measurement method for high-rise building structures using partitioning approach. NDT & E International. 43(7) (2010) 642–647.

DOI: 10.1016/j.ndteint.2010.06.009

[12] Choi, H. -S. Cheung, J. -H., Kim, S. -H., & Ahn, J. -H., Structural Dynamic Displacement Vision System using Digital Image Processing. NDT & E International. 44(7) (2011) 597–608.

DOI: 10.1016/j.ndteint.2011.06.003

[13] Fergus, R., Singh, B. & Hertzmann, A., Removing camera shake from a single photograph. ACM Transactions on Graphics. 1(212) (2006) 787–794.

DOI: 10.1145/1141911.1141956

[14] Caglioti, V. & Giusti, A., Recovering ball motion from a single motion-blurred image. Computer Vision and Image Understanding. 113(5) (2009) 590–597.

DOI: 10.1016/j.cviu.2008.01.008

[15] Boracchi, G., Caglioti, V. & Giusti, A., Ball position and motion reconstruction from blur in a single perspective image, in: Image Analysis and Processing. Modena: IEEE Comput. Soc., (2007).

DOI: 10.1109/iciap.2007.4362762

[16] Luhmann, T., 3D Imaging - How to Achieve Highest Accuracy, in: F. Remondino & M. R. Shortis, (Eds. ), Proc. of SPIE: Videometrics, Range Imaging, and Applications XI, Munich, Germany, 2011, p.808502–1–11.

DOI: 10.1117/12.892070
