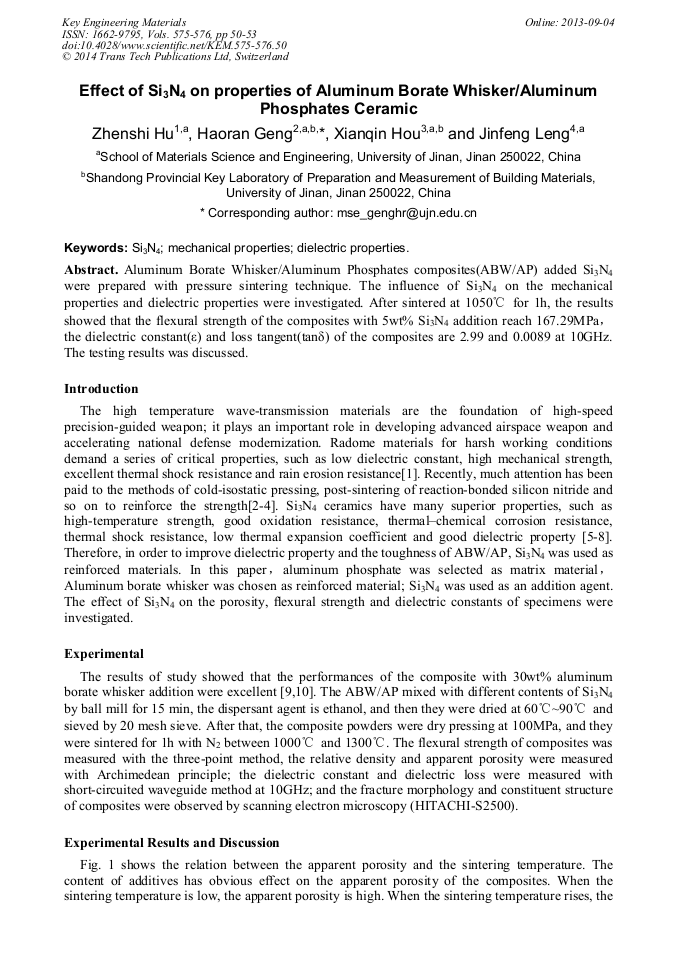

Effect of Si₃N₄ on Properties of Aluminum Borate Whisker/Aluminum Phosphates Ceramic

Abstract:

Aluminum Borate Whisker/Aluminum Phosphates composites (ABW/AP) added Si₃N₄ were prepared with pressure sintering technique. The influence of Si₃N₄ on the mechanical properties and dielectric properties were investigated. After sintered at 1050°C for 1h, the results showed that the flexural strength of the composites with 5wt% Si₃N₄ addition reach 167.29MPa,the dielectric constant (ε) and loss tangent (tanδ) of the composites are 2.99 and 0.0089 at 10GHz. The testing results was discussed.

• Periodical: Key Engineering Materials (Volumes 575-576)
• Pages: 50-53
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.575-576.50
• Online since: September 2013
• Authors: Zhen Shi Hu, Hao Ran Geng, Xian Qin Hou, Jin Feng Leng
• Keywords: Si₃N₄, Dielectric Property, Mechanical Property

References

[1] S.Q. Ding, Y.P. Zeng, D.L. Jiang, Oxidation bonding of porous silicon nitride ceramics with high strength and low dielectric constant, Mater. Lett. 61 11–12 (2006) 2277–2280.

DOI: 10.1016/j.matlet.2006.08.067

[2] B.T. Lee, J.H. Yoo, H.D. Kim, Size effect of raw Si power on microstructures and mechanical properties of RBSN and GPSed-RBSN bodies, Mater. Sci. Eng. A 333(1-2) (2002) 306-313.

DOI: 10.1016/s0921-5093(01)01855-x

[3] B.T. Lee, H.D. Kim, Effect of sintering additives on the nitridation behavior of reaction-bonded silicon nitride. Mater. Sci. Eng. A. 364 (1-2) (2004) 126-131.

DOI: 10.1016/j.msea.2003.07.005

[4] Y.G. Jiang, C.R. Zhang, F. Cao, Effects of thermal load on mechanical properties and microstructures of 3D SiO2f/Si3N4–BN composites using polyborosilazane, Mater. Sci. Eng. A. 487 (2008) 597–600.

DOI: 10.1016/j.msea.2007.10.052

[5] F.L. Riley, Silicon nitride and related materials, J. Am. Ceram. Soc. 83 (2) (2000) 245–265.

[6] G. Ziegler, J. Heinrich, G. Wotting, Relationships between processing, microstructure and properties of dense and reaction-bonded silicon nitride, J. Mater. Sci. 22 (9) (1987) 3041–3086.

DOI: 10.1007/bf01161167

[7] A.J. Pyzik, D.R. Beaman, Microstructure, Properties of self-reinforced silicon nitride, J. Am. Ceram. Soc. 76 (11) (1993) 2737–2744.

DOI: 10.1111/j.1151-2916.1993.tb04010.x

[8] D. Aranzazu, H. Stuart, Characterisation of porous silicon nitride materials produced with starch, J. Eur. Ceram. Soc. 24 (2) (2004) 413–419.

[9] Z.Y. Lü, H.R. Geng, M.X. Zhang, Preparation of aluminum borate whisker reinforced aluminum phosphate wave-transparent materials, Chin. Sci. Bull. 53(19) (2008) 3073-3076.

DOI: 10.1007/s11434-008-0433-z

[10] Y. F. Xia, Y. P. Zeng, D. L. Jia, Dielectric and mechanical properties of porous Si3N4ceramics prepared via low temperature sintering, Ceram. Int. 35 (2009) 1699-1703.

DOI: 10.1016/j.ceramint.2008.09.010
