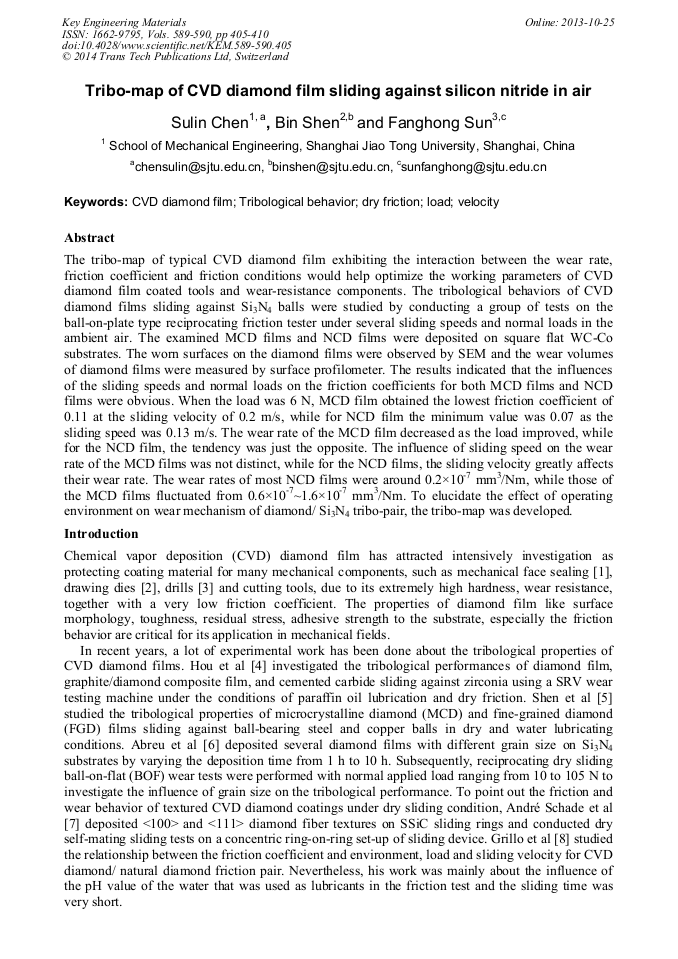

Tribo-Map of CVD Diamond Film Sliding against Silicon Nitride in Air

Abstract:

The tribo-map of typical CVD diamond film exhibiting the interaction between the wear rate, friction coefficient and friction conditions would help optimize the working parameters of CVD diamond film coated tools and wear-resistance components. The tribological behaviors of CVD diamond films sliding against Si₃N₄ balls were studied by conducting a group of tests on the ball-on-plate type reciprocating friction tester under several sliding speeds and normal loads in the ambient air. The examined MCD films and NCD films were deposited on square flat WC-Co substrates. The worn surfaces on the diamond films were observed by SEM and the wear volumes of diamond films were measured by surface profilometer. The results indicated that the influences of the sliding speeds and normal loads on the friction coefficients for both MCD films and NCD films were obvious. When the load was 6 N, MCD film obtained the lowest friction coefficient of 0.11 at the sliding velocity of 0.2 m/s, while for NCD film the minimum value was 0.07 as the sliding speed was 0.13 m/s. The wear rate of the MCD film decreased as the load improved, while for the NCD film, the tendency was just the opposite. The influence of sliding speed on the wear rate of the MCD films was not distinct, while for the NCD films, the sliding velocity greatly affects their wear rate. The wear rates of most NCD films were around 0.2×10^-7 mm³/Nm, while those of the MCD films fluctuated from 0.6×10^-7~1.6×10^-7 mm³/Nm. To elucidate the effect of operating environment on wear mechanism of diamond/ Si₃N₄ tribo-pair, the tribo-map was developed.

• Periodical: Key Engineering Materials (Volumes 589-590)
• Pages: 405-410
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.589-590.405
• Online since: October 2013
• Authors: Su Lin Chen, Bin Shen, Fang Hong Sun
• Keywords: CVD Diamond Film, Dry Friction, Load, Tribological Behavior, Velocity

References

[1] M. A. Tomé, A. J. S. Fernandes, F. J. Oliveira, R. F. Silva and J. M. Carrapichano: Diamond Relat. Mater. Vol. 14 (2005) , pp.617-621.

[2] Z. M. Zhang, H. S. Shen, F. H. Sun, X. C. He and Y. Z. Wan: Diamond Relat. Mater. Vol. 10 (2001) 33-38.

[3] P. J. Heaney, A. V. Sumant, C. D. Torres, R. W. Carpick and F. E. Pfefferkorn: Diamond Relat. Mater. Vol. 17 (2008) 223-233.

[4] Y. Hou, D. Zhuang, G. Zhang, M. Wu and J. Liu: Wear. Vol. 253 (2002) 711-719.

[5] B. Shen and F. Sun: C. J. Mech. Eng. Vol. 22 (2009) , pp.658-663.

[6] C. S. Abreu, F. J. Oliveira, M. Belmonte, A. J. S. Fernandes, R. F. Silva and J. R. Gomes: Wear. Vol. 259 (2005), pp.771-778.

DOI: 10.1016/j.wear.2005.01.004

[7] A. Schade, S. M. Rosiwal and R. F. Singer: Diamond Relat. Mater. Vol. 15 (2006) , pp.1682-1688.

[8] S. E. Grillo and J. E. Field: environment and sliding velocity, J. Phys. D: Appl. Phys. Vol. 33 (2000), pp.595-602.

[9] B. BUHSHAN, Introduction to tribology, New York, (2002).
