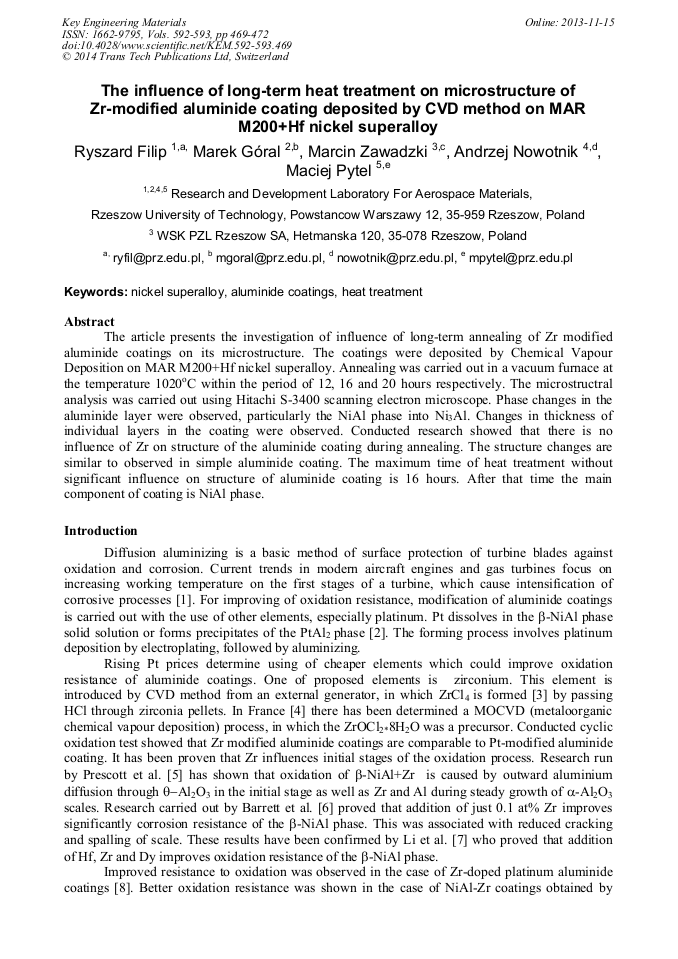

The Influence of Long-Term Heat Treatment on Microstructure of Zr-Modified Aluminide Coating Deposited by CVD Method on MAR M200+Hf Nickel Superalloy

Abstract:

The article presents the investigation of influence of long-term annealing of Zr modified aluminide coatings on its microstructure. The coatings were deposited by Chemical Vapour Deposition on MAR M200+Hf nickel superalloy. Annealing was carried out in a vacuum furnace at the temperature 1020°C within the period of 12, 16 and 20 hours respectively. The microstructral analysis was carried out using Hitachi S-3400 scanning electron microscope. Phase changes in the aluminide layer were observed, particularly the NiAl phase into Ni₃Al. Changes in thickness of individual layers in the coating were observed. Conducted research showed that there is no influence of Zr on structure of the aluminide coating during annealing. The structure changes are similar to observed in simple aluminide coating. The maximum time of heat treatment without significant influence on structure of aluminide coating is 16 hours. After that time the main component of coating is NiAl phase.

• Periodical: Key Engineering Materials (Volumes 592-593)
• Pages: 469-472
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.592-593.469
• Online since: November 2013
• Authors: Ryszard Filip, Marek Goral*, Marcin Zawadzki, Andrzej Nowotnik, Maciej Pytel
• Keywords: Aluminide Coatings, Heat Treatment, Nickel Superalloy

References

[1] A. Feuerstein, J. Knapp, T. Taylor, A. Ashary, A. Bolcavage, N. Hitchman, , Journal of Thermal Spray Technology, Vol. 17, Iss. 2, June 2008, pp.199-213.

DOI: 10.1007/s11666-007-9148-y

[2] L. Swadzba, G. Nawrat, B. Mendala, M. Goral, Key Engineering Materials, Vol. 465, 2011, pp.247-250.

[3] B.M. Warnes, , Surface and Coatings Technology, Vol. 146-147, September 2001, pp.7-12.

[4] S. Hamadi, M. -P. Bacos, M. Poulain, A. Seyeux, V. Maurice, P., Surface and Coatings Technology Vol. 146-147, September 2001, pp.7-12.

[5] R. Prescott, D.F. Mitchell, M.J. Graham, J. Doychak, , Corrosion Science, Vol. 37, No. 9, pp.1341-1364, (1995).

[6] Charles A. Barrett Effect, Oxidation of Metals, Vol. 30, Nos. 5/6, (1988).

[7] D, Li, H, Guo , D. Wang, T. Zhang, S. Gong, H. Xu, Cyclic, Corrosion Science, 66 (2013), p.125–135.

[8] S.J. Hong, G.H. Hwang, W.K. Han, K.S. Lee, S.G. Kang, Intermetallics 18 (2010), p.864–870.

[9] Naveos, S., Oberlaender, G., Cadoret, Y., Josso, P., Bacos, M. -P., 2004, Materials Science Forum, 461-464 (I), pp.375-382.

DOI: 10.4028/www.scientific.net/msf.461-464.375

[10] M. Fukumoto, T. Suzuki, M. Hara, T. Narita, Materials Transactions, Vol. 50, No. 2 (2009) pp.335-340.
