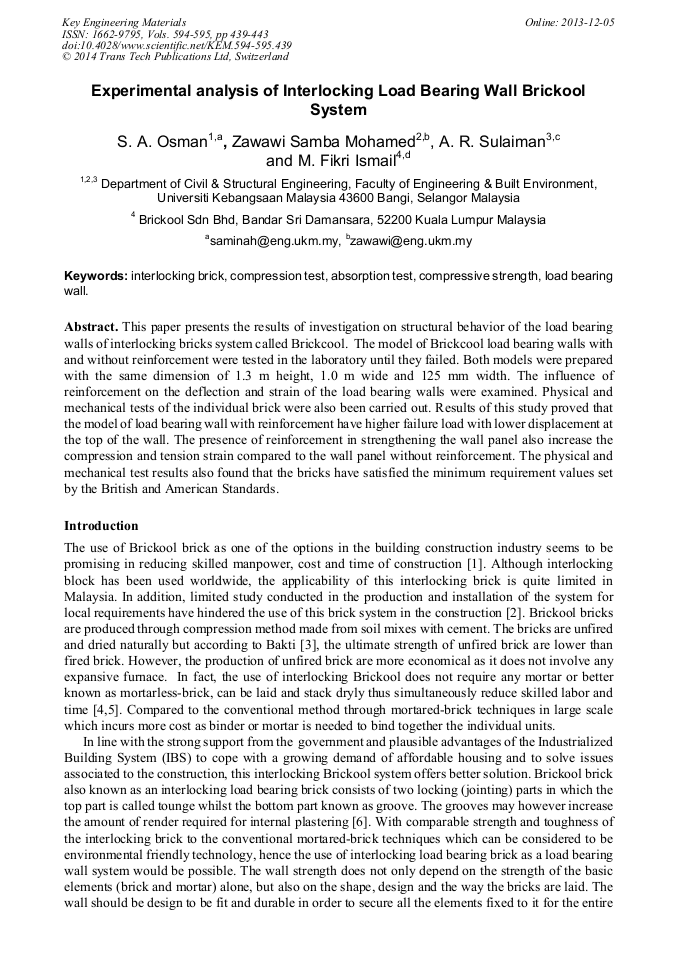

Experimental Analysis of Interlocking Load Bearing Wall Brickool System

Abstract:

This paper presents the results of investigation on structural behavior of the load bearing walls of interlocking bricks system called Brickcool. The model of Brickcool load bearing walls with and without reinforcement were tested in the laboratory until they failed. Both models were prepared with the same dimension of 1.3 m height, 1.0 m wide and 125 mm width. The influence of reinforcement on the deflection and strain of the load bearing walls were examined. Physical and mechanical tests of the individual brick were also been carried out. Results of this study proved that the model of load bearing wall with reinforcement have higher failure load with lower displacement at the top of the wall. The presence of reinforcement in strengthening the wall panel also increase the compression and tension strain compared to the wall panel without reinforcement. The physical and mechanical test results also found that the bricks have satisfied the minimum requirement values set by the British and American Standards.

• Periodical: Key Engineering Materials (Volumes 594-595)
• Pages: 439-443
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.594-595.439
• Online since: December 2013
• Authors: S.A. Osman, Zawawi Samba Mohamed, A.R. Sulaiman, M. Fikri Ismail
• Keywords: Absorption Test, Compression Test, Compressive Strength, Interlocking Brick, Load Bearing Wall

References

[1] Loo Hee Kui. The Application of Interlocking Block System as An Alternative of Conventional Construction of Affordable House. Bachelor Thesis, Universiti Kebangsaan Malaysia (2011).

[2] Ahmad Z., Othman S. Z., Md Yunus B. and Mohamed A. Behavior of Masonry Wall Constructed Using Interlocking Soil Cement Bricks. World Academy Of Science, Engineering And Technology, 60, pp: 1263-1269 (2011).

[3] M. Bakti Farial Khalid. Unfired Bricks. Bachelor Tesis, Universiti Teknologi Malaysia (2006).

[4] A. Ridzauddin Sulaiman. Compressive Strength of Interlocking Load Bearing Wall Brickool System. Bachelor Thesis, Universiti Kebangsaan Malaysia (2011).

[5] Nasly M. A. and AAM Yasin. Sustainable housing using an innovative interlocking block building system. Information on http: /ccasistem. files. wordpress. com. (2010).

[6] Simion Hosea Kintingu. Design of Interlocking Bricks For Enhanced Wall Construction Flexibility, Alignment Accuracy and Load Bearing. PhD tesis, The University of Warwick, United Kingdom (2009).

[7] A.W. Henry, B.P. Sinha, S.R. Davies. An introduction to load bearing brickwork design. New York: Ellis Horwood Ltd (1981).
