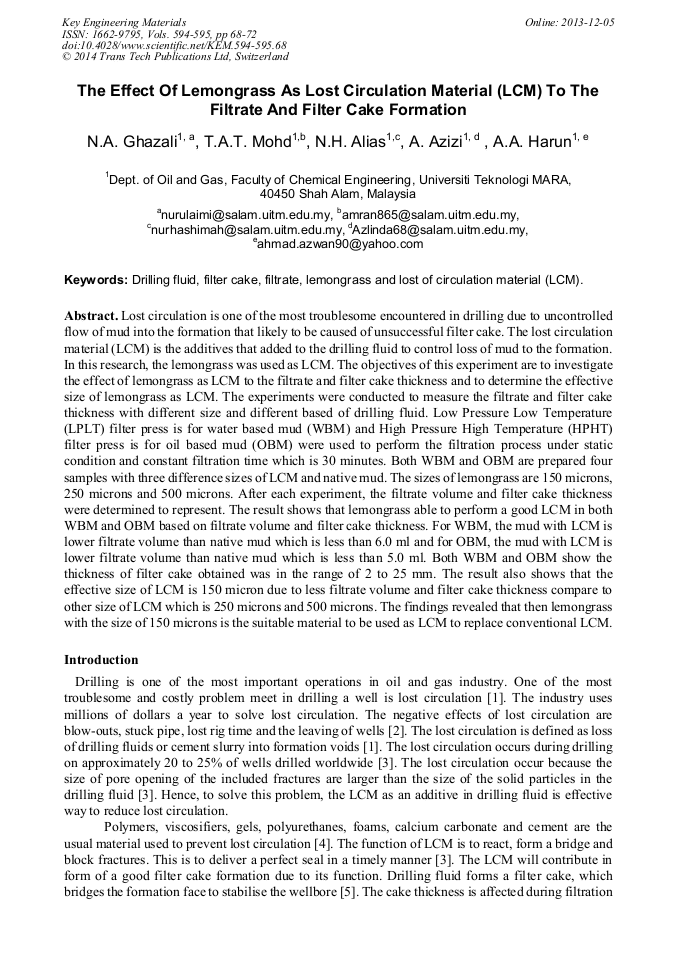

The Effect of Lemongrass as Lost Circulation Material (LCM) to the Filtrate and Filter Cake Formation

Abstract:

Lost circulation is one of the most troublesome encountered in drilling due to uncontrolled flow of mud into the formation that likely to be caused of unsuccessful filter cake. The lost circulation material (LCM) is the additives that added to the drilling fluid to control loss of mud to the formation. In this research, the lemongrass was used as LCM. The objectives of this experiment are to investigate the effect of lemongrass as LCM to the filtrate and filter cake thickness and to determine the effective size of lemongrass as LCM. The experiments were conducted to measure the filtrate and filter cake thickness with different size and different based of drilling fluid. Low Pressure Low Temperature (LPLT) filter press is for water based mud (WBM) and High Pressure High Temperature (HPHT) filter press is for oil based mud (OBM) were used to perform the filtration process under static condition and constant filtration time which is 30 minutes. Both WBM and OBM are prepared four samples with three difference sizes of LCM and native mud. The sizes of lemongrass are 150 microns, 250 microns and 500 microns. After each experiment, the filtrate volume and filter cake thickness were determined to represent. The result shows that lemongrass able to perform a good LCM in both WBM and OBM based on filtrate volume and filter cake thickness. For WBM, the mud with LCM is lower filtrate volume than native mud which is less than 6.0 ml and for OBM, the mud with LCM is lower filtrate volume than native mud which is less than 5.0 ml. Both WBM and OBM show the thickness of filter cake obtained was in the range of 2 to 25 mm. The result also shows that the effective size of LCM is 150 micron due to less filtrate volume and filter cake thickness compare to other size of LCM which is 250 microns and 500 microns. The findings revealed that then lemongrass with the size of 150 microns is the suitable material to be used as LCM to replace conventional LCM.

• Periodical: Key Engineering Materials (Volumes 594-595)
• Pages: 68-72
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.594-595.68
• Online since: December 2013
• Authors: Nurul Aimi Ghazali, T.A.T. Mohd, Nur Hashimah Alias, A. Azizi, A.A. Harun
• Keywords: Drilling Fluid, Filter Cake, Filtrate, Lemongrass, Lost of Circulation Material (LCM)

References

[1] Nayberg, T. M., and Petty, B. R. (1986). Laboratory Study of Lost Circulation Materials for Use in Oil-Base Drilling Muds. Paper presented at the SPE Deep Drilling and Production Symposium, Amarillo, Texas.

DOI: 10.2118/14995-ms

[2] Sanders, W. W., Williamson, R. N., Ivan, C. D., and Powell, D. (2003).

[3] Fidan, E., Babadagli, T., and Kuru, E. (2004a). Use of Cement as Lost-Circulation Material: Best Practices. Paper presented at the Canadian International Petroleum Conference, Calgary, Alberta.

DOI: 10.2118/2004-090

[4] Fidan, E., Babadagli, T., and Kuru, E. (2004b). Use of Cement As Lost Circulation Material - Field Case Studies. Paper presented at the IADC/SPE Asia Pacific Drilling Technology Conference and Exhibition, Kuala Lumpur, Malaysia.

DOI: 10.2118/88005-ms

[5] Elkatatny, S., Mahmoud, M. A., and Nasr-El-Din, H. A. (2011a). A New Technique to Characterize Drilling Fluid Filter Cake. Paper presented at the SPE European Formation Damage Conference, Noordwijk, The Netherlands.

DOI: 10.2118/144098-ms

[6] Corapcioglu, M. Y., and Abboud, N. M. (1990). Cake Filtration With Particle Penetration at the Cake Surface. SPE Reservoir Engineering, 5(3), 317-326. doi: 10. 2118/19021-pa.

DOI: 10.2118/19021-pa

[7] Nelson, S. (2008). Rust of Lemongrass. Paper presented at the Department of Plant and Enviromental Protection Sciences.

[8] Perlmutter, B. A. (2005). Clean-in-place operations for thin-cake filtration technologies.

[9] Kabir, M. A., and Gamwo, I. K. (2011). Filter cake formation on the vertical well at high temperature and high pressure: Computational fluid dynamics modeling and simulations.

[10] Iritani, E. (2003). Properties of Filter Cake in Cake Filtration and Membrane Filtration.

DOI: 10.14356/kona.2003007

[11] Caenn, R., Darley, H., and Gray, G. R. (2011). Composition and Properties of Drilling and Completion Fluids.

DOI: 10.1016/b978-0-12-383858-2.00009-3
