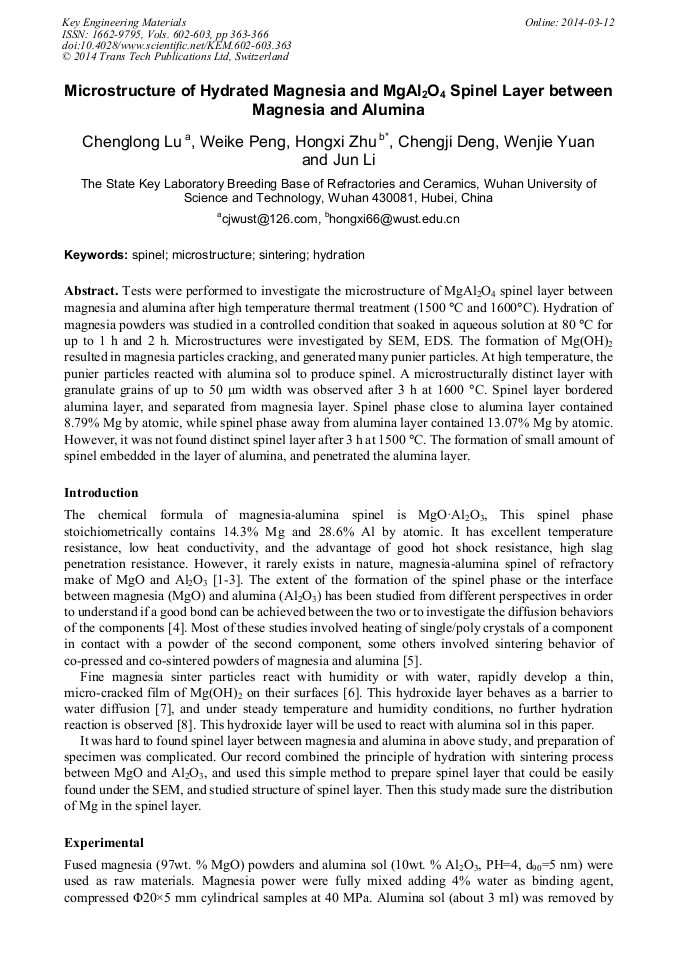

Microstructure of Hydrated Magnesia and MgAl₂O₄ Spinel Layer between Magnesia and Alumina

Abstract:

Tests were performed to investigate the microstructure of MgAl₂O₄ spinel layer between magnesia and alumina after high temperature thermal treatment (1500 °C and 1600°C). The first test involved fused magnesia and alumina sol. Hydration of magnesia powders was studied in a controlled condition that soaked in aqueous solution at 80 °C for up to 1h and 2h. Microstructures of the samples were investigated by SEM, EDS, which showed that the formation of Mg (OH)₂ made magnesia particles cracking, separated many punier particles. The punier particles combined with alumina sol, generated spinel at high temperature. A microstructurally distinct layer with granulate grains of up to 50μm width was observed after 3 h at 1600 °C. Spinel layer bordered alumina layer, and separated from magnesia layer. However, it was not found distinct spinel layer after 3 h at 1500 °C. The formation of small amount of spinel embedded in the layer of alumina, and penetrated the alumina layer. In the spinel layer , Spinel phase close to alumina layer contained 8.79% Mg by atomic, while spinel phase away from alumina layer contained 13.07% Mg by atomic.

• Periodical: Key Engineering Materials (Volumes 602-603)
• Pages: 363-366
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.602-603.363
• Online since: March 2014
• Authors: Cheng Long Lu, Wei Ke Peng, Hong Xi Zhu*, Cheng Ji Deng, Wen Jie Yuan, Jun Li
• Keywords: Hydration, Microstructure, Sintering, Spinel

References

[1] E.B. Watson, J.D. Price, Kinetics of the reaction MgO+Al2O3®MgAl2O4 and Al-Mg interdiffusion in spinel at 1200 to 2000 °C and 1. 0 to 4. 0 GPa, Geochim Cosmochim Acta. 66 (2002) 2123-2138.

DOI: 10.1016/s0016-7037(02)00827-x

[2] E. Yalamac, C. Carry, S. Akkurt, Microstructural development of interface layers between co-sintered alumina and spinel compacts, J. Eur. Ceram. Soc. 31 (2011) 1649-1659.

DOI: 10.1016/j.jeurceramsoc.2011.03.020

[3] P. Zhang, T. Debroy, S. Seetharaman, Interdiffusion in the MgO-Al2O3 spinel with or without some dopants, Metall Mater Trans A. 27 (1996) 2105-2114.

DOI: 10.1007/bf02651865

[4] Y. Okuyama, N. Kurita, N. Fukatsu, Defect structure of alumina-rich nonstoichiometric magnesium aluminate spinel, Solid State Ionics. 177 (2006) 59-64.

DOI: 10.1016/j.ssi.2005.09.013

[5] Y. Boonyongmaneerat, C.A. Schuh, Contributions to the interfacial adhesion in Co-sintered bilayers, Metall Mater Trans A. 37 (2006) 1435-1442.

DOI: 10.1007/s11661-006-0088-9

[6] M. Stctu, S. Akkurt, S. Okur, A microstructural study of surface hydration on a magnesia refractory, Ceram. Int. 36 (2010) 1731-1735.

DOI: 10.1016/j.ceramint.2010.02.043

[7] R. salomao, V.C. Pandolfelli, Magnesia sinter hydration-dehydration behavior in refractory castables, Ceram. Int. 34 (2008) 1829-1834.

DOI: 10.1016/j.ceramint.2007.06.009

[8] R. salomao, L.R.M. Bittencourt, V.C. Pandolfelli, A novel approach for magnesia hydration assessment in refractory castables, Ceram. Int. 33 (2007) 803-810.

DOI: 10.1016/j.ceramint.2006.01.004
