Study on Properties and Application of PG/CS Composite PCMs

Abstract:

Tris (hydroxymethyl) ethane (PG) as a phase change material, micro-porous xonotlite (CS) as matrix, PG/CS composite PCMs were prepared by melt-soaking method, and the effect of micro-porous structure of xonotlite on heat absorption capacity, bending strength and insulation performance of composites, and the exudation of PG was studied. Otherwise, for the work environment and characteristics of propulsive device of vehicle, this paper explored the feasibility that phase change materials (PCMs) worked as the insulation material in short-time insulation system of the vehicle. Experimental results show that, when the most probable pore diameters of xonotlite was not less than 63nm, the composites presented better and almost same absorption capacities of matrix (CS) to PCM (PG) in different composites; when up to 85nm, the composite exhibited the lowest leakage rate (less than 5%), the optimal mechanical property and thermal insulation performance. This Study proposed a new idea for the design of the insulation material in the thermal protection system of propulsive device of vehicle.

You might also be interested in these eBooks

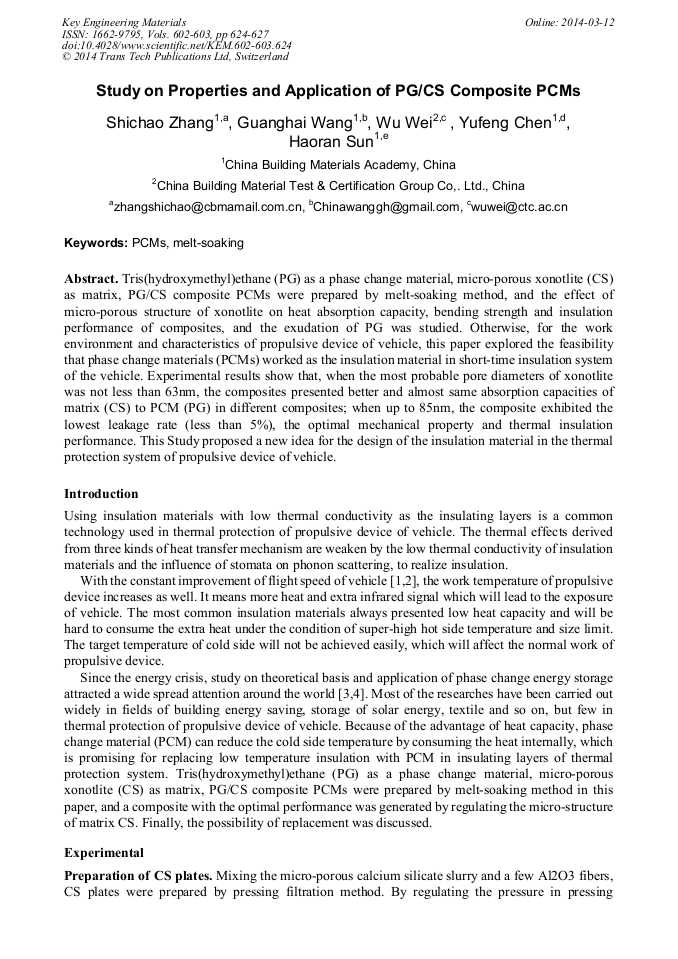

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 602-603)

Pages:

624-627

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.602-603.624

Citation:

Cite this paper

Online since:

March 2014

Authors:

S.C. Zhang*, Guang Hai Wang, Wei Wu, Yu Feng Chen, Hao Ran Sun

Keywords:

Melt-Soaking, Pcms

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] K. Ven, X.C. Li, C.R. Ma, et al, Hypersonic Combined-cycle Propulsion Technology Based on Scramjet, J. Aerospace Manufacturing Technology. 1(2011) 4-7, 20.

Google Scholar

[2] P.L. Moses, et al, NASA hypersonic flight demonstrators—overview, status, and future plans, J. Acta Astronautica. 55(2004) 619-630.

DOI: 10.1016/j.actaastro.2004.05.045

Google Scholar

[3] J.F. Wu, X.H. Xu, J. Li. The Development of Middle and High Temperature Phase Change Materials, J. Proceedings of ISES Solar World Congress 2007: Solar Energy and Human Settlement. 10(2007)2757-2760.

Google Scholar

[4] A. Francis, H. Neil, E. Philip, et al. A review of materials, heat transfer and phase change problem formulation for latent heat thermal energy storage systems (LHTESS), J. Renewable and Sustainable Energy Reviews. 14(2010) 615-628.

DOI: 10.1016/j.rser.2009.10.015

Google Scholar
