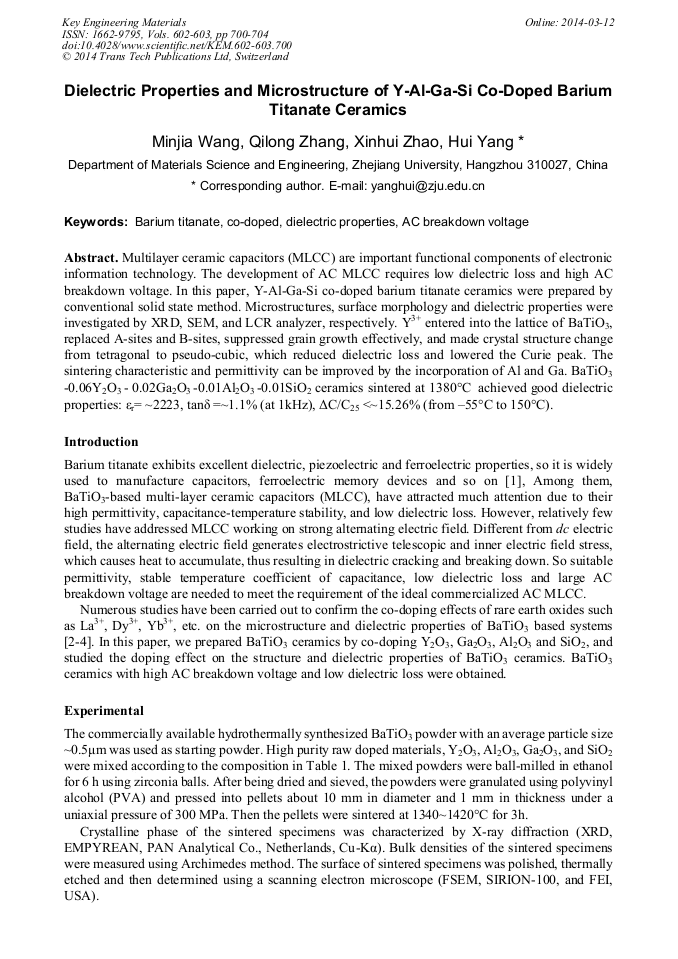

Dielectric Properties and Microstructure of Y-Al-Ga-Si Co-Doped Barium Titanate Ceramics

Abstract:

Multilayer ceramic capacitors (MLCC) are important functional components of electronic information technology. The development of AC MLCC requires low dielectric loss and high AC breakdown voltage. In this paper, Y-Al-Ga-Si co-doped barium titanate ceramics were prepared by conventional solid state method. Microstructures, surface morphology and dielectric properties were investigated by X-ray diffraction, SEM, and LCR analyzer, respectively. Y³⁺ entered into the lattice of BaTiO₃, replaced A-sites and B-sites, suppressed grain growth effectively, and made crystal structure change from tetragonal to pseudo-cubic, which reduced dielectric loss and lowered the Curie peak. The sintering characteristic and permittivity can be improved by the incorporation of Al and Ga. BaTiO₃ -0.06Y₂O₃ - 0.02Ga₂O₃ -0.01Al₂O₃ -0.01SiO₂ ceramics sintered at 1380°C achieved good dielectric properties: ε_r= ~2223, tanδ =~1.1% (at 1kHz), ΔC/C₂₅ <~15.26% (from 55°C to 150°C).

• Periodical: Key Engineering Materials (Volumes 602-603)
• Pages: 700-704
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.602-603.700
• Online since: March 2014
• Authors: Min Jia Wang, Qi Long Zhang, Xin Hui Zhao, Hui Yang*
• Keywords: AC Breakdown Voltage, Barium Titanate (BT), Co-Doped, Dielectric Property

References

[1] V.V. Mitic, Z.S. Nikolic, V.B. Pavlovic, et al., J. Am. Ceram. Soc. 93 (2010) 132-137.

[2] O. Parkash, D. Kumar, R.K. Dwivedi, et al., J. Mater. Sci. 42 (2007) 5490-5496.

[3] H.Y. Miao, M. Dong, G.Q. Tan, Y.P. Pu, , J. Electroceram. 16 (2006) 297-300.

[4] S. Wang, S.R. Zhang, X.H. Zhou, et al., Mater. Lett. 59 (2005) 2457-2460.

[5] R.D. Shannon, Acta. Crystallogr. A. 32 (1976) 751-767.

[6] J. Zhi, A. Chen, Y. Zhi, et al. J. Am. Ceram. Soc. 82 (1999) 1345-1348.

[7] G. Arlt, D. Hennings, G. de With, J. Appl. Phys. 58 (1985) 1619-1624.

[8] K.J. Park, C.H. Kim, Y.J. Yoon, et al., J. Eur. Ceram. Soc. 29 (2009) 1735-1741.
