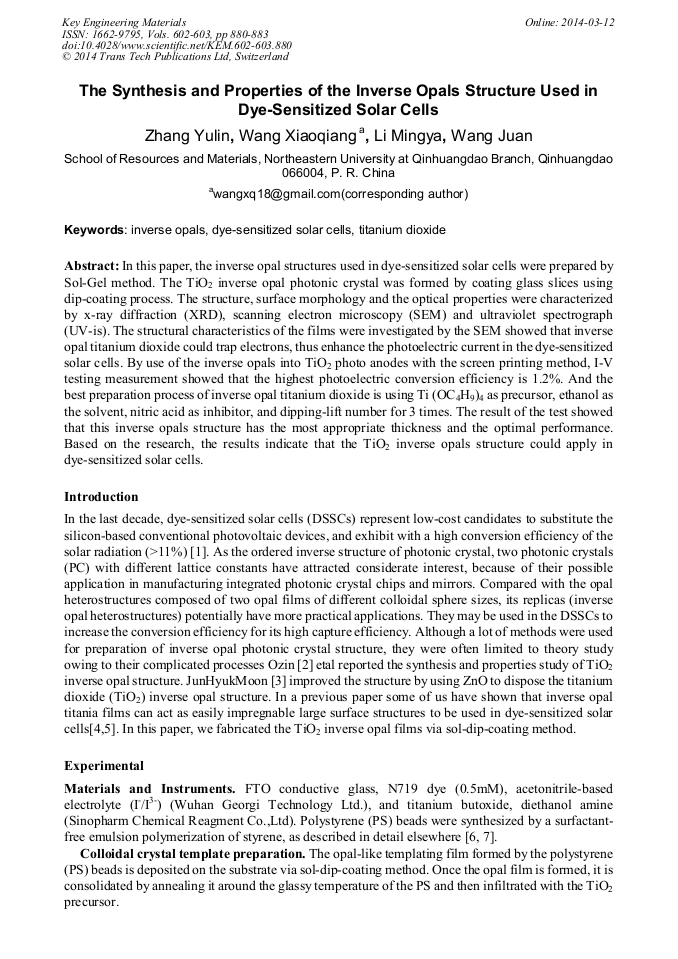

The Synthesis and Properties of the Inverse Opals Structure Used in Dye-Sensitized Solar Cells

Abstract:

In this paper, the inverse opal structures used in dye-sensitized solar cells were prepared by Sol-Gel method. The TiO₂ inverse opal photonic crystal was formed by coating glass slices using dip-coating process. The structure, surface morphology and the optical properties were characterized by x-ray diffraction (XRD), scanning electron microscopy (SEM) and ultraviolet spectrograph (UV-is). The structural characteristics of the films were investigated by the SEM showed that inverse opal titanium dioxide could trap electrons, thus enhance the photoelectric current in the dye-sensitized solar cells. By use of the inverse opals into TiO₂ photo anodes with the screen printing method, I-V testing measurement showed that the highest photoelectric conversion efficiency is 1.2%. And the best preparation process of inverse opal titanium dioxide is using Ti (OC₄H₉)₄ as precursor, ethanol as the solvent, nitric acid as inhibitor, and dipping-lift number for 3 times. The result of the test showed that this inverse opals structure has the most appropriate thickness and the optimal performance. Based on the research, the results indicate that the TiO₂ inverse opals structure could apply in dye-sensitized solar cells.

• Periodical: Key Engineering Materials (Volumes 602-603)
• Pages: 880-883
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.602-603.880
• Online since: March 2014
• Authors: Yu Lin Zhang, Xiao Qiang Wang*, Ming Ya Li, Juan Wang
• Keywords: Dye-Sensitized Solar Cell, Inverse Opals, Titanium Dioxide

References

[1] G. Ruani, C. Ancora, ScienceDirect, 92(2008) 537-542.

[2] J.I.L. Chen, G von Freymann, J. Mater. Chem., 18 (2008) 369.

[3] Kim H N, Moon J H. Current Applied Physics, 13 (2013) 841-845.

[4] Aijun Wang, Sheng-Li Chen, Synth. Met., 161(2011)504-507.

[5] Yu Li, Francois Piret, J. Colloid Interface Sci, 348(2010)43-48.

[6] P. Nozar, C. Dionigi, Synth. Met., 139(2003)667.

[7] C. Dionigi, P. Nozar, J. Colloid Interface Sci, 275(2004)445.
