A 16 Bits Sigma-Delta Modulator Applied in Gyroscope

Abstract:

In this paper, a 4^th-order sigma-delta modulator applied in gyroscope is presented. This modulator adopts the 2-1-1 Multi stage noise shaping structure. The bandwidth of signal is 100 KHz, the over sample rate is 64, and sample frequency is 12.8MHz. By the MATLAB Simulink modeling and simulation, when the input signal is 100 KHz, the SNDR of the MASH ADC is 121.8dB, and the effective number of bit is 19.93 in ideal situation. After considering non-ideal factors, the SNDR is 111.6dB, the effective number of bit of ADC is 18.28. Compared with the ideal situation, the noise floor of PSD has increased 40dB. It explains that non-ideal factors have a significant effect on the performance of the sigma-delta ADC. The 4^th-order MASH sigma-delta modulator has been implemented under 0.5 um CMOS process and simulated under Cadence. The final simulation results show that SNDR is 112.4 dB and effective number of bits (ENOB) is 18.6.

You might also be interested in these eBooks

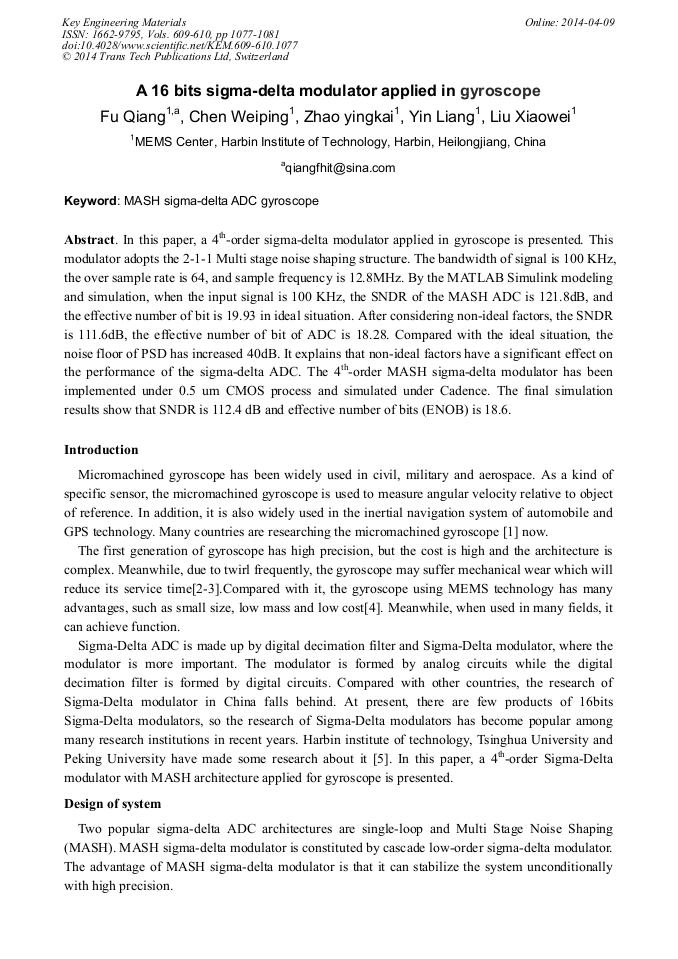

View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 609-610)

Pages:

1077-1081

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.609-610.1077

Citation:

Cite this paper

Online since:

April 2014

Authors:

Qiang Fu*, Wei Ping Chen, Ying Kai Zhao, Liang Yin, Xiao Wei Liu

Keywords:

ADC, Gyroscope, Mash, Sigma-Delta

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Hayashi S, Kikuchi T, Kinoshita Y. Structures for supporting vibrators and devices for measuring physical quantities using such structures: European Patent EP 1635139[P]. 2012-10-17.

Google Scholar

[2] Yoneda T. Vibration Gyro Element: U.S. Patent Application 13/343, 748[P]. 2012-1-5.

Google Scholar

[3] Uemori S, Ishii M, Kobayashi H, et al. Multi-bit Sigma-Delta TDC Architecture for Digital Signal Timing Measurement[C]/Mixed-Signals, Sensors and Systems Test Workshop (IMS3TW), 2012 18th International. IEEE, 2012: 67-72.

DOI: 10.1109/ims3tw.2012.23

Google Scholar

[4] Luo Bing, Wang Ancheng, Wu Meiping. A Drive Control Scheme Based on Phase-control for Silicon Micromechanical Gyroscopes [J]. ACTA AUTOMATICA SINICA, 2012, 38(002): 206-212.

DOI: 10.3724/sp.j.1004.2012.00206

Google Scholar

[5] Lee S K, Park S J, Suh Y, et al. A 1. 3 μW 0. 6 V 8. 7-ENOB Successive Approximation ADC in a 0. 18 μm CMOS [C]. VLSI Circuits, 2009 Symposium on. IEEE, 2009: 242-243.

Google Scholar

[6] Dai Xiaowu. Modeling, Simulation and Circuit Realization of a High Performance 4th-order Sigma Delta Modulator [D]. Wuhan：Huazhong University of Science and Technology，2008：54-57.

Google Scholar

[7] Petraglia A. Fundamental frequency response bounds of direct-form recursive switched-capacitor filters with capacitance mismatch[J]. Circuits and Systems II: Analog and Digital Signal Processing, IEEE Transactions on, 2001, 48(4): 340-350.

DOI: 10.1109/82.933792

Google Scholar
