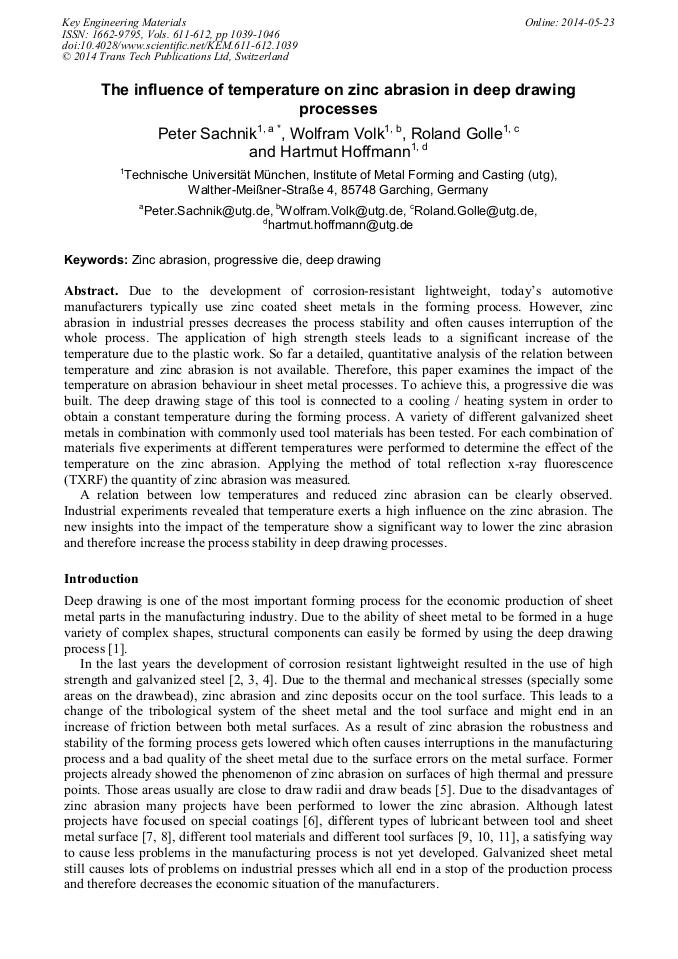

The Influence of Temperature on Zinc Abrasion in Deep Drawing Processes

Abstract:

Due to the development of corrosion-resistant lightweight, todays automotive manufacturers typically use zinc coated sheet metals in the forming process. However, zinc abrasion in industrial presses decreases the process stability and often causes interruption of the whole process. The application of high strength steels leads to a significant increase of the temperature due to the plastic work. So far a detailed, quantitative analysis of the relation between temperature and zinc abrasion is not available. Therefore, this paper examines the impact of the temperature on abrasion behaviour in sheet metal processes. To achieve this, a progressive die was built. The deep drawing stage of this tool is connected to a cooling / heating system in order to obtain a constant temperature during the forming process. A variety of different galvanized sheet metals compared to commonly used tool materials has been tested. For each combination of materials five experiments at different temperatures were performed to determine the effect of the temperature on the zinc abrasion. Applying the method of total reflection x-ray fluorescence (TXRF) the quantity of zinc abrasion was measured. A relation between low temperatures and reduced zinc abrasion can be clearly observed. Industrial experiments revealed that temperature exerts a high influence on the zinc abrasion. The new insights into the impact of the temperature show a significant way to lower the zinc abrasion and therefore increase the process stability in deep drawing processes.

• Periodical: Key Engineering Materials (Volumes 611-612)
• Pages: 1039-1046
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.611-612.1039
• Online since: May 2014
• Authors: Peter Sachnik*, Wolfram Volk, Roland Golle, Hartmut Hoffmann
• Keywords: Deep Drawing, Progressive Die, Zinc Abrasion

References

[1] Stock, G.: alternative Verfahren zur Verbesserung des Tiefziehergebnisses auf einfachwirkenden Pressen. Forschritt-Berichte BDI, Reihe 2, Nr. 380. Düsseldorf. BDI, (1996).

[2] Pfestorf, M.: Manufacturing of high strength steel and aluminum for a mixed material body in white. In: Advanced Materials Research, Bd. 6-8, 2005, S. 109-124.

[3] Staeves, J.; Pfestorf, M.: Einsatz höherfester Stähle im Automobilbau. 8. Umformtechnisches Kolloquium Darmstadt. Bamberg: Meisenbach, (2003).

[4] Weber, T.; Vöhringer, K. -D.: Innovative Produktionstechnologien für globale Märkte. 8. Umformtechnisches Kolloquium Darmstadt. Bamberg: Meisenbach, (2003).

[5] Henning, R.; Groche, P.: Investigation of Abrasive Behavior of Zinc-Coated Steel Sheets with a New Laboratory Test Method, In: Wissenschaftliche Gesellschaft für Produktionstechnik (WGP): Annals of the German Academic Society for Production Engineering XI, Nr. 2. Braunschweig, 2004, S. 17-22.

[6] Filzek, J.: Kombinierte Prüfmethode für das Reib-, Verschleiß- und Abriebverhalten beim Tief- und Streckziehen. Dissertation, Technische Universität Darmstadt, Berichte aus Produktion und Umformtechnik, Bd. 62, Aachen, Shaker, (2004).

[7] Nitzsche, G.: Reduzierung des Adhäsionsverschleißes beim Umformen von Aluminiumblechen. Dissertation, TU Darmstadt, (2007).

[8] Groche, P.; Nitzsche, G.; Callies, T.: Mechanisms in abrasive behavior of hot-dip zinc coatings on deep drawing steel sheets. In: Wissenschaftliche Gesellschaft für Produktionstechnik (WGP): Annals of the German Academic Society for Production Engineering XII, Nr. 2. Braunschweig, 2005, S. 61-64.

[9] v. d. Heide, E.; Burlat, M.; Bolt, P. J.; Schipper, D. J.: Wear of soft tool materials in sliding contact with zinc-coated steel sheet. In: Journal of Materials Processing Technology 141, 2003, 197-201.

DOI: 10.1016/s0924-0136(02)01046-4

[10] v. d. Heide, E.; Schipper, D. J.: Galling initiation due to frictional heating. In: Wear 254, 2003, S. 1127-1133.

DOI: 10.1016/s0043-1648(03)00324-7

[11] Kim, H.; Sung, J.; Goodwin, F. E.; Altan, T.: Investigation of galling in forming galvanized high strength steels (AHSSs) using the twist compression test (TGT). In: Journal of Materials Processing Technology 205, 2008, S. 459-468.

DOI: 10.1016/j.jmatprotec.2007.11.281

[12] Czichos, H.; Habig, K. -H.: Tribologie-Handbuch. 2. Auflage. Wiesbaden: Vieweg, (2003).

[13] Andrease J.L., Bay N., de Chiffre L.: Quantification of Galling in Sheet Metal Forming by Surface Topography Characterization, In: Int. J. Tools Manufac., 1998, P. 503-510.

DOI: 10.1016/s0890-6955(97)00095-3
