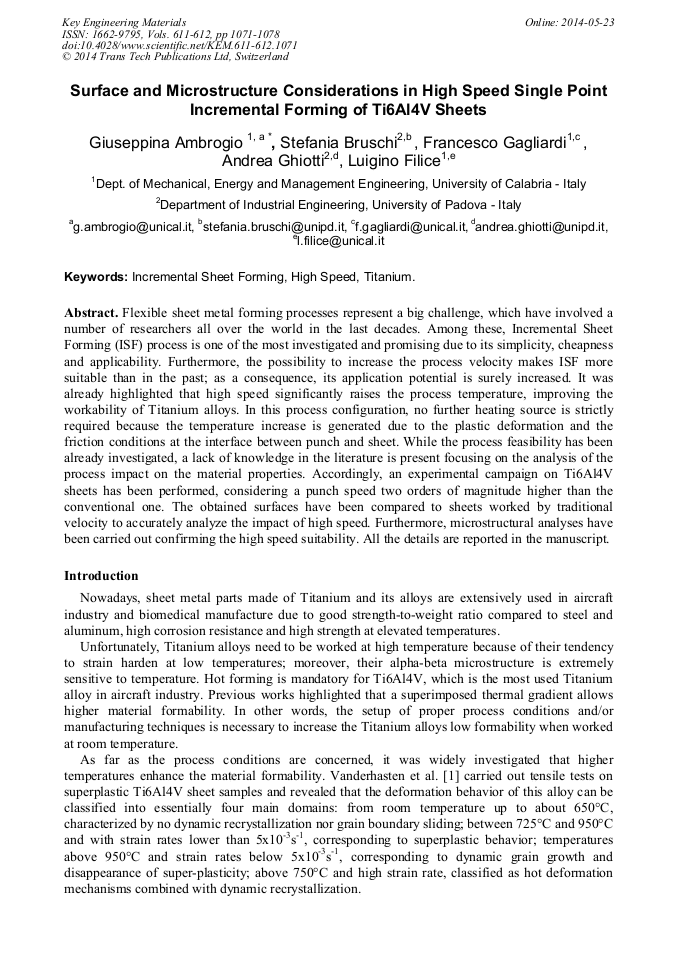

Surface and Microstructure Considerations in High Speed Single Point Incremental Forming of Ti6Al4V Sheets

Abstract:

Flexible sheet metal forming processes represent a big challenge, which involved a number of researchers all over the world in the last decades. Among these, Incremental Sheet Forming (ISF) process is one of the most investigated and promising due to its simplicity, cheapness and applicability. Furthermore, the possibility to increase the process velocity makes the ISF more suitable than in the past; as a consequence, its application potential is surely increased. It was already highlighted that high speed significantly raises the process temperature, improving the workability of Titanium alloys. In this process configuration, no further heating source is strictly required because the temperature increase is generated due to the plastic deformation and the friction conditions at the interface between the punch and the sheet. While the process feasibility has been already investigated, a lack of knowledge in the literature is present focusing on the analysis of the process impact on the material properties. Accordingly, an experimental campaign on Ti6Al4V sheets has been performed, considering a punch speed two orders of magnitude higher than the conventionally used one. The obtained surfaces have been compared to sheets worked by traditional velocity in order to accurately analyze the impact of high speed. Furthermore, microstructural analyses have been carried out confirming the high speed suitability. All the details are reported in the manuscript

• Periodical: Key Engineering Materials (Volumes 611-612)
• Pages: 1071-1078
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.611-612.1071
• Online since: May 2014
• Authors: Giuseppina Ambrogio*, Stefania Bruschi, Francesco Gagliardi, Andrea Ghiotti, Luigino Filice
• Keywords: High-Speed, Incremental Sheet Forming, Titanium

References

[1] M. Vanderhasten, L. Rabet, B. Verlinden, Ti–6Al–4V, deformation map and modelisation of tensile behaviour, Mater Des 29 (2008) 1090–1098.

DOI: 10.1016/j.matdes.2007.06.005

[2] T. Tsuzuku, Superplastic forming of aerospace metallic materials, Mater Sci Forum 304–306 (1999) 831–836.

DOI: 10.4028/www.scientific.net/msf.304-306.831

[3] L.D. Hefti , Elevated temperature fabrication of titanium aerospace components, Key Eng Mater 433 (2010) 49–55.

DOI: 10.4028/www.scientific.net/kem.433.49

[4] L. Ho-Sung, Y. Jong-Hoon, Y. Yeong-Moo, Manufacturing of titanium spherical and hollow cylinder vessel using blow forming, Key Eng Mater 433 (2010) 57–62.

DOI: 10.4028/www.scientific.net/kem.433.57

[5] G. Hussain, L. Gao, Y. Zhang, Formability evaluation of pure Titanium sheet in the cold incremental forming process, Int J Adv Manuf Tech 37 (2008) 920-926.

DOI: 10.1007/s00170-007-1043-7

[6] J.R. Duflou, B. Callebaut, J. Verbert, H. De Baerdemaeker, Laser assisted incremental forming: formability and accuracy improvement, Cirp Ann-Manuf Techn 56/1 (2007) 273-276.

DOI: 10.1016/j.cirp.2007.05.063

[7] G. Fan, F. Sun, X. Meng, L. Gao, G. Tong, Electric hot incremental forming of Ti-6Al-4V titanium sheet, Int J Adv Manuf Tech 49 (2010) 941-947.

DOI: 10.1007/s00170-009-2472-2

[8] G. Ambrogio, L. Filice, F. Gagliardi, Formability of lightweight alloys by hot incremental sheet forming, Mater Des 34 (2012) 501-508.

DOI: 10.1016/j.matdes.2011.08.024

[9] G. Palumbo, M. Brandizzi, Experimental investigations on the single point incremental forming of a titanium alloy component combining static heating with high tool rotation speed, Mater Des 40 (2012) 43-51.

DOI: 10.1016/j.matdes.2012.03.031

[10] G. Ambrogio, S. Bruschi, L. Filice, F. Gagliardi, On the High-speed Single Point Incremental Forming of Titanium Alloys, Cirp Ann-Manuf Techn 62/1 (2013) 243-246.

DOI: 10.1016/j.cirp.2013.03.053
