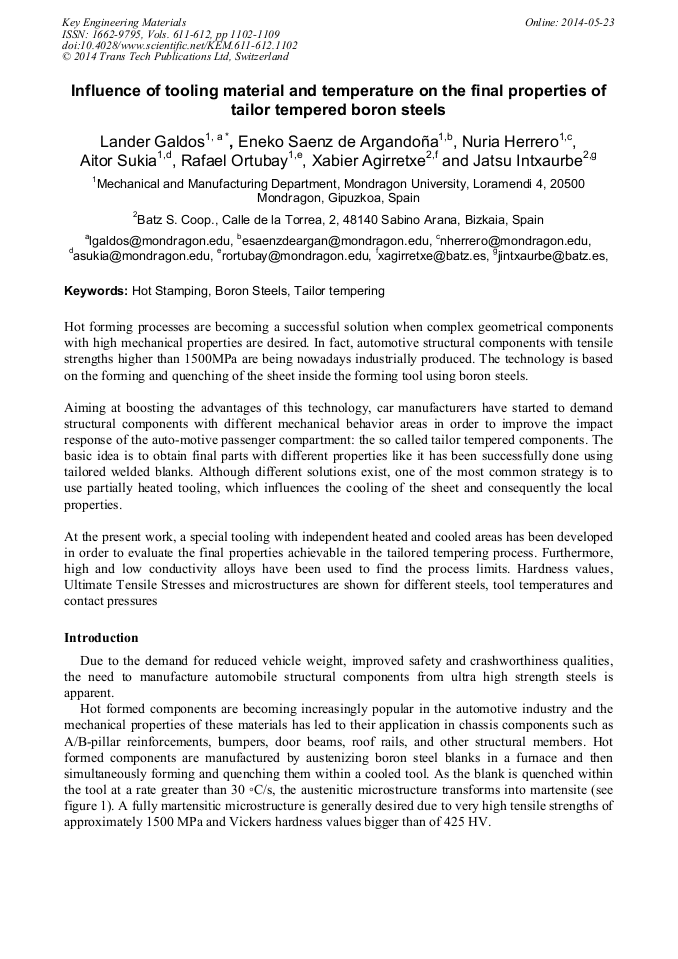

Influence of Tooling Material and Temperature on the Final Properties of Tailor Tempered Boron Steels

Abstract:

Hot forming processes are becoming a successful solution when complex geometrical components with high mechanical properties are desired. In fact, automotive structural components with tensile strengths higher than 1500MPa are being nowadays industrially produced. The technology is based on the forming and quenching of the sheet inside the forming tool using boron steels. Aiming at boosting the advantages of this technology, car manufacturers have started to demand structural components with different mechanical behavior areas in order to improve the impact response of the auto-motive passenger compartment: the so called tailor tempered components. The basic idea is to obtain final parts with different properties like it has been successfully done using tailored welded blanks. Although different solutions exist, one of the most common strategy is to use partially heated tooling, which influences the cooling of the sheet and consequently the local properties. At the present work, a special tooling with independent heated and cooled areas has been developed in order to evaluate the final properties achievable in the tailored tempering process. Furthermore, high and low conductivity alloys have been used to find the process limits. Hardness values, Ultimate Tensile Stresses and microstructures are shown for different steels, tool temperatures and contact pressures

• Periodical: Key Engineering Materials (Volumes 611-612)
• Pages: 1102-1109
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.611-612.1102
• Online since: May 2014
• Authors: Lander Galdos*, Eneko Sáenz de Argandoña, Nuria Herrero, Aitor Sukia, Rafa Ortubay, Xabier Agirretxe, Jatsu Intxaurbe
• Keywords: Boron Steels, Hot Stamping, Tailor Tempering

References

[1] H. Karbasian, A.E. Tekkaya, A review on hot stamping, Journal of Materials Processing Tech-nology 210 (2010) 2103–2118.

DOI: 10.1016/j.jmatprotec.2010.07.019

[2] Bardelcik, A., Salisbury, C., Winkler, S., Wells, M.A., Worswick, M.J., 2010, Effect of cooling rate on the high strain rate properties of boron steel, International Journal of Impact Engineering 37 (6), 694–702.

DOI: 10.1016/j.ijimpeng.2009.05.009

[3] Wilsius, J., Tavernier, B., Abou-Khalil, D., 2011, Experimental and numerical investigation of various hot stamped B-pillar concepts based on Usibor® 1500P, 3rd International Conference on Hot Sheet Metal Forming of High-Performance Steel, Kassel, Germany, p.427.

[4] Stöhr, T., Lechler, J., Merklein, M., 2009, In-vestigations on different strategies for influencing the microstructural properties with respect to partial hot stamping, 2nd International Conference on Hot Sheet Metal Forming of High-Performance Steel, Lulea, Sweden, p.273.

[5] Ghiotti, A., Borsetto, F., Bruschi, S., 2009, Investigation of the high strength steel Al–Si coat-ing during hot stamping operations, Key Engineer-ing Materials 410–411, 289–296.

DOI: 10.4028/www.scientific.net/kem.410-411.289

[6] Múnera, D.D., Pinard, F., Lacassin, L., 2008, Innovative press hardened steel based laser welded blanks solutions for weight savings and crash safety improvements, SAE International Journal of Materials and Manufacturing 1 (1), 472–479.

DOI: 10.4271/2008-01-1076

[7] Casas, B., Latre, D., Rodriguez, N., Valls, I., 2008, Tailor made tool materials for the present and upcoming tooling solutions in hot sheet metal forming, 1st International Conference on Hot Sheet Metal Forming of High Performance Steels, Kassel, Germany, p.23.

[8] Lenze, F.J., Banik, J., Sikora, S., 2008, Appli-cations of hot formed parts for body in white, International Deep Drawing Research Group IDDRG, 511–519.

[9] Banik, J., Lenze, F.J., Sikora, S., Laurenz, R., 2011, Tailored properties – a pivotal question for hot forming, 3rd International Conference on Hot Sheet Metal Forming of High-Performance Steel, Kassel, Germany, p.13–20.

[10] Merklein, M., Svec, T., 2010, Transformation kinetics of the hot stamping steel 22MnB5 in de-pendency of the applied deformation on the austenitic microstructure, IDDRG 2010 International Conference, Graz, Austria, p.71–80.

[11] Graff, S., Gerber, T., Lenze, F.J., Sikora, S., 2011, About the simulation of microstructure evo-lution in hot sheet stamping process and the corre-lation of resulting mechanical properties and crash-performance, 3rd International Conference on Hot Sheet Metal Forming of High-Performance Steel, Kassel, Germany, p.323.

[12] Ertürk, S., Sester, M., Selig, M., Feuser, P., Roll, K., 2011, A thermo-mechanicalmetallurgical FE approach for simulation of tailored tempering, International Conference on Hot Sheet Metal Forming of High-Performance Steel, Kassel, Ger-many, p.447.

DOI: 10.1063/1.3623664

[13] Feuser, P., Schweiker, T., Merklein, M., 2011, Partially hot-formed parts from 22MnB5 – process window, material characteristics and component test results, 10th International Conference on Tech-nology of Plasticity, Aachen, Germany, p.408–413.
