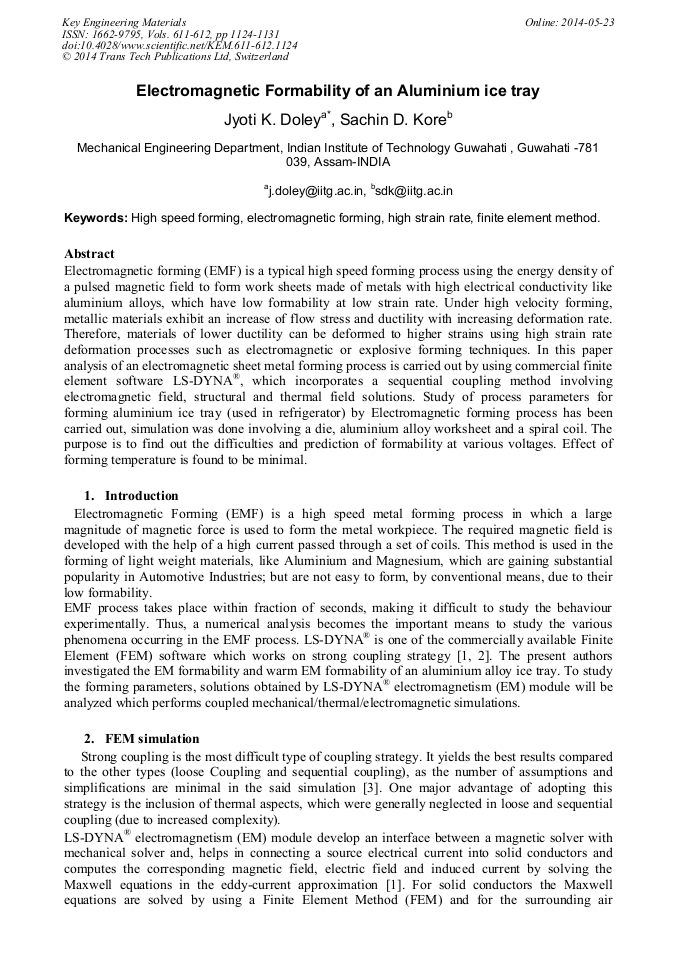

Electromagnetic Formability of an Aluminium Ice Tray

Abstract:

Electromagnetic forming (EMF) is a typical high speed forming process using the energy density of a pulsed magnetic field to form work sheets made of metals with high electrical conductivity like aluminium alloys, which have low formability at low strain rate. Under high velocity forming, metallic materials exhibit an increase of flow stress and ductility with increasing deformation rate. Therefore, materials of lower ductility can be deformed to higher strains using high strain rate deformation processes such as electromagnetic or explosive forming techniques. In this paper analysis of an electromagnetic sheet metal forming process is carried out by using commercial finite element software LS-DYNA^®, which incorporates a sequential coupling method involving electromagnetic field, structural and thermal solutions. Study of process parameters for forming aluminium ice tray (used in refrigerator) by Electromagnetic forming process has been carried out, simulation was done involving a die, Al worksheet and a spiral coil.

• Periodical: Key Engineering Materials (Volumes 611-612)
• Pages: 1124-1131
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.611-612.1124
• Online since: May 2014
• Authors: Jyoti Kumar Doley*, Sachin D. Kore
• Keywords: Electromagnetic Forming, Finite Element Method (FEM), High Speed Forming, High Strain Rate

References

[1] P. L'Eplattenier, Grant Cook, Cleve Ashcraft, Mike Burger, Art Shapiro; Livermore Software Corporation Corporation , Glenn Daehn, Mala Seth; Dept. of Material Sc. And Eng., The Ohio State University, Introduction of an Electromagnetism Module in LS-DYNA for Coupled Mechanical-Thermal-Electromagnetic Simulations; 9th International LS-DYNA® Users Conference, 2006, Pg. 17-1 to 17-8.

[2] P. L'Eplattenier, C. Ashcraft, I. Ulacia, An MPP version of the Electromagnetism Module in LS-DYNA for 3D Coupled Mechanical-Thermal-Electromagnetic Simulations, 4th International Conference on High speed forming-2010, Pg. 250-263.

[3] G. Johnson, W. Cook, 1983. A Constitutive Model and Data for Metals Subjected to Large Strains, High Strain Rates and High Temperatures. In: Proc. 7th International Symposium On Ballistics, p.541–547.

[4] C. Karch , K. Roll , Transient simulation of Electromagnetic Forming of Aluminium Tubes, Advanced Materials Research Vols. 6-8 (2005) pp.639-646.

[5] J. Imbert, Pierre L'eplattenier, Michael Worswick; Comparison Between Experimental And Numerical Results of Electromagnetic Forming Processes; 10th International LS-DYNA® Users Conference, 2008, Pg. 12-33 to 12-44.

[6] G. Bartels, W. Schaetzing, H.P. Scheibe, M. Leone; Simulation Models of The Electromagnetic Forming Process; Proceedings of the 2nd Euro-Asian Pulsed Power Conference, Vilnius, Lithuania, September 22-26, 2008. Pg. 1128-1129.

DOI: 10.12693/aphyspola.115.1128

[7] D. Risch, A. Brosius, C. Beerwald, M. Kleiner; Analysis of the Electromagnetic Sheet Metal Forming Process with ANSYS by a Coupled Simulation; 22nd CAD-FEM Users' Meeting 2004, International Congress on FEM Technology with ANSYS CFX & ICEM CFD Conference, November 10-12, 2004, International Congress Center Dresden, Germany.

[8] J.K. Doley, S.D. Kore, Fully Coupled Numerical Simulation of Electromagnetic Forming, ESAFORM 2012, Key Engineering Materials Vols. 504-506 (2012) pp.1201-1206.

DOI: 10.4028/www.scientific.net/kem.504-506.1201

[9] J.K. Doley, S.D. Kore, Studies on Temperature Distribution in Electromagnetic Welding Process, Materials Performance and Characterization, Vol. 9, No. 6, American Society for Testing and Materials (ASTM), 2012. ISSN: 2165-3992, p-11.

DOI: 10.1520/mpc104385
