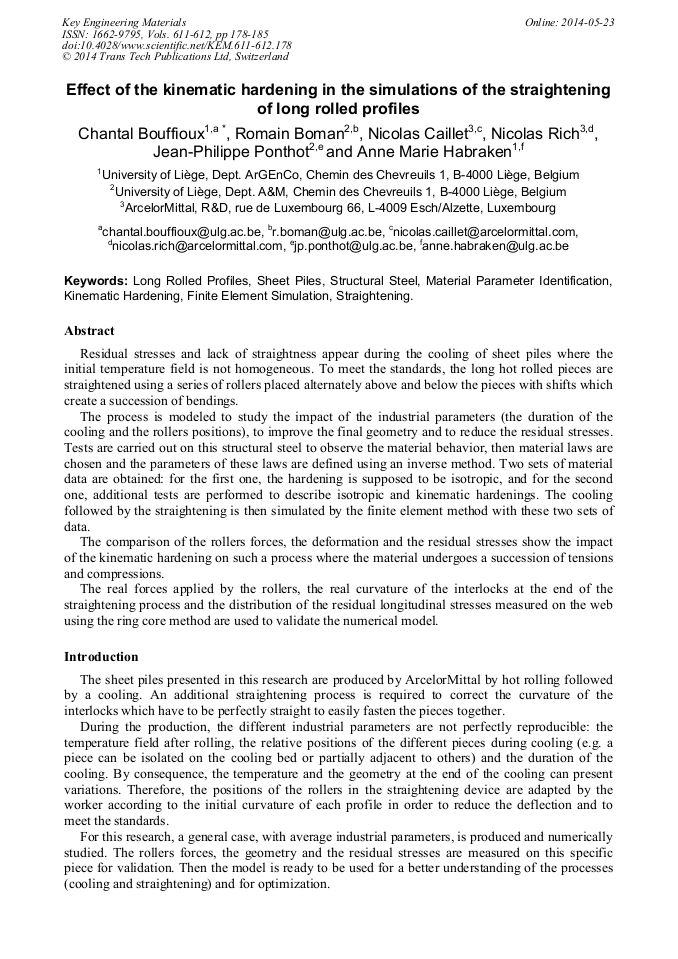

Effect of the Kinematic Hardening in the Simulations of the Straightening of Long Rolled Profiles

Abstract:

Residual stresses and lack of straightness appear during the cooling of sheet piles where the initial temperature field is not homogeneous. To meet the standards, the long hot rolled pieces are straightened using a series of rollers placed alternately above and below the pieces with shifts which create a succession of bendings. The process is modeled to study the impact of the industrial parameters (the duration of the cooling and the rollers positions), to improve the final geometry and to reduce the residual stresses. Tests are carried out on this structural steel to observe the material behavior, then material laws are chosen and the parameters of these laws are defined using an inverse method. Two sets of material data are obtained: for the first one, the hardening is supposed to be isotropic, and for the second one, additional tests are performed to describe isotropic and kinematic hardenings. The cooling followed by the straightening is then simulated by the finite element method with these two sets of data. The comparison of the rollers forces, the deformation and the residual stresses show the impact of the kinematic hardening on such a process where the material undergoes a succession of tensions and compressions. The real forces applied by the rollers, the real curvature of the interlocks at the end of the straightening process and the distribution of the residual longitudinal stresses measured on the web using the ring core method are used to validate the numerical model.

• Periodical: Key Engineering Materials (Volumes 611-612)
• Pages: 178-185
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.611-612.178
• Online since: May 2014
• Authors: Chantal Bouffioux*, Romain Boman, Nicolas Caillet, Nicolas Rich, Jean Philippe Ponthot, Anne Marie Habraken
• Keywords: Finite Element (FE) Simulation, Kinematic Hardening, Long Rolled Profiles, Material Parameter Identification, Sheet Piles, Straightening, Structural Steel

References

[1] Metafor : http: /metafor. ltas. ulg. ac. be.

[2] Q.V. Bui, L. Papeleux and J. -P. Ponthot: Numerical simulation of springback using enhanced assumed strain elements, Journal of Materials Processing Technology 153-154 (2004), 314-318.

DOI: 10.1016/j.jmatprotec.2004.04.342

[3] R. Boman and J. -P. Ponthot, Continuous Roll Forming Simulation using Arbitrary Lagrangian Eulerian Formalism, Key Engineering Materials 473 (2011) 564-571.

DOI: 10.4028/www.scientific.net/kem.473.564

[4] P. Flores, L. Duchêne, C. Bouffioux, T. Lelotte, C. Henrard, N. Pernin, A. Van Bael, S. He, J. Duflou, A.M. Habraken, Model Identification and FE Simulations: Effect of Different Yield Loci and Hardening Laws in Sheet Forming, International Journal of Plasticity 23/3 (2007).

DOI: 10.1016/j.ijplas.2006.05.006

[5] C. Bouffioux, P. Eyckens, C. Henrard, R. Aerens, A. Van Bael, H. Sol, J.R. Duflou, A.M. Habraken, Identification of material parameters to predict Single Point Incremental Forming forces, International Journal of Material Forming (2008).

DOI: 10.1007/s12289-008-0183-0

[6] G. Schleinzer, F.D. Fischer, Residual stress formation during the roller straightening of railway rails, International Journal of Mechanical Sciences 43 (2001) 2281-2295.

DOI: 10.1016/s0020-7403(01)00041-8

[7] L. Duchêne, A.M. Habraken, Analysis of the sensitivity of FEM predictions to numerical parameters in deep drawing simulations, European J. of Mechanics - A/Solids 24 (2005) 614-629.

DOI: 10.1016/j.euromechsol.2005.04.007

[8] C. Bouffioux, C. Lequesne, H. Vanhove, J.R. Duflou, P. Pouteau, L. Duchene, A.M. Habraken, Experimental and numerical study of an AlMgSc sheet formed by an incremental process, Journal of Materials Processing Technology 211 (2011) 1684-1693.

DOI: 10.1016/j.jmatprotec.2011.05.010

[9] V. Tuninetti, G. Gilles, O. Milis, I. Neira, A.M. Habraken, Quasi-static mechanical behaviour of Ti-6Al-4V alloy at room Temperature, Proceedings of the XII International Conference on Computational Plasticity – Fundamentals and Applications (2013).

DOI: 10.1016/j.ijplas.2014.10.003
