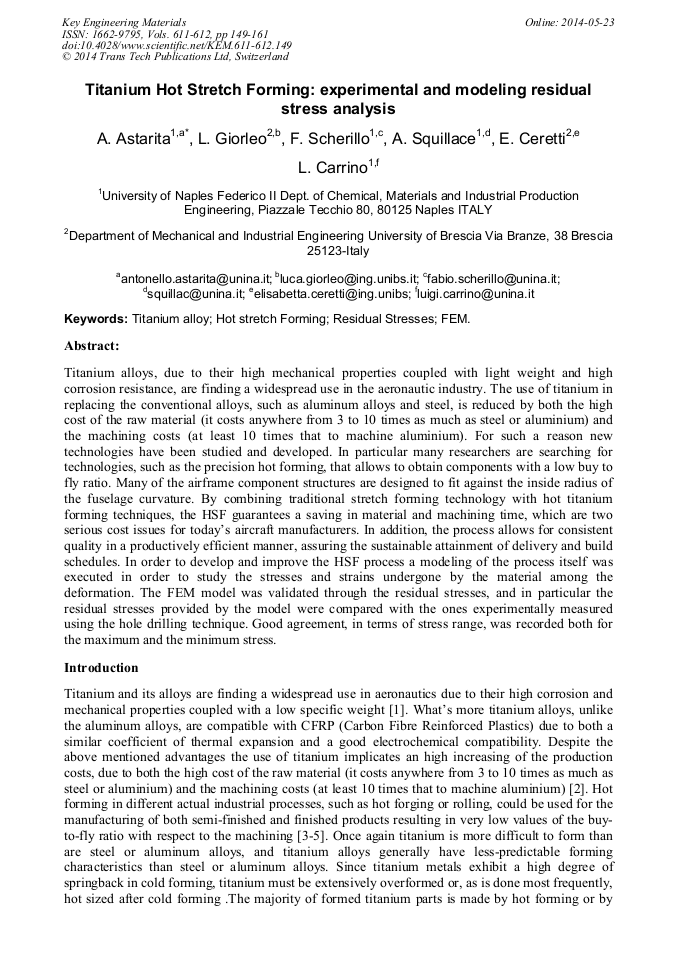

Titanium Hot Stretch Forming: Experimental and Modeling Residual Stress Analysis

Abstract:

Titanium alloys, due to their high mechanical properties coupled with light weight and high corrosion resistance, are finding a widespread use in the aeronautic industry. The use of titanium in replacing the conventional alloys, such as aluminum alloys and steel, is reduced by both the high cost of the raw material (it costs anywhere from 3 to 10 times as much as steel or aluminium) and the machining costs (at least 10 times that to machine aluminium). For such a reason new technologies have been studied and developed. In particular many researchers are searching for technologies, such as the precision hot forming, that allows to obtain components with a low buy to fly ratio. Many of the airframe component structures are designed to fit against the inside radius of the fuselage curvature. By combining traditional stretch forming technology with hot titanium forming techniques, the HSF guarantees a saving in material and machining time, which are two serious cost issues for todays aircraft manufacturers. In addition, the process allows for consistent quality in a productively efficient manner, assuring the sustainable attainment of delivery and build schedules. In order to develop and improve the HSF process a modeling of the process itself was executed in order to study the stresses and strains undergone by the material among the deformation. The FEM model was validated through the residual stresses, and in particular the residual stresses provided by the model were compared with the ones experimentally measured using the hole drilling technique. Good agreement, in terms of stress range, was recorded both for the maximum and the minimum stress.

• Periodical: Key Engineering Materials (Volumes 611-612)
• Pages: 149-161
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.611-612.149
• Online since: May 2014
• Authors: Antonello Astarita*, Luca Giorleo, Fabio Scherillo, Antonino Squillace, Elisabetta Ceretti, Luigi Carrino
• Keywords: Finite Element Method (FEM), Hot Stretch Forming, Residual Stress, Titanium Alloy

References

[1] R.R. Boyer, An overview on the use of titanium in the aerospace industry, Materials Science and Engineering A213 (1996) 103-114.

[2] E.O. Ezugwu, Z.M. Wang, Titanium alloys and their machinability a review, Journal of Materials Processing Technology 68 (1997) 262-274.

DOI: 10.1016/s0924-0136(96)00030-1

[3] Baufeld B, Van der Biest O, Gault R. Microstructure of Ti–6Al–4V specimens produced by shaped metal deposition. Int J Mater Res 2009; 100: 1536–42.

DOI: 10.3139/146.110217

[4] Baufeld B, Van Der Biest O. Mechanical properties of Ti–6Al–4V specimens produced by shaped metal deposition. Sci Technol Adv Mater 2009; 10: 1–10.

DOI: 10.1088/1468-6996/10/1/015008

[5] Baufeld B, Van Der Biest O, Gault R. Additive manufacturing of Ti–6Al–4V components by shaped metal deposition: microstructure and mechanical properties. Mater Des 2010; 31: 106–11.

DOI: 10.1016/j.matdes.2009.11.032

[6] A. Astarita, E. Armentani, E. Ceretti, L. Giorleo, P. Mastrilli, V. Paradiso, F. Scherillo, A. Squillace, C. Velotti - Hot Stretch Forming of a titanium alloy component for aeronautic: mechanical and modeling - Key Engineering Materials Vols. 554-557 (2013).

DOI: 10.4028/www.scientific.net/kem.554-557.647

[7] Yashar Javadi , Seyedali Sadeghi, Mehdi Ahmadi Najafabadi - Taguchi optimization and ultrasonic measurement of residual stresses in the friction stir welding, Materials and Design 55 (2014) 27–34.

DOI: 10.1016/j.matdes.2013.10.021

[8] Rossini NS, Dassisti M, Benyounis KY, Olabi AG. Methods of measuring residual stresses in components. J Mater Des 2012; 35: 572–88.

DOI: 10.1016/j.matdes.2011.08.022

[9] Olabi AG, Hashmi MSJ. The effect of post-weld heat-treatment on mechanical properties and residual-stresses mapping in welded structural steel. J Mater Process Technol 1995; 55: 117–22.

DOI: 10.1016/0924-0136(95)01794-1

[10] Olabi AG, Hashmi MSJ. The microstructure and mechanical properties of low carbon steel welded components after the application of PWHTs. J Mater Process Technol 1996; 56: 88–97.

DOI: 10.1016/0924-0136(95)01824-7

[11] Olabi AG, Hashmi MSJ. Stress relief procedures for low carbon steel (1020) welded components. J Mater Process Technol 1996; 56: 552–62.

DOI: 10.1016/0924-0136(95)01869-7

[12] R. Boyer, E.W. Collings, and G. Welsch - Materials Properties Handbook: Titanium Alloys, ASM International.

[13] A. Astarita, A. Ducato, L. Fratini, V. Paradiso, F. Scherillo, A. Squillace, C. Testani, C. Velotti -Beta Forging of Ti-6Al-4V: microstructure evolution and mechanical properties - Key Engineering Materials Vols. 554-557 (2013).

DOI: 10.4028/www.scientific.net/kem.554-557.359

[14] H.T. Lee, C. Liu - Optimizing the EDM hole-drilling strain gage method for the measurement of residual stress, Journal of Materials Processing Technology 209 (2009) 5626–5635.

DOI: 10.1016/j.jmatprotec.2009.05.028

[15] E. Ceretti, Mazzoni L., Giardini C, 3D FEM geometry and material flow optimization of porthole-die extrusion, MATERIALS PROCESSING AND DESIGN; Modeling, Simulation and Applications - NUMIFORM '07: 9th International Conference on Numerical Methods in Industrial Forming Processes. 908 (2007).

DOI: 10.1063/1.2740847

[16] Ceretti E., Giardini C., Giorleo L., 3D Validation of hot ring rolling industrial process 3D simulation, International Journal of Material Forming. On line published (2011) 1-8.

DOI: 10.1007/s12289-011-1056-5
