The Effect of Mandrel Configuration on the Warpage in Pultrusion of Rectangular Hollow Profiles

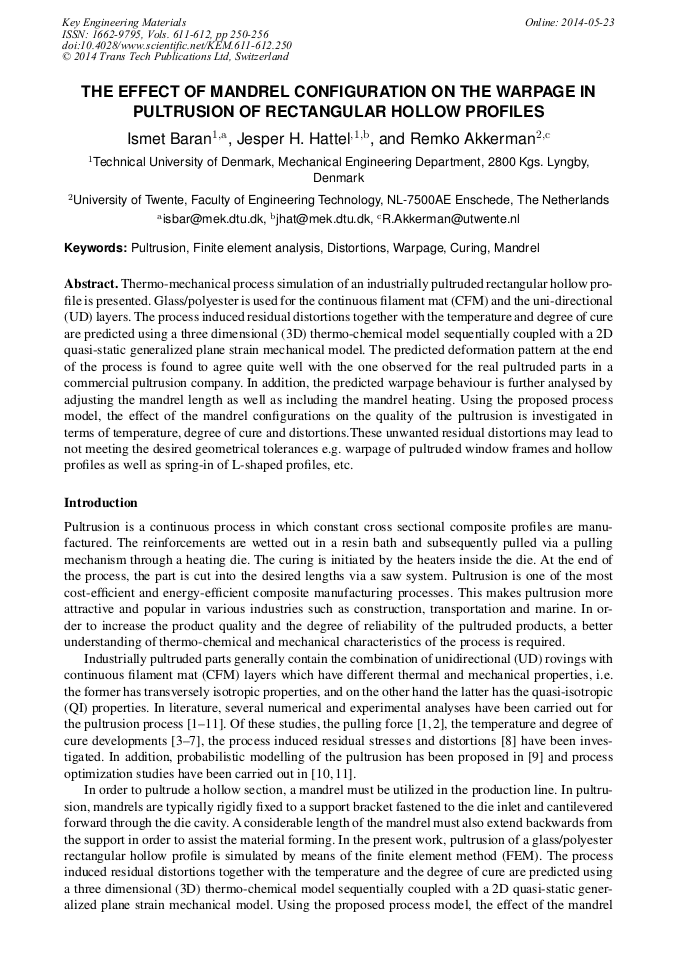

Article Preview

Abstract:

Thermo-mechanical process simulation of an industrially pultruded rectangular hollow profile is presented. Glass/polyester is used for the continuous filament mat (CFM) and the uni-directional (UD) layers. The process induced residual distortions together with the temperature and degree of cure are predicted using a three dimensional (3D) thermo-chemical model sequentially coupled with a 2D quasi-static generalized plane strain mechanical model. The predicted deformation pattern at the end of the process is found to agree quite well with the one observed for the real pultruded parts in a commercial pultrusion company. In addition, the predicted warpage behaviour is further analysed by adjusting the mandrel length as well as including the mandrel heating. Using the proposed process model, the effect of the mandrel configurations on the quality of the pultrusion is investigated in terms of temperature, degree of cure and distortions.These unwanted residual distortions may lead to not meeting the desired geometrical tolerances e.g. warpage of pultruded window frames and hollow profiles as well as spring-in of L-shaped profiles, etc.

You might also be interested in these eBooks
Material Forming ESAFORM 2014 View Preview

Info:

Periodical:

Key Engineering Materials (Volumes 611-612)

Pages:

250-256

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.611-612.250

Citation:

Cite this paper

Online since:

May 2014

Authors:

Ismet Baran*, Jesper Hattel, Remko Akkerman

Keywords:

Curing, Distortion, Finite Element Analysis (FEA), Mandrel, Pultrusion, Warpage

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2014 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] Moschiar SM, Reboredo MM, Larrondo H, Vazquez A. Pultrusion of epoxy matrix composites: pulling force model and thermal stress analysis. Polymer Composites 1996; 17(6): 850-858.

DOI: 10.1002/pc.10678

Google Scholar

[2] Carlone P, Baran I, Hattel JH, Palazzo GS. Computational Approaches for Modeling the Multiphysics in Pultrusion Process. Advances in Mechanical Engineering, vol. 2013, Article ID 301875, 14 pages, 2013. doi: 10. 1155/2013/301875.

DOI: 10.1155/2013/301875

Google Scholar

[3] Valliappan M, Roux JA, Vaughan JG, Arafat ES. Die and post-die temperature and cure in graphite-epoxy composites. Compos Part B-Eng 1996; 27: 1-9.

DOI: 10.1016/1359-8368(95)00001-1

Google Scholar

[4] Chachad YR, Roux JA, Vaughan JG, Arafat E. Three-dimensional characterization of pultruded fiberglass-epoxy composite materials. J Reinf Plast Comp 1995; 14: 495-512.

DOI: 10.1177/073168449501400506

Google Scholar

[5] Baran I, Hattel JH, Tutum CC. Thermo-Chemical Modelling Strategies for the Pultrusion Process. App Compos Mat. 2013; 20(6): 1247-1263.

DOI: 10.1007/s10443-013-9331-x

Google Scholar

[6] Baran I, Tutum CC, Hattel JH. The effect of thermal contact resistance on the thermosetting pultrusion process. Compos Part B: Eng 2013; 45: 995-1000.

DOI: 10.1016/j.compositesb.2012.09.049

Google Scholar

[7] Carlone P, Palazzo GS, Pasquino R. Pultrusion manufacturing process development by computational modelling and methods. Math Comput Model 2006; 44: 701-709.

DOI: 10.1016/j.mcm.2006.02.006

Google Scholar

[8] Baran I, Tutum CC, Nielsen MW, Hattel JH. Process induced residual stresses and distortions in pultrusion. Compos Part B: Eng 2013; 51: 148-161.

DOI: 10.1016/j.compositesb.2013.03.031

Google Scholar

[9] Baran I, Tutum CC, Hattel JH. Reliability estimation of the pultrusion process using the firstorder reliability method (FORM). App Compos Mat. 2012; 20: 639-653.

DOI: 10.1007/s10443-012-9293-4

Google Scholar

[10] Baran I, Tutum CC, Hattel JH. Optimization of the thermosetting pultrusion process by using hybrid and mixed integer genetic algorithms. App Compos Mat. 2012; 20: 449-463.

DOI: 10.1007/s10443-012-9278-3

Google Scholar

[11] Carlone P, Palazzo GS. Pultrusion manufacturing process development: Cure optimization by hybrid computational methods. Comput. Math. Appl. 2007; 53: 1464-1471.

DOI: 10.1016/j.camwa.2006.02.031

Google Scholar

[12] ABAQUS 6. 11 Reference Guide. Dassault Systems (2011).

Google Scholar

[13] Johnston A. An Integrated Model of the Development of Process-Induced Deformation in Autoclave Processing of Composites Structures, Ph.D. thesis, The University of British Columbia, Vancouver (1997).

Google Scholar

[14] Bogetti TA, Gillespie Jr JW. Process-induced stress and deformation in thick-section thermoset composite laminates. J Compos Mater, 1992; 26(5): 626-660.

DOI: 10.1177/002199839202600502

Google Scholar

[15] Akkerman R. On the properties of quasi-isotropic laminates. Compos part B: Eng, 2002; 33: 133- 140.

Google Scholar
