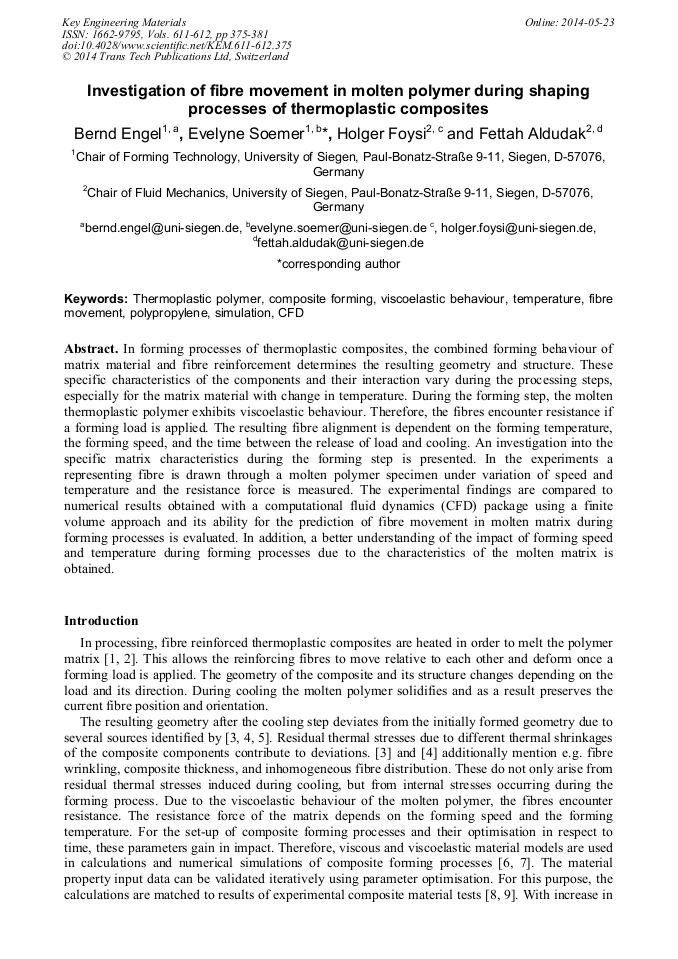

Investigation of Fibre Movement in Molten Polymer during Shaping Processes of Thermoplastic Composites

Abstract:

In forming processes of thermoplastic composites, the combined forming behaviour of matrix material and fibre reinforcement determines the resulting geometry and structure. These specific characteristics of the components and their interaction vary during the processing steps, especially for the matrix material with change in temperature. During the forming step, the molten thermoplastic polymer exhibits viscoelastic behaviour. Therefore, the fibres encounter resistance if a forming load is applied. The resulting fibre alignment is dependent on the forming temperature, the forming speed, and the time between the release of load and cooling. An investigation into the specific matrix characteristics during the forming step is presented. In the experiments a representing fibre is drawn through a molten polymer specimen under variation of speed and temperature and the resistance force is measured. The experimental findings are compared to numerical results obtained with a computational fluid dynamics (CFD) package using a finite volume approach and its ability for the prediction of fibre movement in molten matrix during forming processes is evaluated. In addition, a better understanding of the impact of forming speed and temperature during forming processes due to the characteristics of the molten matrix is obtained.

• Periodical: Key Engineering Materials (Volumes 611-612)
• Pages: 375-381
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.611-612.375
• Online since: May 2014
• Authors: Bernd Engel, Evelyne Soemer*, Holger Foysi, Fettah Aldudak
• Keywords: CFD, Composite Forming, Fibre Movement, Polypropylene (PP), Simulation, Temperature, Thermoplastic Polymer, Viscoelastic Behaviour

References

[1] S. G. Advani, E. M. Sozer, Process modeling in composites manufacturing, New York: Marcel Dekker, 59 (2003) 146.

[2] A.J.M. Spencer, Theory of fabric-reinforced viscous fluids, In: Composites Part A: Applied Science and Manufacturing, 31/12 (2000) 1311-1321.

DOI: 10.1016/s1359-835x(00)00006-3

[3] A. Salomi, et al., Spring-in angle as molding distortion for thermoplastic matrix composite, Composites Science and Technology, 68/14 (2008) 3047-3054.

DOI: 10.1016/j.compscitech.2008.06.024

[4] Z. Padovec, M. Ruzicka, V. Stavrovsky, Springback analysis of thermoplastic composite plates. Applied and Computational Mechanics. 6 (2012) 25-34.

[5] P. P. Parlevliet, H. E. N. Bersee, Beukers, A., Residual stresses in thermoplastic composites—A study of the literature—Part I: Formation of residual stresses. Composites Part A: Applied Science and Manufacturing, 37/11 (2006) 1847-1857.

DOI: 10.1016/j.compositesa.2005.12.025

[6] T. -C. Lim, S. Ramakrishna, Modelling of composite sheet forming: A review, Composites Part A: Applied Science and Manufacturing, 33 (2002) 515–537.

DOI: 10.1016/s1359-835x(01)00138-5

[7] T. Gereke, O. Dröbing, M. Hübner, C. Cherif, Experimental and computational composite textile reinforcement forming: A review, Composites: Part A, 46 (2013) 1-10.

DOI: 10.1016/j.compositesa.2012.10.004

[8] M. T. Abadi, Viscoelastic Model for Thermoforming Process of Thermoplastic Composite Sheets, " In: 9th International Conference on Flow Processes in Composite Materials, Montreal, Canada, 06. -07. 07. (2008).

[9] S. P. Haanappel, R. ten Thije, and R. Akkerman, Constitutive modelling of UD reinforced thermoplastic laminates. In: The 10th International Conference on Flow Processes in Composite Materials, Monte Verità, Ascona, CH, 11-15. 07. (2010).

[10] See www. openfoam. org.

[11] M. M. Cross, Rheology of non-newtonian fluids: A new flow equation for pseudoplastic systems, J. Colloid Sci., 20/05 (1965) 417–437.

DOI: 10.1016/0095-8522(65)90022-x
