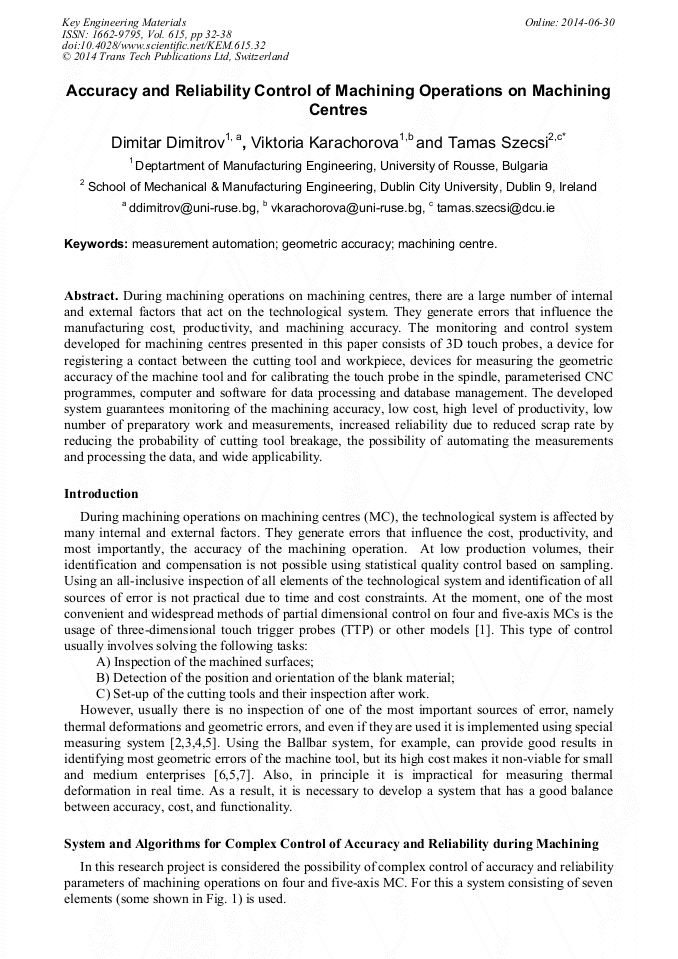

Accuracy and Reliability Control of Machining Operations on Machining Centres

Abstract:

During machining operations on machining centres, there are a large number of internal and external factors that act on the technological system. They generate errors that influence the manufacturing cost, productivity, and machining accuracy. The monitoring and control system developed for machining centres presented in this paper consists of 3D touch probes, a device for registering a contact between the cutting tool and workpiece, devices for measuring the geometric accuracy of the machine tool and for calibrating the touch probe in the spindle, parameterised CNC programmes, computer and software for data processing and database management. The developed system guarantees monitoring of the machining accuracy, low cost, high level of productivity, low number of preparatory work and measurements, increased reliability due to reduced scrap rate by reducing the probability of cutting tool breakage, the possibility of automating the measurements and processing the data, and wide applicability.

• Periodical: Key Engineering Materials (Volume 615)
• Pages: 32-38
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.615.32
• Online since: June 2014
• Authors: D. Dimitrov, Viktoria Karachorova, Tamas Szecsi*
• Keywords: Geometric Accuracy, Machining Centre, Measurement Automation

References

[1] D. Dimitrov, A new design for a three dimensional touch-trigger probe, Proc. of the XX Congress of Chemists and Technologists of Macedonia, Ohrid, Macedonia (2008).

[2] E. Bohez, Compensating for Systematic Errors in 5-Axis NC Machining, Journal of Computer Aided Design. 34 (2002) 391-403.

DOI: 10.1016/s0010-4485(01)00111-7

[3] T Paweł, J. Jerzy and M. Wojciech, Methods of machine tool error compensation, Journal of Machine Engineering. 10 (2010).

[4] N. Jun, CNC Machine Accuracy Enhancement Through Real-Time Error Compensation, Materials of the Department of Mechanical Engineering and Applied Mechanics, The University of Michigan, Ann Arbor.

[5] Y. Zhang, J. Yang and K. Zhang, Geometric error measurement and compensation for the rotary table of five-axis machine tool with double ballbar: submitted to Int. Journal of Advanced Manufacturing Technology (2012).

DOI: 10.1007/s00170-012-4166-4

[6] J. Ziegert and C. Mize, Laser Ball Bar: a New Instrument for Machine Tool Metrology, Journal of Precision Engineering. 16 (1994) 259-267.

DOI: 10.1016/0141-6359(94)90002-7

[7] J. Mayr, M. Ess, S. Weikert and K. Wegener, Calculating Thermal Location and Component Errors on Machine Tools, Information on http: /www. inspire. ethz. ch/ConfiguratorJM/publications/ CALCULATIN_129500762080769/2839. pdf.

[8] G. Nenov and T. Szecsi, Increasing CNC machine tool productivity by using tool-part touch control, Journal of Robotics and Computer Integrated Manufacturing. 18 (2002) 291-296.

DOI: 10.1016/s0736-5845(02)00020-0

[9] V. Karachorova and D. Dimitrov, Opportunities for automatic diagnostics of machining centres, Proc. of RU and SU – 2011 Conference, Rousse, Bulgaria. 5 (2011) 78-82.

[10] V. Karachorova, Investigation of accuracy of coordinate measurements of machining centres, Proc. of RU and SU – 2011 Conference, Rousse, Bulgaria. 5 (2011).
