For Libraries For Publication Open Access Downloads About Us Contact Us
Paper Titles
Fabrication of Hollow Silica-Alumina Composite Spheres Using L(+)-Arginine and their Catalytic Performance for Hydrolytic Dehydrogenation of Ammonia Borane
p.170
Magnetic and Fluorescent Hybrid Silica Nanoparticles Based on the Co-Encapsulation of γ-Fe2O3 Nanocristals and [Mo6Br14]2- Luminescent Nanosized Clusters by Water-in-Oil Microemulsion
p.174
Multi-Functional Silica Nanoparticles Based on Metal Atom Clusters: From Design to Toxicological Studies
p.179
Nanohole Coat/Fill with Pt via Chemical Deposition in Supercritical Fluids
p.184
Preparation of CuCrO2 Powders with High Surface Areas
p.187
Preparation of Novel TiO2-Silica Filter Photocatalyst Derived from Titanium Alkoxy-Diolate Precursor
p.191
Synthesis and Growth Mechanism of SiC/SiO2 Core-Shell Nanowires by Thermal Evaporation Method
p.195
Evaluation of Iodine-Adsorption on Magnesium Compounds Toward Fixing of Radioactive Iodine
p.201
Fabrication and Fracture Toughness of CNTs/Alumina Composites with Fine Microstructures
p.205

Preparation of CuCrO2 Powders with High Surface Areas

Article Preview

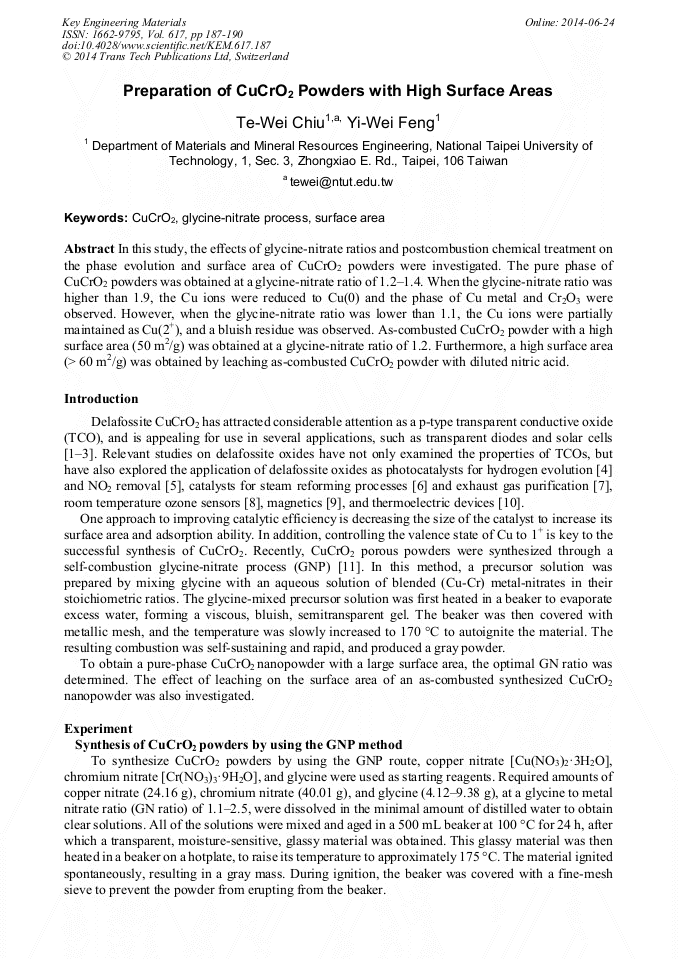

Abstract:

In this study, the effects of glycine-nitrate ratios and postcombustion chemical treatment on the phase evolution and surface area of CuCrO2 powders were investigated. The pure phase of CuCrO2 powders was obtained at a glycine-nitrate ratio of 1.2–1.4. When the glycine-nitrate ratio was higher than 1.9, the Cu ions were reduced to Cu(0) and the phase of Cu metal and Cr2O3 were observed. However, when the glycine-nitrate ratio was lower than 1.1, the Cu ions were partially maintained as Cu(2+), and a bluish residue was observed. As-combusted CuCrO2 powder with a high surface area (50 m2/g) was obtained at a glycine-nitrate ratio of 1.2. Furthermore, a high surface area (> 60 m2/g) was obtained by leaching as-combusted CuCrO2 powder with diluted nitric acid.

You might also be interested in these eBooks
Inorganic and Environmental Materials View Preview

Info:

Periodical:

Key Engineering Materials (Volume 617)

Pages:

187-190

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.617.187

Citation:

Cite this paper

Online since:

June 2014

Authors:

Te Wei Chiu*, Yi Wei Feng

Keywords:

CuCrO2, Glycine-Nitrate Process, Surface Area

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2014 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] R. Nagarajan, A. D. Draeseke, A. W. Sleight, J. Tate, J. Appl. Phys. 89 (2001) 8022-8025.

Google Scholar

[2] T.W. Chiu, K. Tonooka, N. Kikuchi, Vacuum 83 (2009) 614-617.

Google Scholar

[3] T.W. Chiu, S. W. Tsai, Y. P. Wang, K. H. Hsu, Ceram. Int., 38 (2012) 8673-8676.

Google Scholar

[4] S. Saadi, A. Bouguelia, M. Trari, Sol. Energy 80 (2006) 272-280.

Google Scholar

[5] W. Ketir, A. Bouguelia, M. Trari, Water Air Soil Pollut. 199 (2009) 115–122.

DOI: 10.1007/s11270-008-9864-z

Google Scholar

[6] S. kameoka, M. Okada, A. P. Tsia, Catal. Letters. 120 (2008) 252-256.

Google Scholar

[7] Delafossite Type Oxide, Method for Manufacturing the Exhaust Gas Purification Catalyst, Japanese Patent No. 2008-156130.

Google Scholar

[8] S. Zhou, X. Fang. Deng, D. Li, W. Dong, R. Tao, G. Meng, T. Wang, Sens. Actuators, B143 (2009) 119-123.

Google Scholar

[9] K. Hayashi, K. Sato, T. Nozaki, T. Kajitan, Jpn. J. Appl. Phys. 47 (2008) 59-63.

Google Scholar

[10] L. Wei, C. Hua, Solid State Sci. 9 (2007) 750-755.

Google Scholar

[11] T. -W. Chiu, B. -S. Yu, Y. -R. Wang, K. -T. Chen, Y. -T. Lin, J Alloy. Comp. 509 (2011) 2933-2935.

Google Scholar

© 2025 Trans Tech Publications Ltd. All rights are reserved, including those for text and data mining, AI training, and similar technologies. For open access content, terms of the Creative Commons licensing CC-BY are applied.
Scientific.Net is a registered trademark of Trans Tech Publications Ltd.
