3D Finite Element Simulation of Inclined Cutting of Hardened 45 Steel

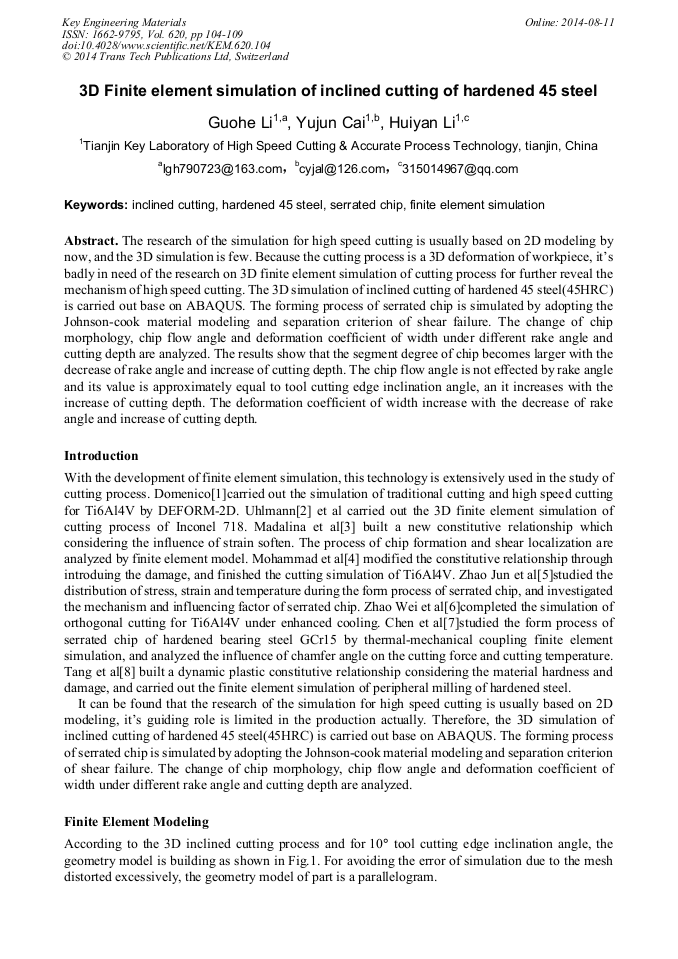

Abstract:

The research of the simulation for high speed cutting is usually based on 2D modeling by now, and the 3D simulation is few. Because the cutting process is a 3D deformation of workpiece, it's badly in need of the research on 3D finite element simulation of cutting process for further reveal the mechanism of high speed cutting. The 3D simulation of inclined cutting of hardened 45 steel (45HRC) is carried out base on ABAQUS. The forming process of serrated chip is simulated by adopting the Johnson-cook material modeling and separation criterion of shear failure. The change of chip morphology, chip flow angle and deformation coefficient of width under different rake angle and cutting depth are analyzed. The results show that the segment degree of chip becomes larger with the decrease of rake angle and increase of cutting depth. The chip flow angle is not effected by rake angle and its value is approximately equal to tool cutting edge inclination angle, an it increases with the increase of cutting depth. The deformation coefficient of width increase with the decrease of rake angle and increase of cutting depth.

• Periodical: Key Engineering Materials (Volume 620)
• Pages: 104-109
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.620.104
• Online since: August 2014
• Authors: Guo He Li, Yu Jun Cai, Hui Yan Li
• Keywords: Finite Element Simulation, Hardened 45 Steel, Inclined Cutting, Serrated Chip

References

[1] U. Domenico: Journal of materials processing technology, Vol. 196 (2008) No. 1-3, pp.79-87.

[2] E. Uhlmann, M.G. Schulenburg and R. Zettier: Annals of the CIRP, Vol. 56 (2007) No. 1, pp.61-64.

DOI: 10.1016/j.cirp.2007.05.017

[3] M. Calamaz, D. Coupard and F. Girot: Intemational Journal of Maehine Tools & Manufaeture, Vol. 48 (2008) No. 3-4, pp.275-288.

[4] S. Mohammad and T. Őzel: International Journal of Machine Tools & Manufacture, Vol. 50 (2010) No. 11, p.943–960.

[5] J. Zhao, H. Meng and S.Y. Wang et al: Tool Engineering, Vol. 39 (2005) No. 5, pp.29-31. (In Chinese).

[6] W. Zhao, N. He and L. Li: Journal of South China University of Technology, Vol. 34 (2006) No. 7, pp.40-44. (In Chinese).

[7] T. Chen, X.L. Liu and G.T. Luo: Journal of system simulation, Vol. 21 (2009) No. 17, pp.5586-5593. (In Chinese).

[8] D.W. Tang, C.Y. Wang and Y.N. Hu: Metallurgical and Materials Transactions A, Vol. 40 (2011) No. 13, pp.3245-3257.
