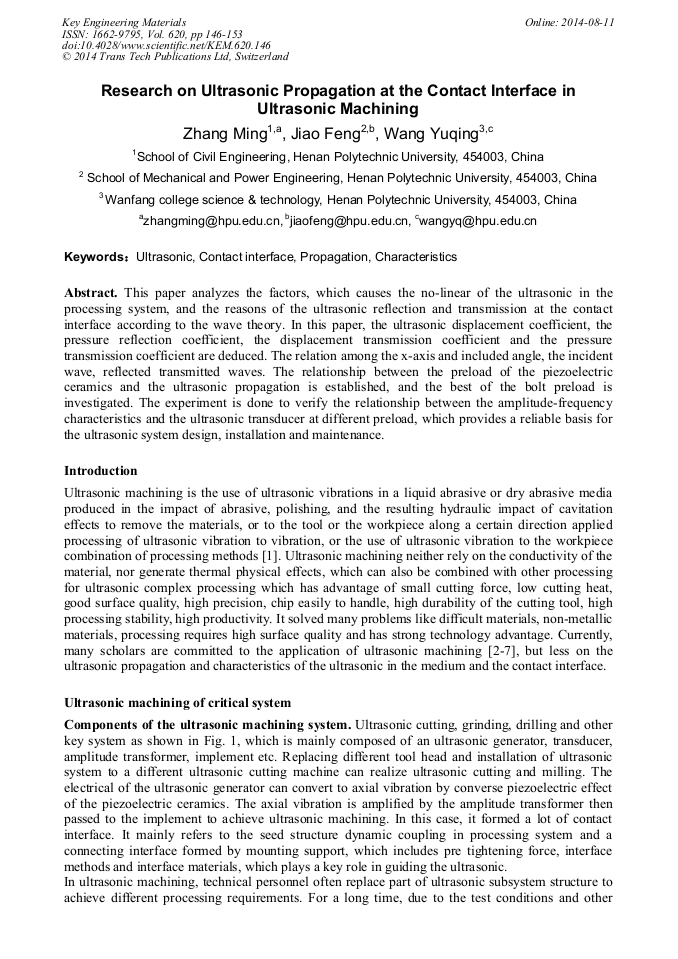

Research on Ultrasonic Propagation at the Contact Interface in Ultrasonic Machining

Abstract:

This paper analyzes the factors, which causes the no-linear of the ultrasonic in the processing system, and the reasons of the ultrasonic reflection and transmission at the contact interface according to the wave theory. In this paper, the ultrasonic displacement coefficient, the pressure reflection coefficient, the displacement transmission coefficient and the pressure transmission coefficient are deduced. The relation among the x-axis and included angle, the incident wave, reflected transmitted waves. The relationship between the preload of the piezoelectric ceramics and the ultrasonic propagation is established, and the best of the bolt preload is investigated. The experiment is done to verify the relationship between the amplitude-frequency characteristics and the ultrasonic transducer at different preload, which provides a reliable basis for the ultrasonic system design, installation and maintenance.

• Periodical: Key Engineering Materials (Volume 620)
• Pages: 146-153
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.620.146
• Online since: August 2014
• Authors: Ming Zhang*, Feng Jiao, Yu Qing Wang
• Keywords: Characteristic, Contact Interface, Propagation, Ultrasonic

References

[1] Q.J. Zhang and X.Q. Yang: Electromachining & Mould, Vol. 5(2012) pp.11-16. (in Chinese).

[2] H. Suzuki, T. Moriwaki and T. Okino: Annals of the CIRP, Vol. 55(2006), No. 1, pp.108-116.

[3] B. Zhao, Y. Chen and Y. Wu: Journal of Henan Polytechnic University (Natural Science), Vol. 26 (2007) No. 3, pp.233-240. (in Chinese).

[4] M. Zhang, B. Zhao, F. Jiao and Y. Li: Key Engineering Materials, Vol. 416 (2009) pp.173-177.

[5] H. Suzuki, S. Hamada and T. Okino: CIRP Annals-Manufacturing Technology, Vol. 59 (2010) p.347–350.

[6] D.T. Liu, S.Y. Yu and X.R. Chen: Electromachining & Mould, Vol. 5(2000) pp.22-25. (in Chinese).

[7] C.H. Li, F. Li and Y.J. Zhang: Electromachining & Mould, Vol. 5(2008), pp.7-12. (in Chinese).

[8] Z.H. Li, Y.X. Wu and Z.L. Long: JOURNAL OF VIBRATION MEASUREMENT & DIAGNOSIS, Vol. 31(20ll ) No. 2, pp.172-173. (in Chinese).

[9] Landau chestnut: Continuum mechanics( People's Education Press, 1978). (in Chinese).

[10] H. Yin, D.M. Li and Y. P Li: JOURNAL OF QUFU NORMAL UNIVERSITY (NATURAL SCIENCE EDITION), vol. 26(2010) No. 3, pp.59-60. (in Chinese).

[11] H.S. Zheng and Z.J. Zhang: Acta Geophysica, vol. 55(2007) No. 3, pp.313-323.

[12] Rajneesh Kumar and Manjeet Singh: Materials Science and Engineering A, vol. 47 (2008) pp.83-96.

[13] Z.H. Li, Y.X. Wu and Z.L. Long: JOURNAL OF VIBRATION AND SHOCK, Vol. 29（2010）No. 9, p.138. (in Chinese).
