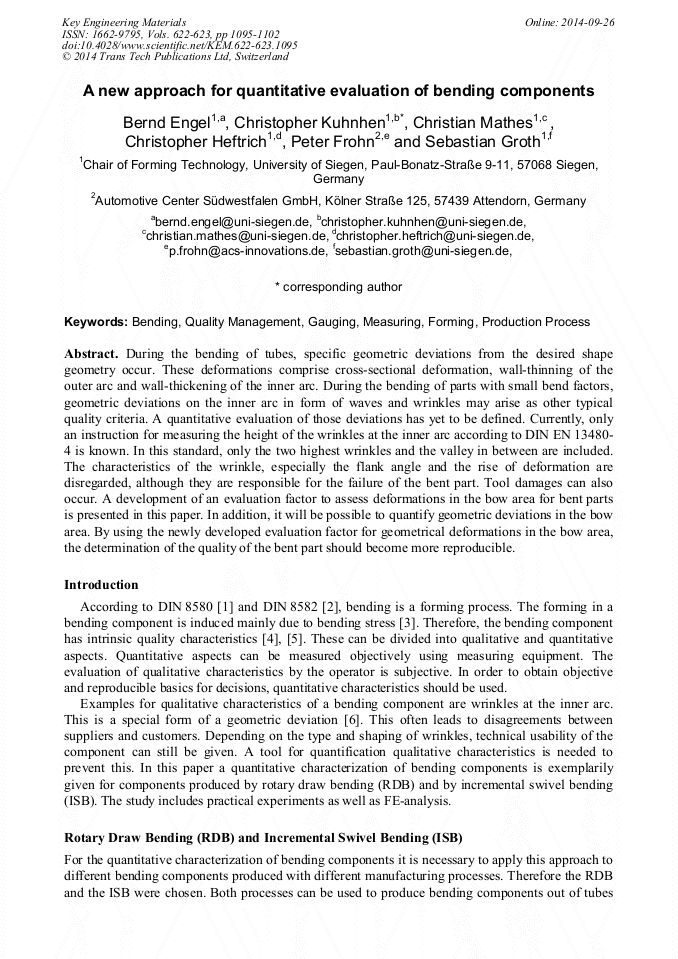

A New Approach for Quantitative Evaluation of Bending Components

Abstract:

During the bending of tubes, specific geometric deviations from the desired shape geometry occur. These deformations comprise cross-sectional deformation, wall-thinning of the outer arc and wall-thickening of the inner arc. During the bending of parts with small bend factors, geometric deviations on the inner arc in form of waves and wrinkles may arise as other typical quality criteria. A quantitative evaluation of those deviations has yet to be defined. Currently, only an instruction for measuring the height of the wrinkles at the inner arc according to DIN EN 13480-4 is known. In this standard, only the two highest wrinkles and the valley in between are included. The characteristics of the wrinkle, especially the flank angle and the rise of deformation are disregarded, although they are responsible for the failure of the bent part. Tool damages can also occur. A development of an evaluation factor to assess deformations in the bow area for bent parts is presented in this paper. In addition, it will be possible to quantify geometric deviations in the bow area. By using the newly developed evaluation factor for geometrical deformations in the bow area, the determination of the quality of the bent part should become more reproducible.

• Periodical: Key Engineering Materials (Volumes 622-623)
• Pages: 1095-1102
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.622-623.1095
• Online since: September 2014
• Authors: Bernd Engel, Christopher Kuhnhen*, Christian Mathes, Christopher Heftrich, Peter Frohn, Sebastian Groth
• Keywords: Bending, Forming, Gauging, Measuring, Production Process, Quality Management

References

[1] DIN 8580: manufacturing processes – terms and definitions, division, Beuth Verlag, Berlin, 2003, pp.4-6.

[2] DIN 8582: manufacturing processes forming – classification; subdivision, terms and definitions, alphabetical index, Beuth Verlag, Berlin, 2003, pp.4-14.

[3] DIN 8586: manufacturing processes forming by bending - classification, subdivision, terms and definitions, Beuth Verlag, Berlin, 2003, pp.3-11.

[4] VDI 3430 - rotary draw bending of profiles, Beuth Verlag, 2011, p.3.

[5] A. R. Veerappan, S. Shanmugam, correlation between pipe bend geometry and allowable pressure in pipe bends using artificial neural network, in: international journal of engineering, science and technology, (3) 4, 2011, pp.284-296.

DOI: 10.4314/ijest.v3i4.68560

[6] B. Engel, B. -U. Zehner; C. Mathes; C. Kuhnhen, development of a benchmark factor to detect wrinkles in bending parts, Numisheet 2014, Melbourne, 2014, pp.624-627.

DOI: 10.1063/1.4850050

[7] H. Hoffmann, R. Neugebauer, G. Spur, Handbuch Umformen, Hanser Verlag, München, 2012, pp.600-601.

[8] B. Engel, M. Hinkel, advanced model for the calculation of the bending moment and the process forces for the rotary draw bending process, in: proceedings of metal forming, Krakow, 2012, pp.1279-1282.

[9] B. Engel, M. Hinkel, determination of influences of clamp die geometry and friction on the clamping process in rotary draw bending, in: proceedings of NAMRI/SME 40, South Bend, 2012, pp.750-758.

[10] X. Wang; J. Cao, wrinkling limit in tube bending, in: journal of engineering materials and technology, (123) 10, 2001, pp.430-435.

DOI: 10.1115/1.1395018

[11] B. Engel, S. Groth, P. Frohn, Sensitivitätsanalyse zum inkrementellen Schwenkbiegen ebener Bleche, 31. Verformungskundliches Kolloquium, Lehrstuhl für Umformtechnik, Montanuniversität Leoben, 2013, pp.83-88.

[12] VDI 3431 - test notes for bending components of profiles, Beuth Verlag, Berlin, 2014, in preparation.

[13] DIN EN 13480-4: metallic industrial piping - part 4: fabrications and installation, Beuth Verlag, Berlin, 2013, pp.17-18.
