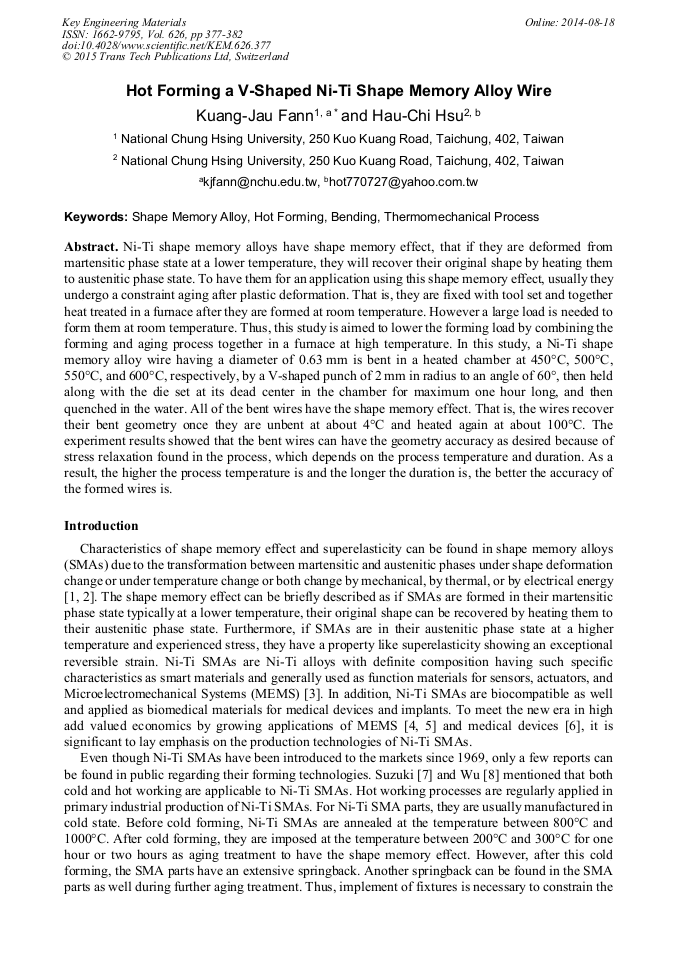

Hot Forming a V-Shaped Ni-Ti Shape Memory Alloy Wire

Abstract:

Ni-Ti shape memory alloys have shape memory effect, that if they are deformed from martensitic phase state at a lower temperature, they will recover their original shape by heating them to austenitic phase state. To have them for an application using this shape memory effect, usually they undergo a constraint aging after plastic deformation. That is, they are fixed with tool set and together heat treated in a furnace after they are formed at room temperature. However a large load is needed to form them at room temperature. Thus, this study is aimed to lower the forming load by combining the forming and aging process together in a furnace at high temperature. In this study, a Ni-Ti shape memory alloy wire having a diameter of 0.63 mm is bent in a heated chamber at 450°C, 500°C, 550°C, and 600°C, respectively, by a V-shaped punch of 2 mm in radius to an angle of 60°, then held along with the die set at its dead center in the chamber for maximum one hour long, and then quenched in the water. All of the bent wires have the shape memory effect. That is, the wires recover their bent geometry once they are unbent at about 4°C and heated again at about 100°C. The experiment results showed that the bent wires can have the geometry accuracy as desired because of stress relaxation found in the process, which depends on the process temperature and duration. As a result, the higher the process temperature is and the longer the duration is, the better the accuracy of the formed wires is.

• Periodical: Key Engineering Materials (Volume 626)
• Pages: 377-382
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.626.377
• Online since: August 2014
• Authors: Kuang-Jau Fann*, Hau Chi Hsu
• Keywords: Bending, Hot Forming, Shape Memory Alloy (SMA), Thermomechanical Process

References

[1] H.C. Tong, C.M. Wayman, Characteristic temperatures and other properties of thermoelastic martensites, Acta Met. 22 (1974) 887-896.

DOI: 10.1016/0001-6160(74)90055-8

[2] C.M. Wayman, Some applications of shape-memory alloys, J. Metals, 32 (1980), 129-137

[3] E. Makino, T. Mitsuya, T. Shibata, Fabrication of TiNi shape memory micropump, Sensor Actuat A-Phys 88 (2001) 256–262

DOI: 10.1016/s0924-4247(00)00522-7

[4] Y.C. Shu, Shape-memory micropumps, Mater. Trans. 43 (2002) 1037-1044.

DOI: 10.2320/matertrans.43.1037

[5] J.-W. J. Cheng, F.-M. Chang, C.-Y. Yen, Reduced order modeling of hysteresis in shape memory alloy, Proceedings of the 45th IEEE Conf. on Decision & Control (2006) 6720-6725.

DOI: 10.1109/cdc.2006.376726

[6] R.J. Chang, Y.C. Lin, C.C. Shiu, Y.T. Hsieh, Development of SMA-actuated microgripper in micro assembly applications, Proceedings of the 33rd Annual Conference of the IEEE Industrial Electronics Society (2007) 2886-2891.

DOI: 10.1109/iecon.2007.4460001

[7] Y. Suzuki, Fabrication of shape memory alloys, in Shape memory materials, ed., K. Otsuka, C.M. Wayman, Cambridge: Cambridge University Press, 1998.

[8] Wu, M.H., Fabrication of nitinol materials and components, Proceedings of the International Conference on Shape Memory and Superelastic Technologies (2001) 285-292.

[9] K.-J. Fann, H.-C. Hsu, Thermomechanical Forming of NiTi Shape Memory Alloy Wire, The 16th International Conference on Advances in Materials & Processing Technologies, AMPT 2013, Taipei, Taiwan, September 22 - 26, 2013.

DOI: 10.4028/www.scientific.net/amr.939.430
