Effect of Pr₆O₁₁ Doping on the Microstructural and Electrical Properties of ZnO-Pr₆O₁₁-Co₃O₄-Cr₂O₃-SnO₂ Varistors

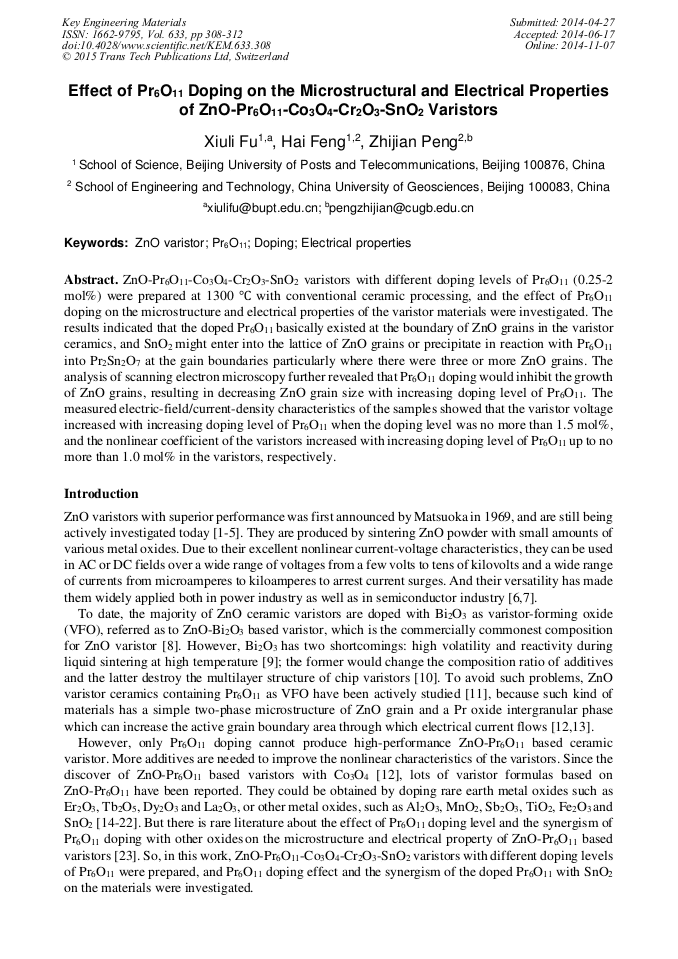

Abstract:

ZnO-Pr₆O₁₁-Co₃O₄-Cr₂O₃-SnO₂ varistors with different doping levels of Pr₆O₁₁ (0.25-2 mol%) were prepared at 1300 °C with conventional ceramic processing, and the effect of Pr₆O₁₁ doping on the microstructure and electrical properties of the varistor materials were investigated. The results indicated that the doped Pr₆O₁₁ basically existed at the boundary of ZnO grains in the varistor ceramics, and SnO₂ might enter into the lattice of ZnO grains or precipitate in reaction with Pr₆O₁₁ into Pr₂Sn₂O₇ at the gain boundaries particularly where there were three or more ZnO grains. The analysis of scanning electron microscopy further revealed that Pr₆O₁₁ doping would inhibit the growth of ZnO grains, resulting in decreasing ZnO grain size with increasing doping level of Pr₆O₁₁. The measured electric-field/current-density characteristics of the samples showed that the varistor voltage increased with increasing doping level of Pr₆O₁₁ when the doping level was no more than 1.5 mol%, and the nonlinear coefficient of the varistors increased with increasing doping level of Pr₆O₁₁ up to no more than 1.0 mol% in the varistors, respectively.

• Periodical: Key Engineering Materials (Volume 633)
• Pages: 308-312
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.633.308
• Online since: November 2014
• Authors: Xiu Li Fu*, Hai Feng, Zhi Jian Peng
• Keywords: Doping, Electrical Properties, Pr₆O₁₁, ZnO Varistor

References

[1] F.H. Liu, G.J. Xu, L. Duan, et al, Influence of B2O3 additives on microstructure and electrical properties of ZnO-Bi2O3-Sb2O3-based varistors, J. Alloys Compd. 509 (2011) L56-L58.

DOI: 10.1016/j.jallcom.2010.10.074

[2] D. Xu, X.N. Cheng, G.P. Zhao, et al, Microstructure and electrical properties of Sc2O3-doped ZnO-Bi2O3-based varistor ceramics, Ceram. Int. 37 (2011) 701-706.

DOI: 10.1016/j.ceramint.2010.09.032

[3] M. Peiteado, A.C. Caballero, Sodium impurities in ZnO-Bi2O3-Sb2O3 based varistors, Ceram. Int. 37 (2011) 819-824.

DOI: 10.1016/j.ceramint.2010.10.016

[4] J.F. Zhu, G.Q. Qi, H.B. Yang, et al, Microstructure and electrical properties of Pr6O11 doped ZnO-Bi2O3-based varistors, J. Mater. Sci. 22 (2011) 96-100.

DOI: 10.1007/s10854-010-0091-1

[5] J. Liu, J.L. He, J. Hu, et al, Statistics on the AC ageing characteristics of single grain boundaries of ZnO varistor, Mater. Chem. Phys. 125 (2011) 9-11.

DOI: 10.1016/j.matchemphys.2010.09.023

[6] T.K. Gupta, Application of zinc oxide varistor, J. Am. Ceram. Soc. 73 (1990) 1817-1840.

[7] S. Fujitsu, H. Toyoda, H. Yanagida, Origin of Zno varistor, J. Am. Ceram. Soc. 70 (1987) C71-C72.

[8] D.R. Clarke, Varistor ceramics, J. Am. Ceram. Soc. 82 (1999) 485-502.

[9] P.R. Bueno, J.A. Varela, E. Longo, SnO2, ZnO and related polycrystalline compound semiconductors: An overview and review on the voltage-dependent resistance (non-ohmic) feature, J. Eur. Ceram. Soc. 28 (2008) 505-529.

DOI: 10.1016/j.jeurceramsoc.2007.06.011

[10] Y.S. Lee, T.Y. Tseng, Phase identification and electrical-properties in ZnO-Glass varistors, J. Am. Ceram. Soc. 75 (1992) 1636-1640.

DOI: 10.1111/j.1151-2916.1992.tb04236.x

[11] C.W. Nahm, Microstructure and electrical properties of Y2O3-doped ZnO-Pr6O11-based varistor ceramics, Mater. Lett. 57 (2003) 1317-1321.

DOI: 10.1016/s0167-577x(02)00979-5

[12] K. Mukae, Zinc-oxide varistors with praseodymium oxide, Ceram. Bull. 66 (1987) 1329-1331.

[13] K. Mukae, K. Tsuda, S. Shiza, Zinc oxide praseodymium oxide elements for surge arresters, IEEE Trans Power Delivery 3 (1988) 591-598.

DOI: 10.1109/61.4296

[14] C.W. Nahm, Major Effects on impulse aging behavior of ZnO-Pr6O11-CoO-Cr2O3-Er2O3 varistor ceramics with small sintering changes, J. Am. Ceram. Soc. 93 (2010) 3056-3059.

DOI: 10.1111/j.1551-2916.2010.04027.x

[15] C.W. Nahm, Electrical behavior against current impulse in ZnO-Pr6O11-based varistor ceramics with terbium addition, Ceram. Int. 36 (2010) 1495-1501.

DOI: 10.1016/j.ceramint.2010.02.027

[16] C.W. Nahm, Influence of CoO on stability of nonlinear electrical properties and dielectric characteristics in Pr6O11-based ZnO varistor ceramics, Mater. Sci. Eng. B 133 (2006) 1-97.

DOI: 10.1016/j.mseb.2006.06.001

[17] C.W. Nahm, Microstructure and nonlinear electrical properties of ZnO-Pr6O11-CoO-Cr2O3- La2O3-based varistors, J. Mater. Sci. 40 (2005) 6307-6309.

DOI: 10.1007/s10853-005-4567-y

[18] C.W. Nahm, Al3+ doping effect on electrical and dielectric aging behavior against impulse surge in ZPCCYA-based varistors, Mater. Sci. Eng. B 170(1-3) (2010) 123-128.

DOI: 10.1016/j.mseb.2010.03.036

[19] H.H. Hng, K.M. Knowles, Microstructure and current-voltage characteristics of praseodymium- doped zinc oxide varistors containing MnO2, Sb2O3 and Co3O4, J. Mater Sci. 37 (2002) 1143-1154.

[20] H. Feng, Z.J. Peng, X.L. Fu, et al, Effect of TiO2 doping on microstructural and electrical properties of ZnO-Pr6O11-based varistor ceramics, J. Alloys Compd. 497 (2010) 304-307.

DOI: 10.1016/j.jallcom.2010.03.047

[21] Z.J. Peng, X.L. Fu, Y.X. Zang, et al, Influence of Fe2O3 doping on microstructural and electrical properties of ZnO-Pr6O11 based varistor ceramic materials, J. Alloys Compd. 508 (2010) 494-499.

DOI: 10.1016/j.jallcom.2010.08.100

[22] H. Feng, Z.J. Peng, X.L. Fu, et al, Effect of SnO2 doping on microstructural and electrical properties of ZnO-Pr6O11 based varistor ceramics, J. Alloys Compd. 509 (2011) 7175-7180.

DOI: 10.1016/j.jallcom.2011.04.042

[23] X.L. Fu, H. Feng, Z.J. Peng. Effect of Pr6O11 doping on the microstructural and electrical properties of ZnO-Pr6O11-Co3O4-TiO2 ceramic varistors. Rare Metal Materials and Engineering, 42(suppl. 1A) (2013) 72-75.

[24] B.S. Skidan, M.M. M'int, Effect of metal oxides on the microstructure of zinc ceramic, Glass Ceram. 64 (2007) 31-33.

DOI: 10.1007/s10717-007-0008-5

[25] K. Mukae, K. Tsuda, I. Nagasawa, Non-ohmic properties of ZnO-rare earth metal oxide Co3O4 ceramics. Jpn. J. Appl. Phys. 16 (1977) 1361-1368.

DOI: 10.1143/jjap.16.1361

[26] C.W. Nahm, C.S. Byoung, H.M. Byeong, Microstructure and electrical properties of Y2O3-doped ZnO-Pr6O11-based varistor ceramics, Mater. Chem. Phys. 82 (2003) 157-164.

DOI: 10.1016/s0254-0584(03)00213-x
