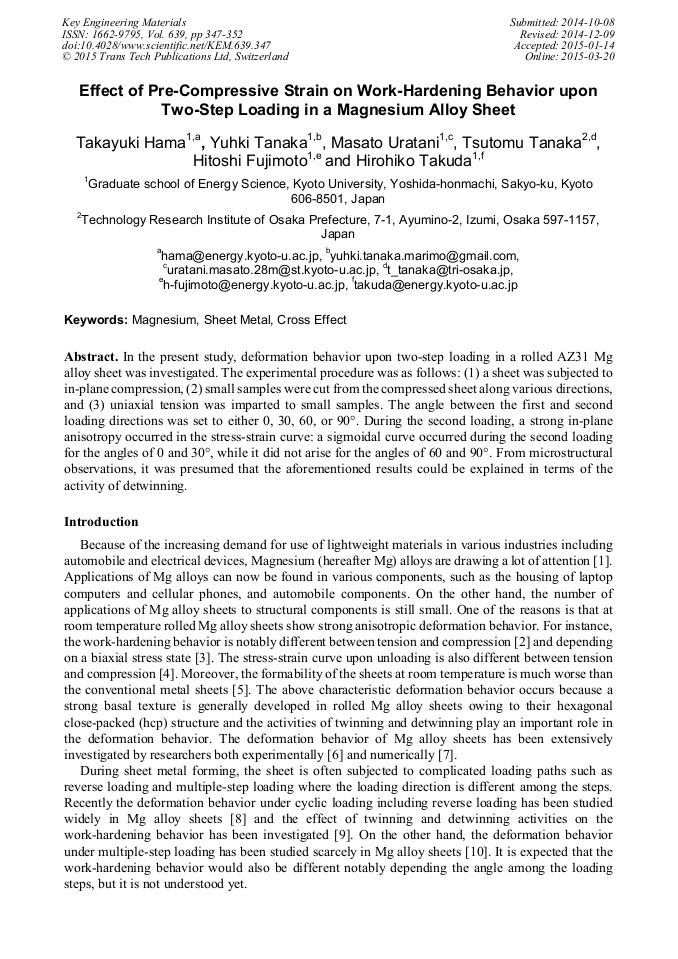

Effect of Pre-Compressive Strain on Work-Hardening Behavior upon Two-Step Loading in a Magnesium Alloy Sheet

Abstract:

In the present study, deformation behavior upon two-step loading in a rolled AZ31 Mg alloy sheet was investigated. The experimental procedure was as follows: (1) a sheet was subjected to in-plane compression, (2) small samples were cut from the compressed sheet along various directions, and (3) uniaxial tension was imparted to small samples. The angle between the first and second loading directions was set to either 0, 30, 60, or 90°. During the second loading, a strong in-plane anisotropy occurred in the stress-strain curve: a sigmoidal curve occurred during the second loading for the angles of 0 and 30°, while it did not arise for the angles of 60 and 90°. From microstructural observations, it was presumed that the aforementioned results could be explained in terms of the activity of detwinning.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Key Engineering Materials (Volume 639)

Pages:

347-352

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.639.347

Citation:

Cite this paper

Online since:

March 2015

Authors:

Takayuki Hama*, Yuhki Tanaka, Masato Uratani, Tsutomu Tanaka, Hitoshi Fujimoto, Hirohiko Takuda

Keywords:

Cross Effect, Magnesium, Sheet Metal

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] B.L. Mordike, T. Ebert, Magnesium properties –applications–potential. Mater. Sci. Eng. A, 302 (2001), 37-45.

Google Scholar

[2] X.Y. Lou, M. Li, R.K. Boger, S.R. Agnew, R.H. Wagoner, Hardening evolution of AZ31B Mg sheet, Int. J. Plast. 23(2007) 44-86.

DOI: 10.1016/j.ijplas.2006.03.005

Google Scholar

[3] M.O. Andar, T. Kuwabara, D. Steglich, Material modeling of AZ31 Mg sheet considering variation of r-values and asymmetry of the yield locus, Mater. Sci. Eng. A, 549(2012), 82–92.

DOI: 10.1016/j.msea.2012.04.009

Google Scholar

[4] T. Hama, N. Kitamura, H. Takuda, Effect of twinning and detwinning on inelastic behavior during unloading in a magnesium alloy sheet, Mater. Sci. Eng. A, 583 (2013), 232-241.

DOI: 10.1016/j.msea.2013.06.070

Google Scholar

[5] X. Huang, K. Suzuki, Y. Chino, M. Mabuchi, Influence of initial texture on cold deep drawability of Mg-3Al-1Zn alloy sheets, Mater. Sci. Eng. A., 565 (2013), 359-372.

DOI: 10.1016/j.msea.2012.12.070

Google Scholar

[6] J. Koike, Enhanced deformation mechanisms by anisotropic plasticity in polycrystalline Mg alloys at room temperature, Metall. Mater. Trans. A, 36 (2005), 1689-1696.

DOI: 10.1007/s11661-005-0032-4

Google Scholar

[7] T. Hama, H. Takuda, Crystal-Plasticity Finite-Element Analysis of Inelastic Behavior During Unloading in a Magnesium Alloy Sheet, Int. J. Plast., 27(2011) 1072-1092.

DOI: 10.1016/j.ijplas.2010.11.004

Google Scholar

[8] L. Wu, S.R. Agnew, Y. Ren, D.W. Brown, B. Clausen, G.M. Stoica, H.R. Wenk, P.K. Liaw, The effects of texture and extension twinning on the low-cycle fatigue behavior of a rolled magnesium alloy, AZ31B, Mater. Sci. Eng. A, 527 (2010), 7057-7067.

DOI: 10.1016/j.msea.2010.07.047

Google Scholar

[9] T. Hama, T. Mayama, H. Takuda, Deformation behavior of a magnesium alloy sheet with random crystallographic orientations, Key Eng. Mater., 611-612 (2014), 27-32.

DOI: 10.4028/www.scientific.net/kem.611-612.27

Google Scholar

[10] S.H. Park, S-G. Hong, C.S. Lee, In-plane anisotropic deformation behavior of rolled Mg-3Al-1Zn alloy by initial {10-12} twins, Mater. Sic. Eng. A, 570 (2013), 149-163.

DOI: 10.1016/j.msea.2013.01.071

Google Scholar

[11] T. Kuwabara, Y. Kumano, J. Ziegelheim, I. Kurosaki, Tension-compression asymmetry of phosphor bronze for electronic parts and its effect on bending behavior, Int. J. Plasticity, 25 (2009), 1759-1776.

DOI: 10.1016/j.ijplas.2009.01.004

Google Scholar

[12] Y. Chino, K. Kimura, M. Mabuchi, Twinning behavior and deformation mechanisms of extruded AZ31 Mg alloy, Mater. Sci. Eng. A, 486 (2008), 481-488.

DOI: 10.1016/j.msea.2007.09.058

Google Scholar

[13] T. Hama, H. Takuda, Work-hardening behavior upon reverse loading in a rolled AZ31 magnesium alloy sheet, Key, Eng. Mater., 622-623 (2014), 603-608.

DOI: 10.4028/www.scientific.net/kem.622-623.603

Google Scholar

[14] D. Steglich, X. Tian, J. Bohlen, T. Kuwabara, Mechanical testing of thin sheet magnesium alloys in biaxial tension and uniaxial compression, Exp. Mech., 54 (2014), 1247-1258.

DOI: 10.1007/s11340-014-9892-0

Google Scholar
