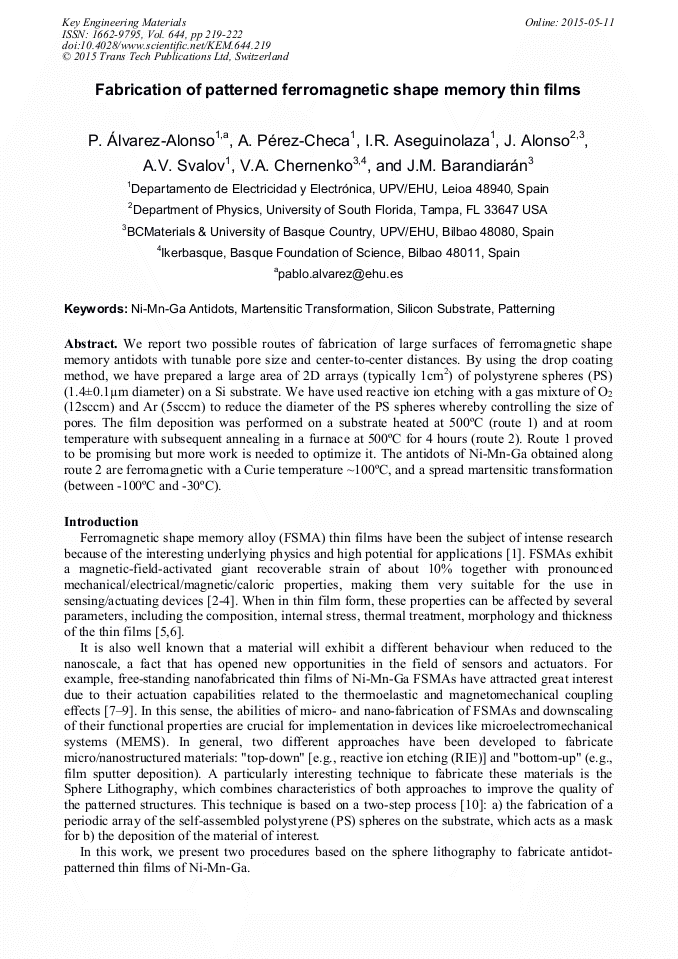

Fabrication of Patterned Ferromagnetic Shape Memory Thin Films

Abstract:

We report two possible routes of fabrication of large surfaces of ferromagnetic shape memory antidots with tunable pore size and center-to-center distances. By using the drop coating method, we have prepared a large area of 2D arrays (typically 1cm²) of polystyrene spheres (PS) (1.4±0.1μm diameter) on a Si substrate. We have used reactive ion etching with a gas mixture of O₂(12sccm) and Ar (5sccm) to reduce the diameter of the PS spheres whereby controlling the size of pores. The film deposition was performed on a substrate heated at 500oC (route 1) and at room temperature with subsequent annealing in a furnace at 500oC for 4 hours (route 2). Route 1 proved to be promising but more work is needed to optimize it. The antidots of Ni-Mn-Ga obtained along route 2 are ferromagnetic with a Curie temperature ~100oC, and a spread martensitic transformation (between-100oC and-30oC).
