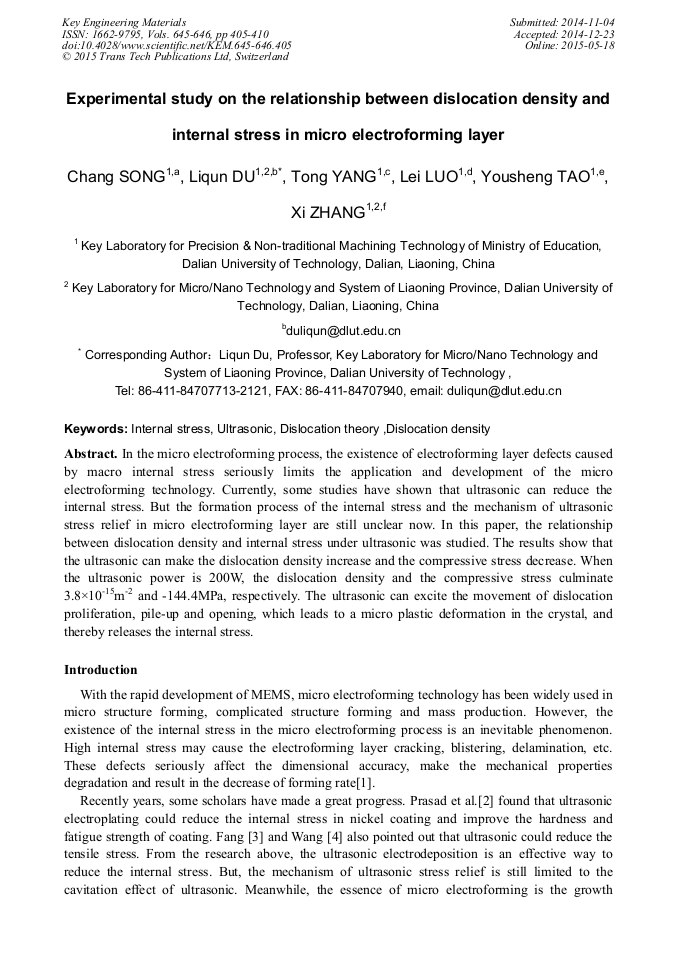

Experimental Study on the Relationship between Dislocation Density and Internal Stress in Micro Electroforming Layer

Abstract:

In the micro electroforming process, the existence of electroforming layer defects caused by macro internal stress seriously limits the application and development of the micro electroforming technology. Currently, some studies have shown that ultrasonic can reduce the internal stress. But the formation process of the internal stress and the mechanism of ultrasonic stress relief in micro electroforming layer are still unclear now. In this paper, the relationship between dislocation density and internal stress under ultrasonic was studied. The results show that the ultrasonic can make the dislocation density increase and the compressive stress decrease. When the ultrasonic power is 200W, the dislocation density and the compressive stress culminate 3.8×10^-15m^-2 and-144.4MPa, respectively. The ultrasonic can excite the movement of dislocation proliferation, pile-up and opening, which leads to a micro plastic deformation in the crystal, and thereby releases the internal stress.

• Periodical: Key Engineering Materials (Volumes 645-646)
• Pages: 405-410
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.645-646.405
• Online since: May 2015
• Authors: Chang Song, Li Qun Du*, Tong Yang, Lei Luo, You Sheng Tao, Xi Zhang
• Keywords: Dislocation Density, Dislocation Theory, Internal Stress, Ultrasonic

References

[1] Lei Weining, Zhu Di. Research on microstructure of nanocrystalling nickel electroforming layers, J. China Mech. Engin. 15(2004) 1283-1286. (in Chinese).

[2] Prasad P B S N V, Vasudevan R, Seshadri S K. The effect of ultrasonic vibration on nickel electrodeposition, J. Mater. Lett. 17(1993) 357-359.

DOI: 10.1016/0167-577x(93)90125-h

[3] Fang Xiaohong. Study on technique and mechanism of ultrasonic-assisted electroplating of nickel-based diamond bit, D. China University of Geosciences. 2008. (in Chinese).

[4] Wang Xiuzhi, Yu Aibing. Influence of ultrasonic on hardness of electroplated nickel coating, J. Plating and Finishing. 29(2007) 18-20. (in Chinese).

[5] Jung-Chunghuang, Chih-chia Lin. Investigations on the material property changes of ultrasonic-vibration assisted aluminum alloy up setting, J. Mater. & Design. 45(2013) 412-420.

DOI: 10.1016/j.matdes.2012.07.021

[6] Rao V V S, Kannan E, Prakash R V, et al. Observation of two stage dislocation dynamics from nonlinear ultrasonic response during the plastic deformation of AA7175-T7351 aluminum alloy, J. Mater. Sci. and Engin. : A. 512 (2009) 92-99.

DOI: 10.1016/j.msea.2009.01.029

[7] F. Brunet, P. Germi, M. Pernet. Microstructural study of boron doped diamond films by X-ray diffraction profiles analysis, J. Thin solid films. 322(1998) 143-147.

DOI: 10.1016/s0040-6090(97)00925-5

[8] Lifeng Gui, Rujun Tang. Handbook of Materials Testing for Mechanical Engineering: Physical Metallurgical Volume, 1nd ed., Macmillan, The Sci. and Tech. Press of Liaoning, 1999, pp.433-440. (in Chinese).

[9] Du Liqun, Song Lei, Wang Qijia, et al. Experiments on ultrasonic stress relief used in micro electrodeposited coating, J. Nanotech. and Precis. Engin. 8(2010) 143–148.
