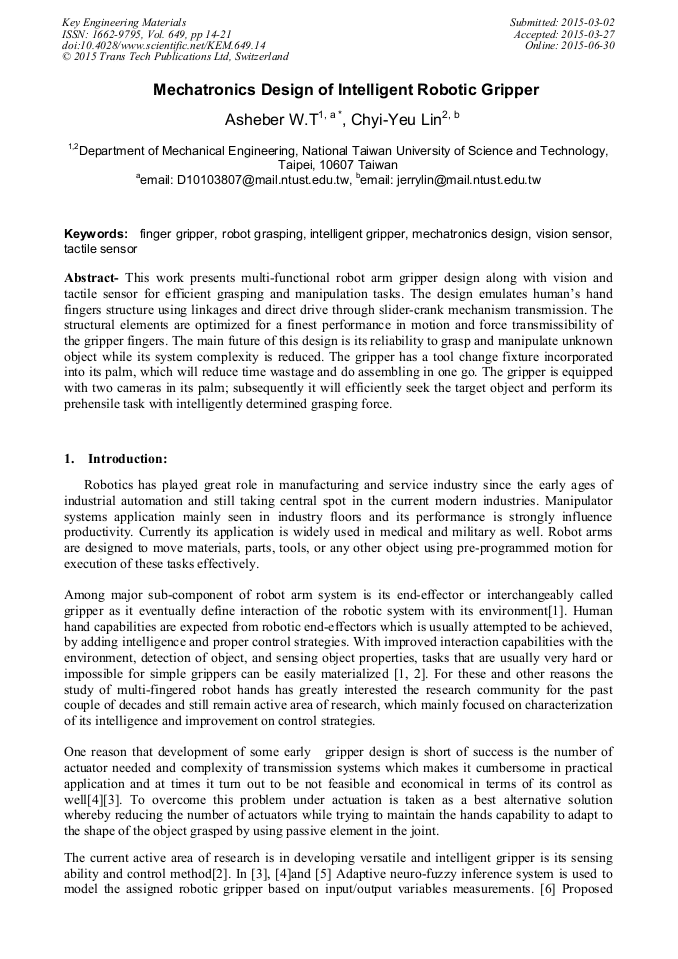

Mechatronics Design of Intelligent Robotic Gripper

Abstract:

This work presents multi-functional robot arm gripper design along with vision and tactile sensor for efficient grasping and manipulation tasks. The design emulates human’s hand fingers structure using linkages and direct drive through slider-crank mechanism transmission. The structural elements are optimized for a finest performance in motion and force transmissibility of the gripper fingers. The main future of this design is its reliability to grasp and manipulate unknown object while its system complexity is reduced. The gripper has a tool change fixture incorporated into its palm, which will reduce time wastage and do assembling in one go. The gripper is equipped with two cameras in its palm; subsequently it will efficiently seek the target object and perform its prehensile task with intelligently determined grasping force.

• Periodical: Key Engineering Materials (Volume 649)
• Pages: 14-21
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.649.14
• Online since: June 2015
• Authors: W.T. Asheber*, Chyi Yeu Lin
• Keywords: Finger Gripper, Intelligent Gripper, Mechatronics Design, Robot Grasping, Tactile Sensor, Vision Sensor

References

[1] Bekey, G.A., Springer Handbook of Robotics (B. Siciliano and O. Khatib; 2008) [Book Review]. Robotics & Automation Magazine, IEEE, 2008. 15(3): pp.110-110.

DOI: 10.1109/mra.2008.928399

[2] Boubekri, N. and P. Chakraborty, Robotic grasping: gripper designs, control methods and grasp configurations – a review of research. Integrated Manufacturing Systems, 2002. 13(7): pp.520-531.

DOI: 10.1108/09576060210442978

[3] Ali, H., H. Low Hoi, and S. Tei Chen. Design and Development of Smart Gripper with Vision Sensor for Industrial Applications. in Computational Intelligence, Modelling and Simulation (CIMSiM), 2011 Third International Conference on. (2011).

DOI: 10.1109/cimsim.2011.89

[4] Birglen, L., et al. Fuzzy Enhanced Control of an Underactuated Finger Using Tactile and Position Sensors. in Robotics and Automation, 2005. ICRA 2005. Proceedings of the 2005 IEEE International Conference on. (2005).

DOI: 10.1109/robot.2005.1570459

[5] Petković, D., et al., Adaptive neuro fuzzy estimation of underactuated robotic gripper contact forces. Expert Systems with Applications, 2013. 40(1): pp.281-286.

DOI: 10.1016/j.eswa.2012.07.076

[6] Zaki, A.M., et al. Design and implementation of efficient intelligent robotic gripper. in Modelling, Identification and Control (ICMIC), The 2010 International Conference on. (2010).

[7] Norton, R.L., Design of Machinery: An Introduction to the Synthesis and Analysis of Mechanisms and Machines. 2004: McGraw-Hill Higher Education.

[8] Dargahi, J. and S. Najarian, Advances in tactile sensors design/manufacturing and its impact on robotics applications – a review. Industrial Robot: An International Journal, 2005. 32(3): pp.268-281.

DOI: 10.1108/01439910510593965

[9] Morales, A., et al., Vision-based three-finger grasp synthesis constrained by hand geometry. Robotics and Autonomous Systems, 2006. 54(6): pp.496-512.

DOI: 10.1016/j.robot.2006.01.002

[10] Lin, C. -T. and C.S.G. Lee, Neural fuzzy systems: a neuro-fuzzy synergism to intelligent systems. 1996: Prentice-Hall, Inc. 797.

[11] Khakpour, H. and L. Birglen, Numerical Analysis of the Grasp Configuration of a Planar 3-DOF Linkage-Driven Underactuated Finger. Journal of Computational and Nonlinear Dynamics, 2012. 8(2): pp.021010-021010.

DOI: 10.1115/1.4007359
