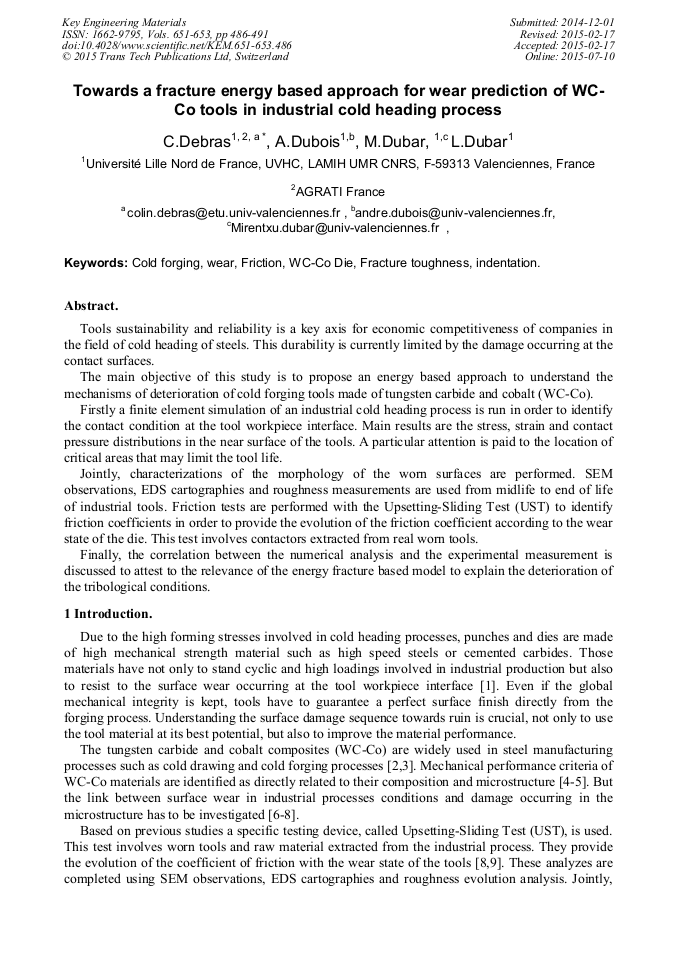

Towards a Fracture Energy Based Approach for Wear Prediction of WC-Co Tools in Industrial Cold Heading Process

Abstract:

Tools sustainability and reliability is a key axis for economic competitiveness of companies in the field of cold heading of steels. This durability is currently limited by the damage occurring at the contact surfaces.The main objective of this study is to propose an energy based approach to understand the mechanisms of deterioration of the WC-Co carbide tools.Firstly a finite element simulation of an industrial cold heading process is run in order to identify the contact condition at the tool workpiece interface. Main results are the stress, strain and temperature distributions in the near surface of the tools. A particular attention is paid to the location of critical areas that may limit the tool life.Jointly, characterizations of the morphology of the worn surfaces are performed. SEM observations added to EDS and roughness measurements are done from midlife to end of life of industrial tools. Friction tests are performed with the Upsetting-Sliding Test involving contactors extracted from real worn tools to identify friction coefficients in order to provide the evolution of the friction coefficient according to the wear state of the tools. Finally, the correlation between the numerical analysis and the experimental measurement is discussed to attest to the relevance of the energy fracture based model to explain the deterioration of the tribological conditions.

• Periodical: Key Engineering Materials (Volumes 651-653)
• Pages: 486-491
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.651-653.486
• Online since: July 2015
• Authors: Colin Debras*, André Dubois, Mirentxu Dubar, L. Dubar
• Keywords: Cold Forging, Fracture Toughness, Friction, Indentation, WC-Co Die, Wear

References

[1] K. Wagner, R. Völkl, U. Engel, Tool life enhancement in cold forging by locally optimized surfaces, journal of materials processing technology 201 ( 2008) 2–8.

DOI: 10.1016/j.jmatprotec.2007.11.152

[2] Young-Seon Lee, Jung-Hwan Lee, Jong-Ung Choi, T. Ishikawa, Experimental and analytical evaluation for elastic deformation behaviors of cold forging tool, Journal of Materials Processing Technology 127 (2002) 73–82.

DOI: 10.1016/s0924-0136(02)00268-6

[3] Sébastien Hollinger, Eric Depraetere, Olivier Giroux, Wear mechanism of tungsten carbide dies during wet drawing of steel tyre cords, Wear 255 (2003) 1291–1299.

DOI: 10.1016/s0043-1648(03)00168-6

[4] Zhigang Zak Fang, Correlation of transverse rupture strength of WC–Co with hardness, International Journal of Refractory Metals & Hard Materials 23 (2005) 119–127.

DOI: 10.1016/j.ijrmhm.2004.11.005

[5] Chang-Soo Kim a, Ted R. Massa b, Gregory S. Rohrer, Modeling the relationship between microstructural features and the strength of WC–Co composites, International Journal of Refractory Metals & Hard Materials 24 (2006) 89–100.

DOI: 10.1016/j.ijrmhm.2005.04.011

[6] Y. Pérez Delgado, P. De Baets, K. Bonny, V. Carretero Olalla, J. Vleugels, B. Lawers, M.H. Staia, Influence of wire-EDM on high temperature sliding wear behavior of WC10Co(Cr/V) cemented carbide, Int. Journal of Refractory Metals and Hard Materials 41 (2013).

DOI: 10.1016/j.ijrmhm.2013.03.013

[7] K. Bonny, P. De Baets, Y. Perez, J. Vleugels, B. Lauwers, Friction and wear characteristics of WC–Co cemented carbides in dry reciprocating sliding contact, Wear 268 (2010) 1504–1517.

DOI: 10.1016/j.wear.2010.02.029

[8] A. Dubois, L. Lazzarotto, L. Dubar, J. Oudin, A multi-step lubricant evaluation strategy for wire drawing–extrusion–cold heading sequence, Wear 249 (2002) 951–961.

DOI: 10.1016/s0043-1648(01)00830-4

[9] L Dubar, A Dubois, M Dubar, Friction and wear phenomena in cold metal forming: an integrated approach, Proceedings of the Institution of Mechanical Engineers, Part B: Journal of Engineering Manufacture, volume 220, 2006, pp.1-10.

DOI: 10.1243/095440505x32454

[10] M.M. Lima, C. Godoy, J.C. Avelar-Batista, P.J. Modenesi, Toughness evaluation of HVOF WC-Co coatings using non-linear regression analysis, Materials Science and Engineering A357 (2003) 337-345.

DOI: 10.1016/s0921-5093(03)00204-1

[11] D. Chicot, A. Pertuz, F. Roudet, M. H. Staia and J. Lesage, New developments for fracture toughness determination by Vickers indentation, Materials Science and Technology, v. 20, n. 7, pp.877-83, July (2004).

DOI: 10.1179/026708304225017427

[12] J.H. Lee, Y.F. Gao, K.E. Johanns, G.M. Pharr, Cohesive interface simulations of indentation cracking as a fracture toughness measurement method for brittle materials Acta Materialia 60 (2012) 5448–5467.

DOI: 10.1016/j.actamat.2012.07.011

[13] Nima Safara Nosar, Mikael Olsson, Influence of tool steel surface topography on adhesion and material transfer in stainless steel/tool steel sliding contact, Wear 303(2013)30–39.

DOI: 10.1016/j.wear.2013.02.015
