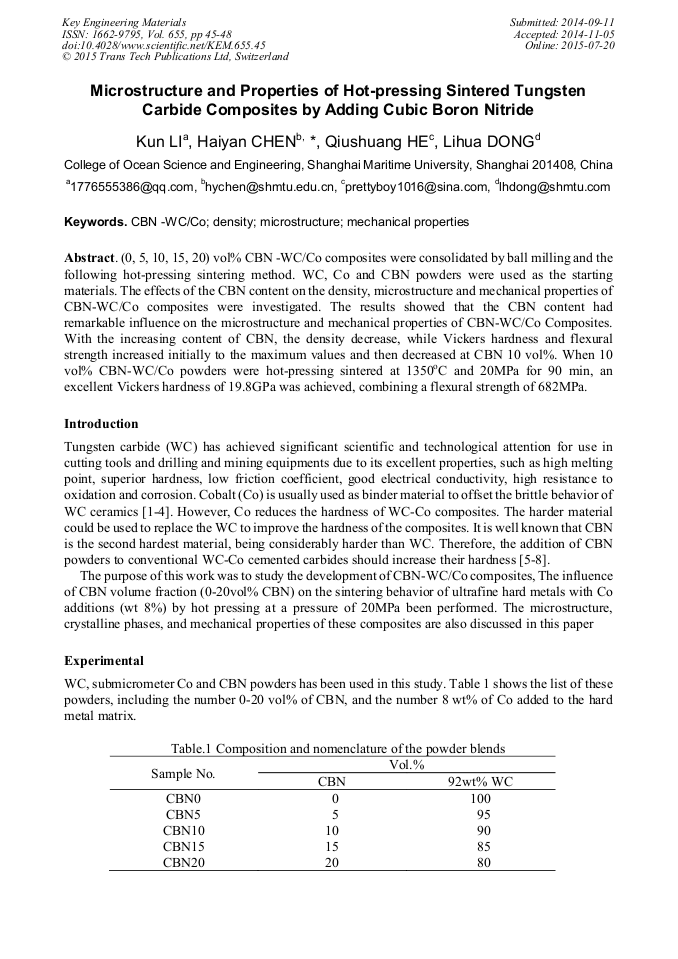

Microstructure and Properties of Hot-Pressing Sintered Tungsten Carbide Composites by Adding Cubic Boron Nitride

Abstract:

(0, 5, 10, 15, 20) vol% CBN-WC/Co composites were consolidated by ball milling and the following hot-pressing sintering method. WC, Co and CBN powders were used as the starting materials. The effects of the CBN content on the density, microstructure and mechanical properties of CBN-WC/Co composites were investigated. The results showed that the CBN content had remarkable influence on the microstructure and mechanical properties of CBN-WC/Co Composites. With the increasing content of CBN, the density decrease, while Vickers hardness and flexural strength increased initially to the maximum values and then decreased at CBN 10 vol%. When 10 vol% CBN-WC/Co powders were hot-pressing sintered at 1350°C and 20MPa for 90 min, an excellent Vickers hardness of 19.8GPa was achieved, combining a flexural strength of 682MPa.

• Periodical: Key Engineering Materials (Volume 655)
• Pages: 45-48
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.655.45
• Online since: July 2015
• Authors: Kun Li, Hai Yan Chen*, Qiu Shuang He, Li Hua Dong
• Keywords: CBN-Wc/Co, Density, Mechanical Property, Microstructure

References

[1] V. Martincz, J. Echeberria, Hot isostatic pressing of cubic boron nitride-tungsten carbide/cobait (CBN-WC/Co) composites: Effect of CBN particle size and some processing parameters on their microstructure and properties, J. Am. Cream. Soc., 90.

DOI: 10.1111/j.1551-2916.2006.01426.x

[2] 415-424(2007).

[2] Y. Pan, D. Y. Li, H. Zhang, Enhancing the wear resistance of sintered WC-Co composite by adding pseudo-elastic constituent, Wear, 271(2011) 1916-(1921).

DOI: 10.1016/j.wear.2011.01.052

[3] S. G. Huang, Li, O. Vander Biest, J. Vleugels, VC-and Cr3C2-doped WC-NbC-Co hard metals, J. Alloys Compb., 464(2008)205-211.

DOI: 10.1016/j.jallcom.2007.10.038

[4] F. Ueda, M. Yageta, and I. Taijima, Microstructure and mechanical properties of CBN-TiN composites, J. Hard Mater., 1991 2, 233-43.

[5] E. Benko, J. S. Stanislaw, B. Krolicka, A. Wyczesany, and T. Barr, CBN-Ti, CBN-TiC Composites: Chemical equilibria, microstructure and hardness mechanical investigations, Diam. Relat. Mater., 8, 1838-46(1999).

DOI: 10.1016/s0925-9635(99)00131-4

[6] S.G. Huang, O. Van der Biest, J. Vleugels, VC-doped WC-NbC-Co hard metals, mater. Sci. Eng., A 488(2008)420-427.

DOI: 10.1016/j.msea.2007.11.043

[7] Chengguang Lin, Erich Kny, Guansen Yuana, Boro Djuricicb, Microstructure and properties of ultrafine WC-0. 6VC-10Co hardmetals densified by pressure-assisted critical liquid phase sintering, J. Alloys Compb., 383(2004)98-102.

DOI: 10.1016/j.jallcom.2004.04.070

[8] X. L. Shi,G. Q. Shao, X. LXDuan, R. Zh. Yuan, H. H. Lin, Mechanical properties , phases and microstructure of ultrafine hardmetals prepared by WC-6. 29Co nanocrystalline composite powder, Mater. Sci. Eng. A392 (2005)335-339.

DOI: 10.1016/j.msea.2004.09.043
