Influence of YAG-Based Composite Sintering Aids on Gas Pressure Sintered BN_w/Si₃N₄ Composites

Abstract:

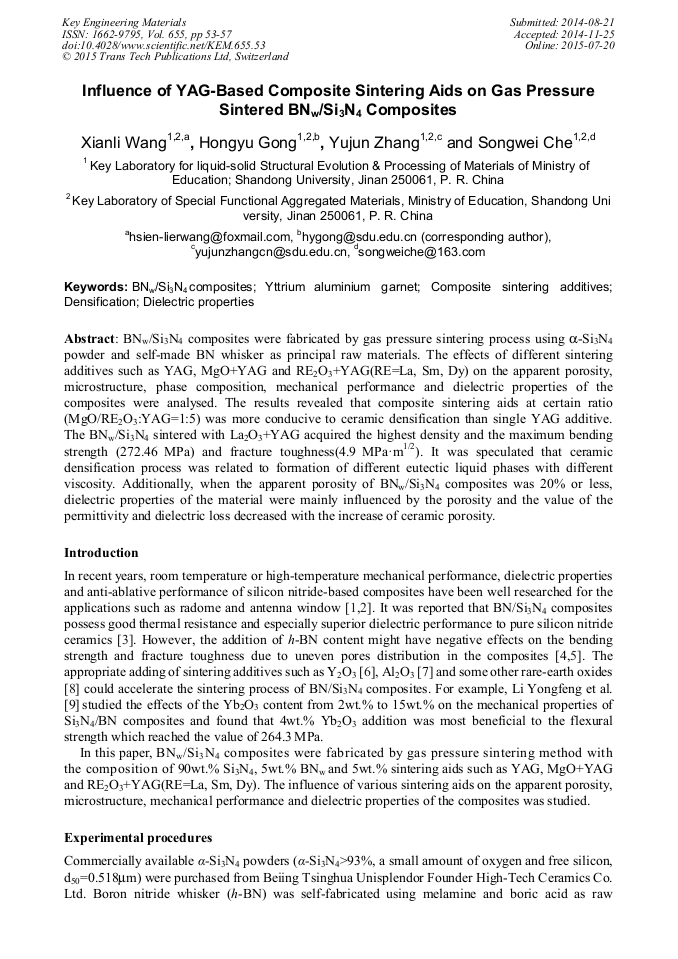

BN_w/Si₃N₄ composites were fabricated by gas pressure sintering process using α-Si₃N₄ powder and self-made BN whisker as principal raw materials. The effects of different sintering additives such as YAG, MgO+YAG and RE₂O₃+YAG(RE=La, Sm, Dy) on the apparent porosity, microstructure, phase composition, mechanical performance and dielectric properties of the composites were analysed. The results revealed that composite sintering aids at certain ratio (MgO/RE₂O₃:YAG=1:5) was more conducive to ceramic densification than single YAG additive. The BN_w/Si₃N₄ sintered with La₂O₃+YAG acquired the highest density and the maximum bending strength (272.46 MPa) and fracture toughness(4.9 MPa·m^1/2). It was speculated that ceramic densification process was related to formation of different eutectic liquid phases with different viscosity. Additionally, when the apparent porosity of BN_w/Si₃N₄ composites was 20% or less, dielectric properties of the material were mainly influenced by the porosity and the value of the permittivity and dielectric loss decreased with the increase of ceramic porosity.

• Periodical: Key Engineering Materials (Volume 655)
• Pages: 53-57
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.655.53
• Online since: July 2015
• Authors: Xian Li Wang, Hong Yu Gong*, Yu Jun Zhang, Song Wei Che
• Keywords: BN_w⁄Si₃N₄ Composites, Composite Sintering Additives, Densification, Dielectric Property, Yttrium Aluminium Garnet

References

[1] Šajgalík P, Rajan K, Warbichler P, et al., Key Eng. Mater. 159 (1998) 405-410.

[2] Klemm H, J. Am. Ceram. Soc. 93 (6) (2010) 1501-1522.

[3] Dong W, Wang C A, Yu L, et al, Key Eng. Mater. 512 (2012) 828-831.

[4] Wei D, Meng Q, Jia D, Ceram. Int. 32 (5) (2006) 549-554.

[5] Yuan B, Liu J X, Zhang G J, et al, Ceram. Int. 35 (6) (2009) 2155-2159.

[6] Ershova N I, Kelina I Y, Refract. Ind. Ceram. 46 (1) (2005) 12-14.

[7] Meng QC, Wei DQ, Jia DC, Rare Metal Mater. Eng., 34 (2005) 558-561.

[8] Karlsdottir S N, Halloran J W, J. Am. Ceram. Soc. 89 (5) (2006) 1615-1620.

[9] Li Yongfeng, Liu Ping, et al, J. Chin. Ceram. Soc. 38 (8) (2010) 1538-1541, 1552.

[10] Li J, Chen F, Shen Q, Jiang H, Zhang L, Mater. Sci. -Poland. 25(3)(2007) 699-707.

[11] Tanaka S, Itatani K, Uchida H, et al, J. Eur. Ceram. Soc. 22 (5) (2002) 777-783.

[12] Guedes-Silva C C, De Souza Carvalho F M, J. Rare Earths, 30 (11)(2012) 1177-1183.

[13] P.F. Becher, M.K. Ferber, J. Am. Ceram. Soc. 87 (7) (2004) 1274-1279.

[14] S. Hampshire, M.J. Pomeroy, J. Non-Cryst. Solids 344 (2004) 1-7.

[15] Penn S J, Alford N M, Templeton A, et al, J. Am. Ceram. Soc., 80 (7) (1997) 1885-1888.
