The Effects of O₂:N₂ Gas Ratios on Structural, Optical, Electrical Properties of TiO_xN_y Thin Film Deposited by Reactive DC Magnetron Sputtering

Abstract:

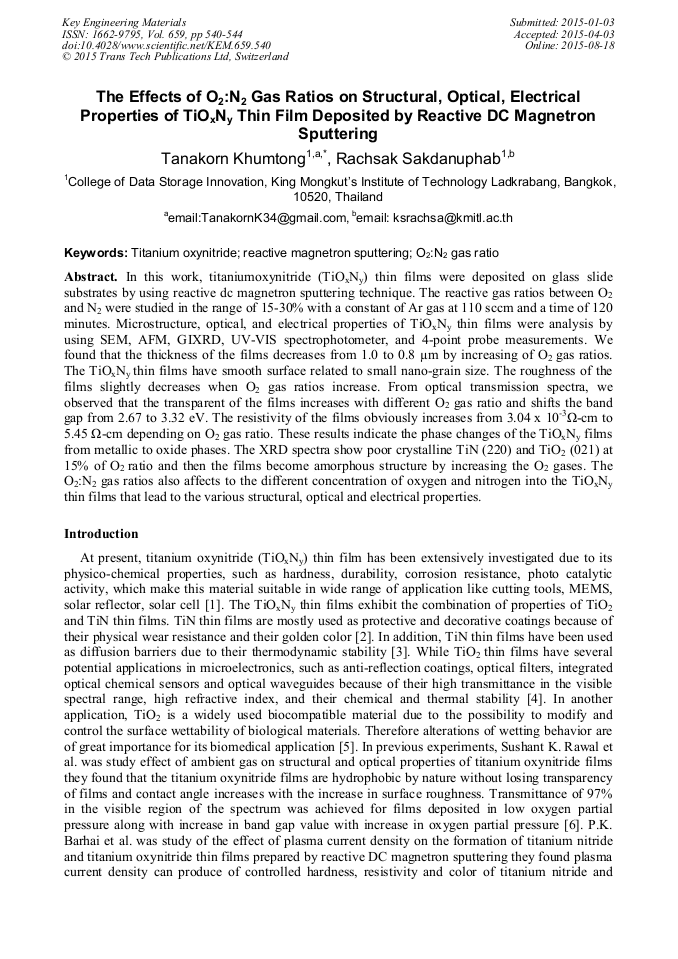

In this work, titaniumoxynitride (TiO_xN_y) thin films were deposited on glass slide substrates by using reactive dc magnetron sputtering technique. The reactive gas ratios between O₂ and N₂ were studied in the range of 15-30% with a constant of Ar gas at 110 sccm and a time of 120 minutes. Microstructure, optical, and electrical properties of TiO_xN_y thin films were analysis by using SEM, AFM, GIXRD, UV-VIS spectrophotometer, and 4-point probe measurements. We found that the thickness of the films decreases from 1.0 to 0.8 μm by increasing of O₂ gas ratios. The TiO_xN_y thin films have smooth surface related to small nanograin size. The roughness of the films slightly decreases when O₂ gas ratios increase. From optical transmission spectra, we observed that the transparent of the films increases with different O₂ gas ratio and shifts the band gap from 2.67 to 3.32 eV. The resistivity of the films obviously increases from 3.04 x 10^-3Ω-cm to 5.45 Ω-cm depending on O₂ gas ratio. These results indicate the phase changes of the TiO_xN_y films from metallic to oxide phases. The XRD spectra show poor crystalline TiN (220) and TiO₂ (021) at 15% of O₂ ratio and then the films become amorphous structure by increasing the O₂ gases. The O₂:N₂ gas ratios also affects to the different concentration of oxygen and nitrogen into the TiO_xN_y thin films that lead to the various structural, optical and electrical properties.

• Periodical: Key Engineering Materials (Volume 659)
• Pages: 540-544
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.659.540
• Online since: August 2015
• Authors: Tanakorn Khumtong*, Rachsak Sakdanuphab
• Keywords: O₂:N₂ Gas Ratio, Reactive Magnetron Sputtering, Titanium Oxynitride

References

[1] M.Y. Al-Jaroudi, HTG. Hentezell, S.E. Homstrom, A. Bengstom, Titanium nitride deposition on hardened high speed steel by reactive magnetron sputtering, Thin Solid Films 190 (1990) 265-277.

DOI: 10.1016/0040-6090(89)90916-4

[2] M.A. Nicolet, M. Bartur, Diffusion barriers in layered contact structure, J. Vac. Sci. Technol. 19 (1981) 786-793.

DOI: 10.1116/1.571149

[3] J.Y. Zhang, I.Y. Boyd, B.J. O'Sullivan, P.K. Hurley, P.V. Kelly, J.P. Senateur, Nanocrystalline TiO2 films studied by optical, XRD and FTIR spectroscopy, J. Non-Cryst. Solids 303 (2002) 134–138.

DOI: 10.1016/s0022-3093(02)00973-0

[4] S.H. Mohamed, O. Kappertz, T. Niemeier, R. Drese, M.M. Wakkad, M. Wuttig, Effect of heat treatment on structural, optical and mechanical properties of sputtered TiOxNy films, Thin Solid Films 468 (2004) 48–56.

DOI: 10.1016/j.tsf.2004.04.017

[5] Z.K. Lin, Y.C. Liu, X.J. Zhang, G.Q. Yue, D. Song, Chun Ba, The microstructure and wettability of the TiOx films synthesized, Mater. Sci. Eng. B 156 (2009) 79–83.

DOI: 10.1016/j.mseb.2008.11.043

[6] P.K. Barhai, I. Neelam Kumari, S.K. Pabi, S.K. Mahapatra, Study of the effect of plasma current density on the formation of titanium nitride and titanium oxynitride thin films prepared by reactive DC magnetron sputtering, Vacuum 84 (2010) 896–901.

DOI: 10.1016/j.vacuum.2009.12.004

[7] K. Sushant, Rawala, Amit Kumar Chawla, Vipin Chawla, R. Jayaganthana, Ramesh Chandra, Effect of ambient gas on structural and optical properties of titanium oxynitride films, Appl. Surf. Sci. 256 (2010) 4129–4135.

DOI: 10.1016/j.apsusc.2010.01.096
