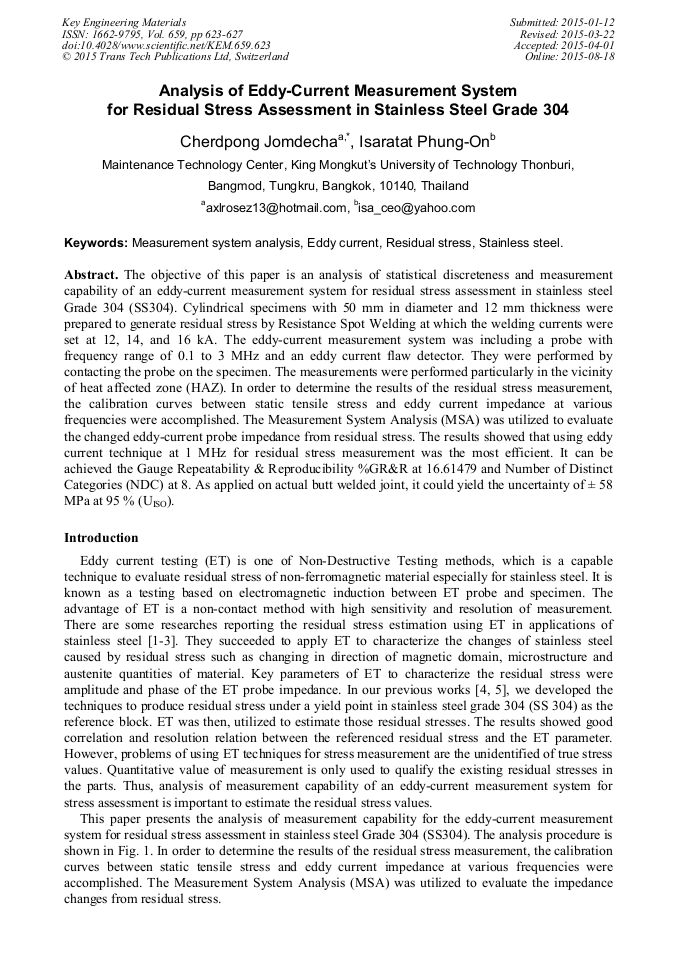

Analysis of Eddy-Current Measurement System for Residual Stress Assessment in Stainless Steel Grade 304

Abstract:

The objective of this paper is an analysis of statistical discreteness and measurement capability of an eddy-current measurement system for residual stress assessment in stainless steel Grade 304 (SS304). Cylindrical specimens with 50 mm in diameter and 12 mm thickness were prepared to generate residual stress by Resistance Spot Welding at which the welding currents were set at 12, 14, and 16 kA. The eddy-current measurement system was including a probe with frequency range of 0.1 to 3 MHz and an eddy current flaw detector. They were performed by contacting the probe on the specimen. The measurements were performed particularly in the vicinity of heat affected zone (HAZ). In order to determine the results of the residual stress measurement, the calibration curves between static tensile stress and eddy current impedance at various frequencies were accomplished. The Measurement System Analysis (MSA) was utilized to evaluate the changed eddy-current probe impedance from residual stress. The results showed that using eddy current technique at 1 MHz for residual stress measurement was the most efficient. It can be achieved the Gauge Repeatability & Reproducibility %GR&R at 16.61479 and Number of Distinct Categories (NDC) at 8. As applied on actual butt welded joint, it could yield the uncertainty of ± 58 MPa at 95 % (U_ISO).

• Periodical: Key Engineering Materials (Volume 659)
• Pages: 623-627
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.659.623
• Online since: August 2015
• Authors: Cherdpong Jomdecha*, Isaratat Phung-On
• Keywords: Eddy Current, Measurement System Analysis, Residual Stress, Stainless Steel

References

[1] L. Luming, Magnetic fields abnormality caused by welding residual stress, J. Magn. Magn. Mater of Magnetism and Magnetic Material, 263, (2003) 385-391.

DOI: 10.1016/s0304-8853(02)01488-9

[2] M. Zergoug, G. Kamel, N. Boucherou, Mechanical Stress Analysis By Eddy Current Method, J. Am. Sci., 8 (2003) 1-6.

[3] S.H. Khan, F. Ali, , N. Khan, M.A. Iqbal, Eddy Current Detection of Changes in Stainless Steel after Cold Reduction, Comput. Mater. Sci., 43 (2008) 623-628.

DOI: 10.1016/j.commatsci.2008.01.034

[4] I. Pueng-On, R. Sungworavit, and C. Jomdecha, A Study on Residual Stress Profile of Resistance Spot Welding in Stainless Steel Grade 304, International Conference on Material and Processing Technology (2013).

[5] R. Sungworavit, C. Jomdecha, I. Pueng-On, W. Lenwari, Eddy Current measurement for Residual Stress Estimation in Stainless Steel Grade 304, International Conference on Material and Processing Technology (2013).

[6] K. Ploypanichcharoen, Measurement System Analysis, second ed., Bangkok, (2014).

[7] ISO/IEC Guide 98-3, Evaluation of measurement data: Guide to the expression of uncertainty in measurement, (2008).
