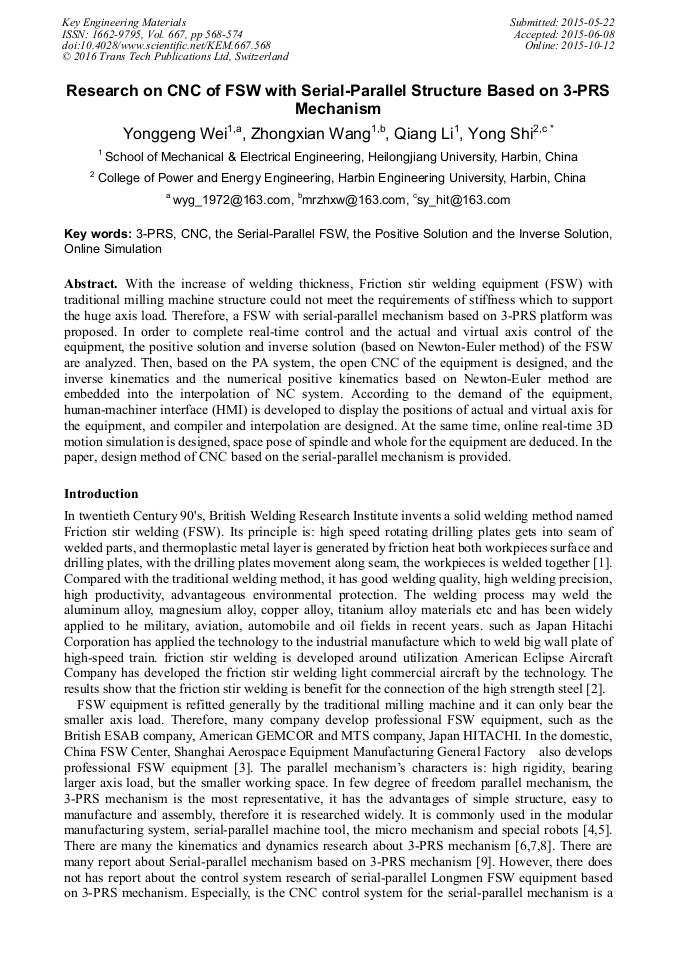

Research on CNC of FSW with Serial-Parallel Structure Based on 3-PRS Mechanism

Abstract:

With the increase of welding thickness, Friction stir welding equipment (FSW) with traditional milling machine structure could not meet the requirements of stiffness which to support the huge axis load. Therefore, a FSW with serial-parallel mechanism based on 3-PRS platform was proposed. In order to complete real-time control and the actual and virtual axis control of the equipment, the positive solution and inverse solution (based on Newton-Euler method) of the FSW are analyzed. Then, based on the PA system, the open CNC of the equipment is designed, and the inverse kinematics and the numerical positive kinematics based on Newton-Euler method are embedded into the interpolation of NC system. According to the demand of the equipment, human-machiner interface (HMI) is developed to display the positions of actual and virtual axis for the equipment, and compiler and interpolation are designed. At the same time, online real-time 3D motion simulation is designed, space pose of spindle and whole for the equipment are deduced. In the paper, design method of CNC based on the serial-parallel mechanism is provided.

• Periodical: Key Engineering Materials (Volume 667)
• Pages: 568-574
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.667.568
• Online since: October 2015
• Authors: Yong Geng Wei, Zhong Xian Wang, Qiang Li, Yong Shi
• Keywords: 3-PRS, CNC, Inverse Solution, Online Simulation, Positive Solution, Serial-Parallel FSW

References

[1] L.M. Hu, X.G. Lv and P.C. Guo. Chinese Journal of Mechanical Engineering, Vol. 43 (2007) No. 9, pp.225-228. (in Chinese).

[2] T.C. Zhang, D.L. Guo, Q.G. Chen and G.H. Luan. Chinese Journal of Mechanical Engineering, Vol. 38 (2002) No. 2, pp.127-131. (in Chinese).

[3] F.Q. Zhou, J.Y. Liao, Y.Y. Lin, X.X. Xu and L.J. Guo. Electirc Welding Machine, 2014, 44(4): 10-13. (in Chinese).

[4] P. Huang, J.S. Wang, L.P. Wang and L.W. Guan. Journal of Tsinghua University, Vol. 50 (2010) No. 11, pp.1811-1815. (in Chinese).

[5] J.Z. Guo, D. Wang, R. Fan and W.Y. Chen. Journal of Beijing University of Aeronautics and Astronautics, Vol. 40 (2014) No. 4, pp.500-506. (in Chinese).

[6] X. Mo, W.J. Chen and S.Y. Chen. Journal of Yangzhou University(Natural Science Edition), Vol. 12 (2009) No. 3, pp.57-61. (in Chinese).

[7] M.H. Fatehi, A.R. Vali, M. Eghtesad, A.A. Fatehi and J. Zarei. 2011 2nd International Conference on Control, Instrumentation and Automation (ICCIA), Vol. (2011) pp.929-934.

DOI: 10.1109/icciautom.2011.6356786

[8] P. Huang, J.S. Wang, L.P. Wang and J. Qian. CHINESE JOURNAL OF MECHANICAL ENGINEERING, Vol. 25 (2012) No. 2, pp.234-238. (in Chinese).

[9] C. Chen, Y.M. Huang, X. Han and X. Cheng. Transactions of the Chinese Society for Agricultural Machinery, Vol. 40 (2009) No. 9, pp.187-192. (in Chinese).
