Structure Optimization of the Aluminum Alloy Frames of Flight Simulator

Abstract:

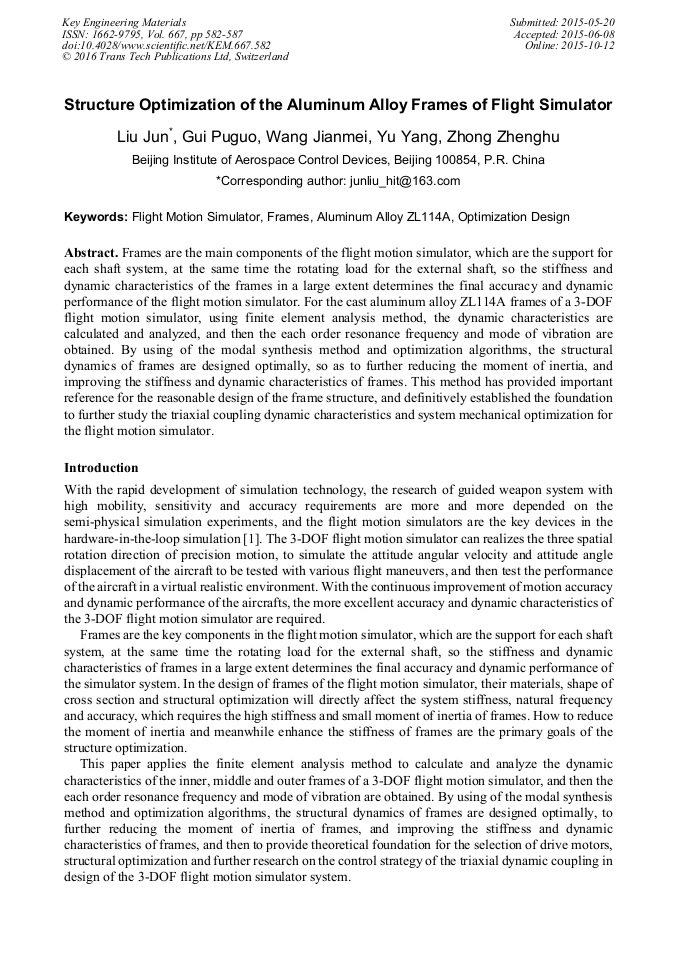

Frames are the main components of the flight motion simulator, which are the support for each shaft system, at the same time the rotating load for the external shaft, so the stiffness and dynamic characteristics of the frames in a large extent determines the final accuracy and dynamic performance of the flight motion simulator. For the cast aluminum alloy ZL114A frames of a 3-DOF flight motion simulator, using finite element analysis method, the dynamic characteristics are calculated and analyzed, and then the each order resonance frequency and mode of vibration are obtained. By using of the modal synthesis method and optimization algorithms, the structural dynamics of frames are designed optimally, so as to further reducing the moment of inertia, and improving the stiffness and dynamic characteristics of frames. This method has provided important reference for the reasonable design of the frame structure, and definitively established the foundation to further study the triaxial coupling dynamic characteristics and system mechanical optimization for the flight motion simulator.

You might also be interested in these eBooks

Advanced Engineering Materials and Processing Technologies

View Preview

Info:

Periodical:

Key Engineering Materials (Volume 667)

Pages:

582-587

DOI:

https://doi.org/10.4028/www.scientific.net/KEM.667.582

Citation:

Cite this paper

Online since:

October 2015

Authors:

Jun Liu*, Pu Guo Gui, Jian Mei Wang, Yang Yu, Zheng Hu Zhong

Keywords:

Aluminum Alloy ZL114A, Flight Motion Simulator, Frames, Optimization Design
