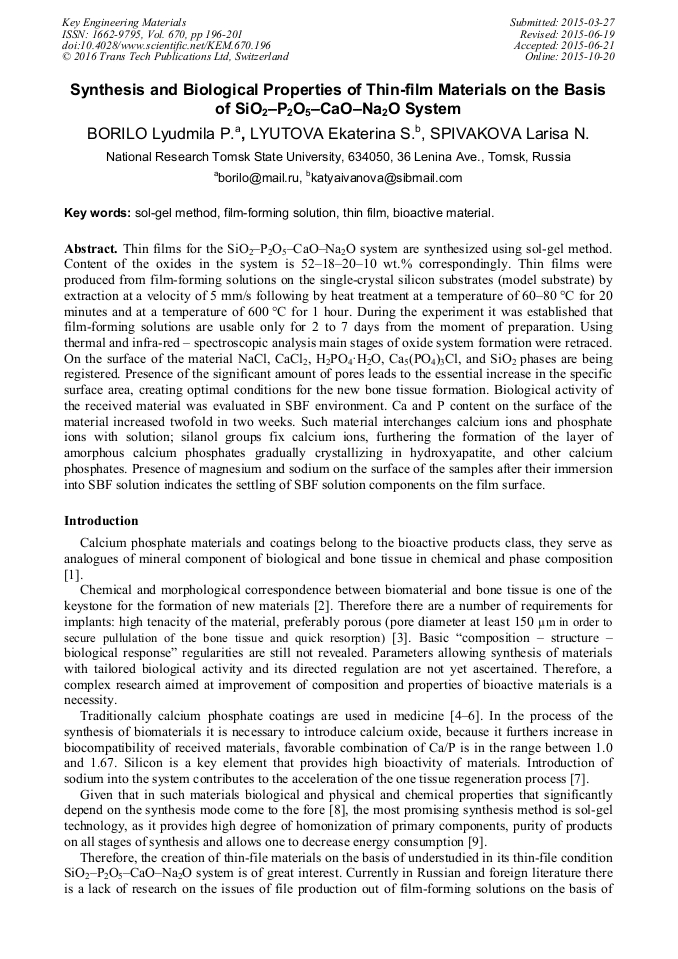

Synthesis and Biological Properties of Thin-Film Materials on the Basis of SiO₂–P₂O₅–СаO–Na₂O System

Abstract:

Thin films for the SiO₂–P₂O₅–CaO–Na₂O system are synthesized using sol-gel method. Content of the oxides in the system is 52-18-20-10 wt.% correspondingly. Thin films were produced from film-forming solutions on the single-crystal silicon substrates (model substrate) by extraction at a velocity of 5 mm/s following by heat treatment at a temperature of 60-80 °С for 20 minutes and at a temperature of 600 °С for 1 hour. During the experiment it was established that film-forming solutions are usable only for 2 to 7 days from the moment of preparation. Using thermal and infra-red – spectroscopic analysis main stages of oxide system formation were retraced. On the surface of the material NaCl, CaCl₂, H₂PO₄·H₂O, Ca₅(PO₄)₃Cl, and SiO₂ phases are being registered. Presence of the significant amount of pores leads to the essential increase in the specific surface area, creating optimal conditions for the new bone tissue formation. Biological activity of the received material was evaluated in SBF environment. Ca and P content on the surface of the material increased twofold in two weeks. Such material interchanges calcium ions and phosphate ions with solution; silanol groups fix calcium ions, furthering the formation of the layer of amorphous calcium phosphates gradually crystallizing in hydroxyapatite, and other calcium phosphates. Presence of magnesium and sodium on the surface of the samples after their immersion into SBF solution indicates the settling of SBF solution components on the film surface.

• Periodical: Key Engineering Materials (Volume 670)
• Pages: 196-201
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.670.196
• Online since: October 2015
• Authors: Lyudmila P. Borilo, Ekaterina S. Lyutova, Larisa N. Spivakova
• Keywords: Bioactive Material, Film-Forming Solution, Sol-Gel Method, Thin Film

References

[1] H. Li, J. Chang. Stimulation of proangiogenesis by calcium silicate bioactive ceramic. Acta Biomaterialia 9. (2013) 5379-5389.

DOI: 10.1016/j.actbio.2012.10.019

[2] E. Nilsen, J. Puputti. Sol-Gel Derived Binder for Inorganic Composites. Journal of Sol-Gel Science and Technology. 26 (2003) 1239-1242.

DOI: 10.1023/a:1020780823598

[3] R.L. Siqueira, O. Peitl, E.D. Zanotto. Gel-derived SiO2–CaO–Na2O–P2O5 bioactive powders: Synthesis and in vitro bioactivity. Materials Science and Engineering. 31 (2011) 983-991.

DOI: 10.1016/j.msec.2011.02.018

[4] M.M. Pereira, A.E. Clark. L.L. Hench. Homogeneity of bioactive sol–gel derived glasses in the system CaO–P2O5–SiO2. J. Material Synthesis Proceedings. 2 (1994) 189-196.

[5] Zhang J, Liu W, Schnitzler V, Tancret F. Calcium phosphate cements for bone substitution: Chemistry, handling and mechanical properties. Acta Biomaterialia. 10 (2014) 1035-1039.

DOI: 10.1016/j.actbio.2013.11.001

[6] M. Jokinen, H. Rahial. Relation between aggregation and heterogeneity of obtained structure in sol-gel derived CaO – P2O5 – SiO2. Journal of Sol-Gel Science and Technology. (1998) 159-167.

[7] H. Li, J. Chang. Stimulation of proangiogenesis by calcium silicate bioactive ceramic. Acta Biomaterialia. 9 (2013) 5379-5389.

DOI: 10.1016/j.actbio.2012.10.019

[8] D. Arcos, M. Vallet-Regi. Sol-gel silica-based biomaterials and bone tissue regeneration. Acta Biomaterialia. (2010) 1-13.

DOI: 10.1016/j.actbio.2010.02.012

[9] Suslova E.V., Turova N. Ya. Оn the interaction of tetraethoxosilane with metal alkoxides: sol-gel synthesis of alkaline-earth metal silicates. Glass аnd сeramics. 12 (2006) 1846-1854.

DOI: 10.1134/s0036023606120023

[10] T. Kokubo, H. Kushitani, S. Sakka. Solutions able to reproduce in vivo surface – structure changes in bioactive glass – ceramic. Biomaterials. 24 (1990) 721-734.

DOI: 10.1002/jbm.820240607

[11] E. Champion. Sintering of CaP bioceramics. Acta Biomaterialia. 9 (2013) 5379-5389.

[12] L.P. Borilo, T.S. Petrovskaya, E.S. Lyutova. Synthesis and properties of thin SiO2–P2O5–CaO films. Inorganic Materials. 8 (2014) 810-816.

DOI: 10.1134/s0020168514080056

[13] B. Lei, X. Chen, Y. Wang, N. Zhao, C. Du, L. Fang. Synthesis and bioactive properties of macroporous nanoscale SiO2–CaO–P2O5 bioactive glass. J. of Non-Crystalline Solids. 355 (2009) 2678-2681.

DOI: 10.1016/j.jnoncrysol.2009.09.029

[14] L. L. Hench. Bioceramics: From Concept to Clinic. Journal of the American Ceramic Society. 74 (1991) 1487-1510.

DOI: 10.1111/j.1151-2916.1991.tb07132.x
