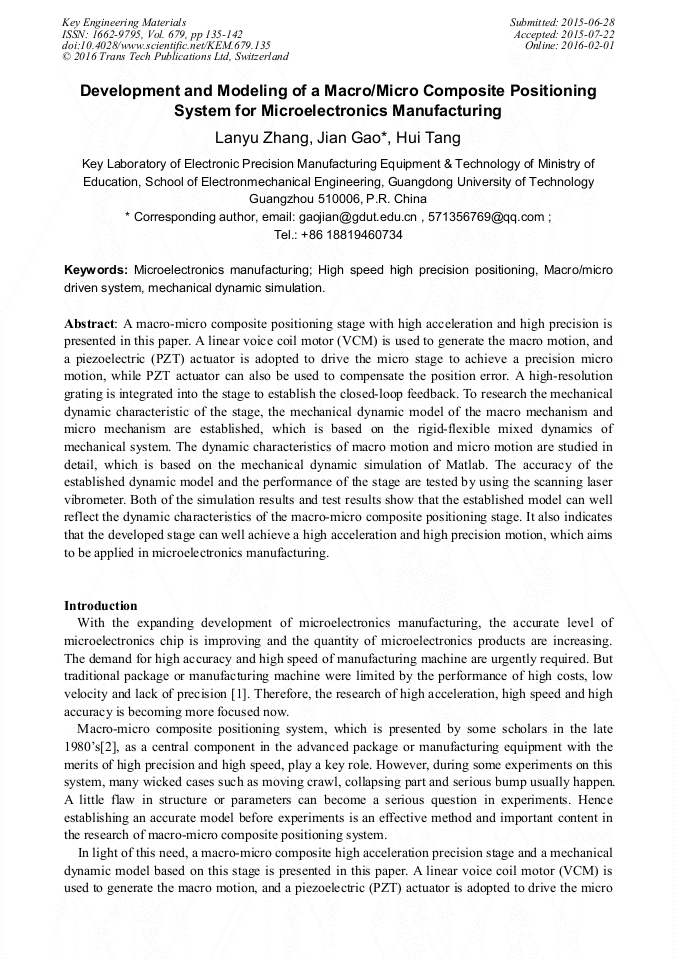

Development and Modeling of a Macro/Micro Composite Positioning System for Microelectronics Manufacturing

Abstract:

A macro-micro composite positioning stage with high acceleration and high precision is presented in this paper. A linear voice coil motor (VCM) is used to generate the macro motion, and a piezoelectric (PZT) actuator is adopted to drive the micro stage to achieve a precision micro motion, while PZT actuator can also be used to compensate the position error. A high-resolution grating is integrated into the stage to establish the closed-loop feedback. To research the mechanical dynamic characteristic of the stage, the mechanical dynamic model of the macro mechanism and micro mechanism are established, which is based on the rigid-flexible mixed dynamics of mechanical system. The dynamic characteristics of macro motion and micro motion are studied in detail, which is based on the mechanical dynamic simulation of Matlab. The accuracy of the established dynamic model and the performance of the stage are tested by using the scanning laser vibrometer. Both of the simulation results and test results show that the established model can well reflect the dynamic characteristics of the macro-micro composite positioning stage. It also indicates that the developed stage can well achieve a high acceleration and high precision motion, which aims to be applied in microelectronics manufacturing.

• Periodical: Key Engineering Materials (Volume 679)
• Pages: 135-142
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.679.135
• Online since: February 2016
• Authors: Lan Yu Zhang, Jian Gao*, Hui Tang
• Keywords: High Speed High Precision Positioning, Macro/Micro Driven System, Mechanical Dynamic Simulation, Microelectronics Manufacturing

References

[1] K. Sangjoo, K.C. Wan, Y. Youngil Y, On the Coarse/Fine Dual-stage Manipulators with Perturbation Compensator, Proceedings of the 2001 IEEE International Conference on Robotics &Automation, Seoul, Korea, May (2001).

DOI: 10.1109/robot.2001.932540

[2] D.G. Jie, Y.J. Liu, L.N. Sun, et al, Modeling and Control of a Macro-micro Dual Drive Ultra Precision Positioning Mechanism, Optics and Precision Engineering, Vol. 13, No. 2 (2005)171-178.

[3] D.G. Jie, L.N. Sun, et al, Fuzzy-reasoning Based Self-tuning PID Control for Piezoelectric Micro-displacement System, Journal of Harbin Institute of Technology, Vol. 37, No. 2 (2005)145-147.

[4] D.G. Jie, L.N. Sun, Y.J. Liu, et al, Design and Simulation of a Macro-micro Dual-drive High Acceleration Precision XY-stage for IC Bonding Tecnology, Proceedings of the IEEE/ICEPT 6th International Conference on Electronics Packaging Technology. Shenzhen, China, Spetember (2005).

DOI: 10.1109/icept.2005.1564689

[5] J. Gao, G.C. Tan, Macro/Micro High Speed Precision Platform Based on Piezoelectric, Chinese Patent CN203269552U (2013).

[6] X.M. Jiang, X.L. Chen, Dual Loop Iterative Learning Control for Macro-micro Driving Systems, Published Of Control Conference (CCC), Nanjing, China, July (2014).

DOI: 10.1109/chicc.2014.6896309

[7] C.Y. Lin, P.Y. Chen, Precision Motion Control of a Nano Stage Using Repetitive Control and Double-Feedforward Compensation, SICE Annual Conference. Taipei, Taiwan, August (2010).
