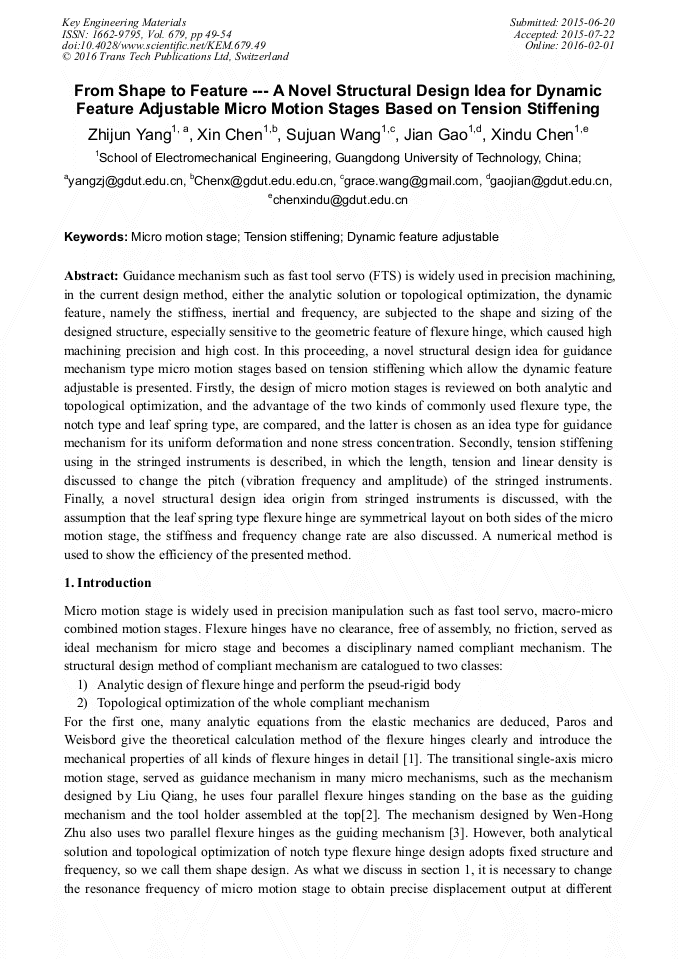

From Shape to Feature - A Novel Structural Design Idea for Dynamic Feature Adjustable Micro Motion Stages Based on Tension Stiffening
Abstract:
Guidance mechanism such as fast tool servo (FTS) is widely used in precision machining, in the current design method, either the analytic solution or topological optimization, the dynamic feature, namely the stiffness, inertial and frequency, are subjected to the shape and sizing of the designed structure, especially sensitive to the geometric feature of flexure hinge, which caused high machining precision and high cost. In this proceeding, a novel structural design idea for guidance mechanism type micro motion stages based on tension stiffening which allow the dynamic feature adjustable is presented. Firstly, the design of micro motion stages is reviewed on both analytic and topological optimization, and the advantage of the two kinds of commonly used flexure type, the notch type and leaf spring type, are compared, and the latter is chosen as an idea type for guidance mechanism for its uniform deformation and none stress concentration. Secondly, tension stiffening using in the stringed instruments is described, in which the length, tension and linear density is discussed to change the pitch (vibration frequency and amplitude) of the stringed instruments. Finally, a novel structural design idea origin from stringed instruments is discussed, with the assumption that the leaf spring type flexure hinge are symmetrical layout on both sides of the micro motion stage, the stiffness and frequency change rate are also discussed. A numerical method is used to show the efficiency of the presented method.
Info:
Periodical:
Pages:
49-54
Citation:
Online since:
February 2016
Authors:
Price:
Сopyright:
© 2016 Trans Tech Publications Ltd. All Rights Reserved
