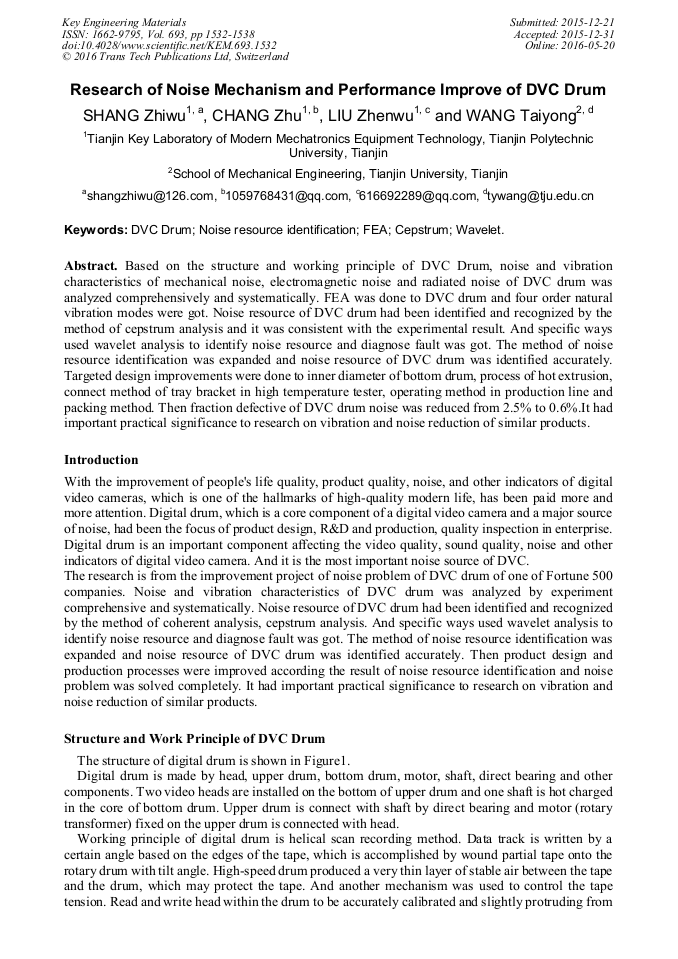

Research of Noise Mechanism and Performance Improve of DVC Drum

Abstract:

Based on the structure and working principle of DVC Drum, noise and vibration characteristics of mechanical noise, electromagnetic noise and radiated noise of DVC drum was analyzed comprehensively and systematically. FEA was done to DVC drum and four order natural vibration modes were got. Noise resource of DVC drum had been identified and recognized by the method of cepstrum analysis and it was consistent with the experimental result. And specific ways used wavelet analysis to identify noise resource and diagnose fault was got. The method of noise resource identification was expanded and noise resource of DVC drum was identified accurately. Targeted design improvements were done to inner diameter of bottom drum, process of hot extrusion, connect method of tray bracket in high temperature tester, operating method in production line and packing method. Then fraction defective of DVC drum noise was reduced from 2.5% to 0.6%.It had important practical significance to research on vibration and noise reduction of similar products.

• Periodical: Key Engineering Materials (Volume 693)
• Pages: 1532-1538
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.693.1532
• Online since: May 2016
• Authors: Zhi Wu Shang*, Zhu Chang, Zhen Wu Liu, Wang Tai Yong
• Keywords: Cepstrum, DVC Drum, FEA, Noise Resource Identification, Wavelet

References

[1] MA Da-you, Science of noise control, 2nd ed., Beijing, (1987).

[2] FANG Dan-qun, Noise control, 1st ed., Beijing, (1986).

[3] HUANG Qi-bo, Science of noise control in engineering, 1st ed., Wuhan, (1999).

[4] WANG Tai-yong, Test analysis and technique of noise reduction of mechanical noise, 1st ed., Beijing, (1995).

[5] SHANG Zhi-wu, WAN Shu-min, WANG Tai-yong, Research and application of structure test analysis system based high-speed data acquisition and real-time signal analysis, Instrumentation, 2001, 22(4) 300-301.

[6] SHANG Zhi-wu, WANG Tai-yong, WU Zhen-yong, REN Cheng-zu, WAN Shu-min, Acoustic characteristic analysis and improvement of muffler of compressor, Acta Metrologica Sinica, 2003. (1) 133-136.

[7] Yardibi T, Bahr C, Zawodny N, Uncertainty analysis of the standard delay-and-sum beamformer and array calibration, Journal of Sound and Vibration, 2010, 329(13) 2654-2682.

DOI: 10.1016/j.jsv.2010.01.014

[8] YANG Yang, MIN Ni-ji, GANG Chu-zhi, noise source identification of an engine based on cross-spectra imaging function beamforming, Chinese Internal Combusion Engine Engineering, 2012, 33(3) 82-87.

[9] LU Xi, YANG Cheng, Identifying Research on Noise Sources of Rotary Vane Compressor, Journal of Chongqing University, 2006, 29(8) 70-73.

[10] CHEN Xin-zhao, Progress of techniques for noise resource identification, Journal of Hefei University, 2009, 32(5) 609-614.
