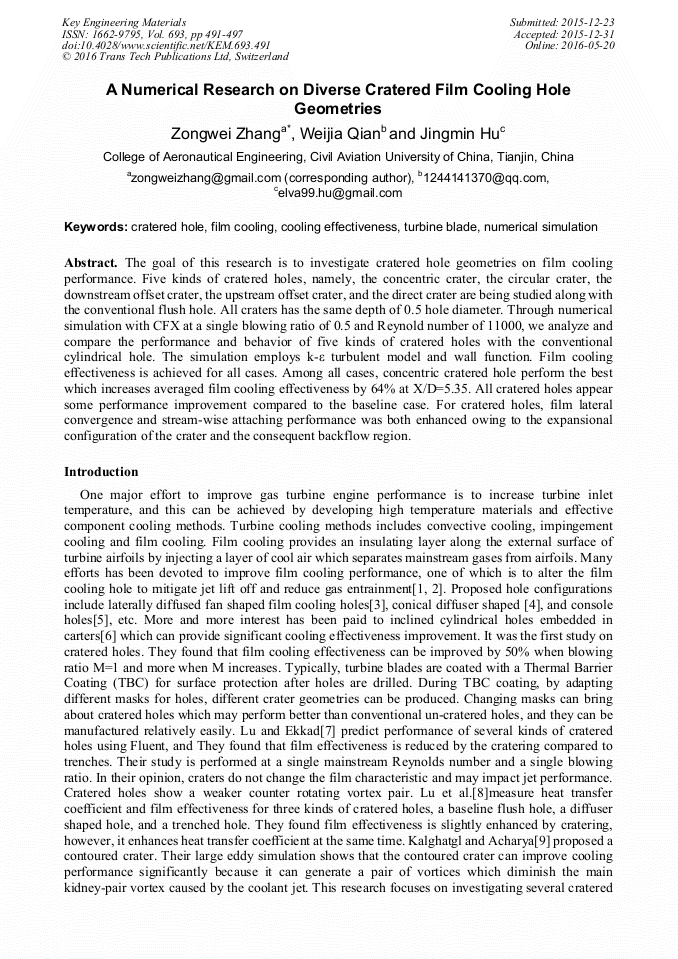

A Numerical Research on Diverse Cratered Film Cooling Hole Geometries

Abstract:

The goal of this research is to investigate cratered hole geometries on film cooling performance. Five kinds of cratered holes, namely, the concentric crater, the circular crater, the downstream offset crater, the upstream offset crater, and the direct crater are being studied along with the conventional flush hole. All craters has the same depth of 0.5 hole diameter. Through numerical simulation with CFX at a single blowing ratio of 0.5 and Reynold number of 11000, we analyze and compare the performance and behavior of five kinds of cratered holes with the conventional cylindrical hole. The simulation employs k-ε turbulent model and wall function. Film cooling effectiveness is achieved for all cases. Among all cases, concentric cratered hole perform the best which increases averaged film cooling effectiveness by 64% at X/D=5.35. All cratered holes appear some performance improvement compared to the baseline case. For cratered holes, film lateral convergence and stream-wise attaching performance was both enhanced owing to the expansional configuration of the crater and the consequent backflow region.

• Periodical: Key Engineering Materials (Volume 693)
• Pages: 491-497
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.693.491
• Online since: May 2016
• Authors: Zong Wei Zhang*, Wei Jia Qian, Jing Min Hu
• Keywords: Cooling Effectiveness, Cratered Hole, Film Cooling, Numerical Simulation, Turbine Blade

References

[1] Bunker, R.S., A review of shaped hole turbine film-cooling technology. Journal of Heat Transfer, 2005. 127(4): pp.441-453.

DOI: 10.1115/1.1860562

[2] Ekkad, S. and J. Han. A Review of Hole Geometry and Coolant Density Effect on Film Cooling. 2013: ASME.

[3] Goldstein, R.J., E.R.G. Eckert and F. Burggraf, Effects of hole geometry and density on three-dimensional film cooling. International Journal of Heat and Mass Transfer, 1974. 17(5): p.595–607.

DOI: 10.1016/0017-9310(74)90007-6

[4] Haven, B.A., et al., Anti-kidney pair of vortices in shaped holes and their influence on film cooling effectiveness. 1997, American Society of Mechanical Engineers. p. V003T09A007-V003T09A007.

[5] Sargison, J.E., et al., A converging slot-hole film-cooling geometry—part 1: low-speed flat-plate heat transfer and loss. Journal of Turbomachinery, 2002. 124(3): pp.453-460.

DOI: 10.1115/1.1459735

[6] Bunker, R.S., et al., Method for improving the cooling effectiveness of a gaseous coolant stream, and related articles of manufacture. 2001, General Electric Company.

[7] Lu, Y. and S.V. Ekkad, Film Cooling Predictions for Cratered Cylindrical Inclined Holes. ASME Conference Proceedings, 2006. 2006(47853): pp.451-457.

DOI: 10.1115/imece2006-14406

[8] Lu, Y., et al., Film Cooling Measurements for Novel Hole Configurations. Journal of Heat Transfer, 2006. 128(8): pp.737-737.

DOI: 10.1115/1.2221300

[9] Kalghatgi, P. and S. Acharya, Improved Film Cooling Effectiveness With a Round Film Cooling Hole Embedded in a Contoured Crater. 2014, American Society of Mechanical Engineers. p. V05BT13A049-V05BT13A049.

DOI: 10.1115/gt2014-26600
