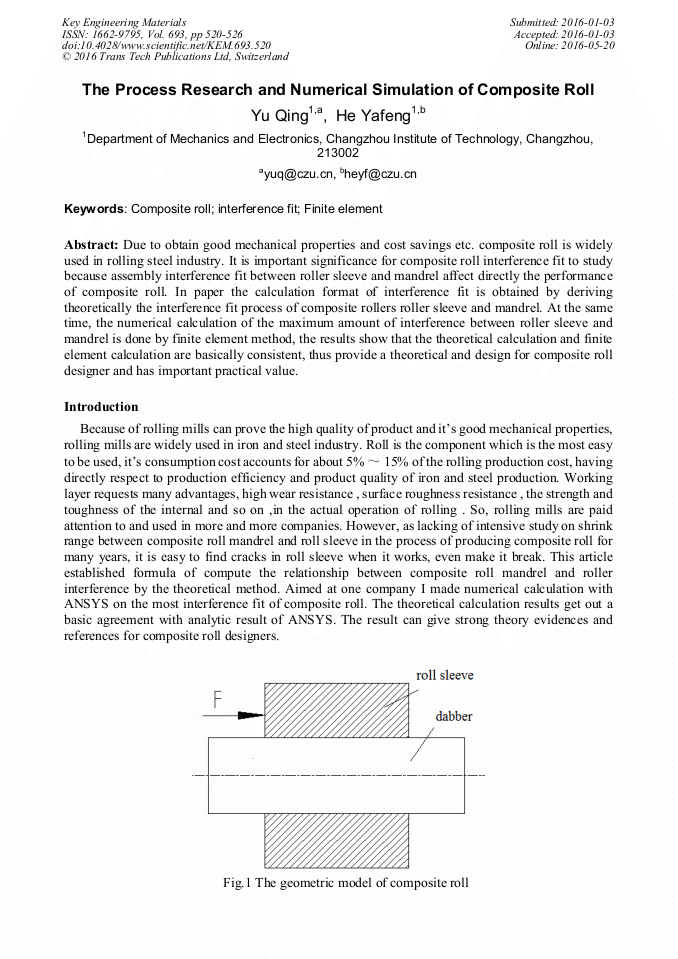

The Process Research and Numerical Simulation of Composite Roll

Abstract:

Due to obtain good mechanical properties and cost savings etc. composite roll is widely used in rolling steel industry. It is important significance for composite roll interference fit to study because assembly interference fit between roller sleeve and mandrel affect directly the performance of composite roll. In paper the calculation format of interference fit is obtained by deriving theoretically the interference fit process of composite rollers roller sleeve and mandrel. At the same time, the numerical calculation of the maximum amount of interference between roller sleeve and mandrel is done by finite element method, the results show that the theoretical calculation and finite element calculation are basically consistent, thus provide a theoretical and design for composite roll designer and has important practical value.

• Periodical: Key Engineering Materials (Volume 693)
• Pages: 520-526
• DOI: https://doi.org/10.4028/www.scientific.net/KEM.693.520
• Online since: May 2016
• Authors: Qing Yu*, Ya Feng He
• Keywords: Composite Roll, Finite Element, Interference Fit

References

[1] Fu Hanguang, Xing Jiandong. High speed steel roll manufacturing technology [M]. Beijing: Metallurgical Industry Press, (2007).

[2] Shu Zhaohui, Tang Weilin, Fei Xiaoping. Stress analysis and optimal design of shrink range on universal rolling H steel composite sleeved roller. Metallurgical equipment, 1995, 89(1): 11~15.
